ELECTRICAL

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

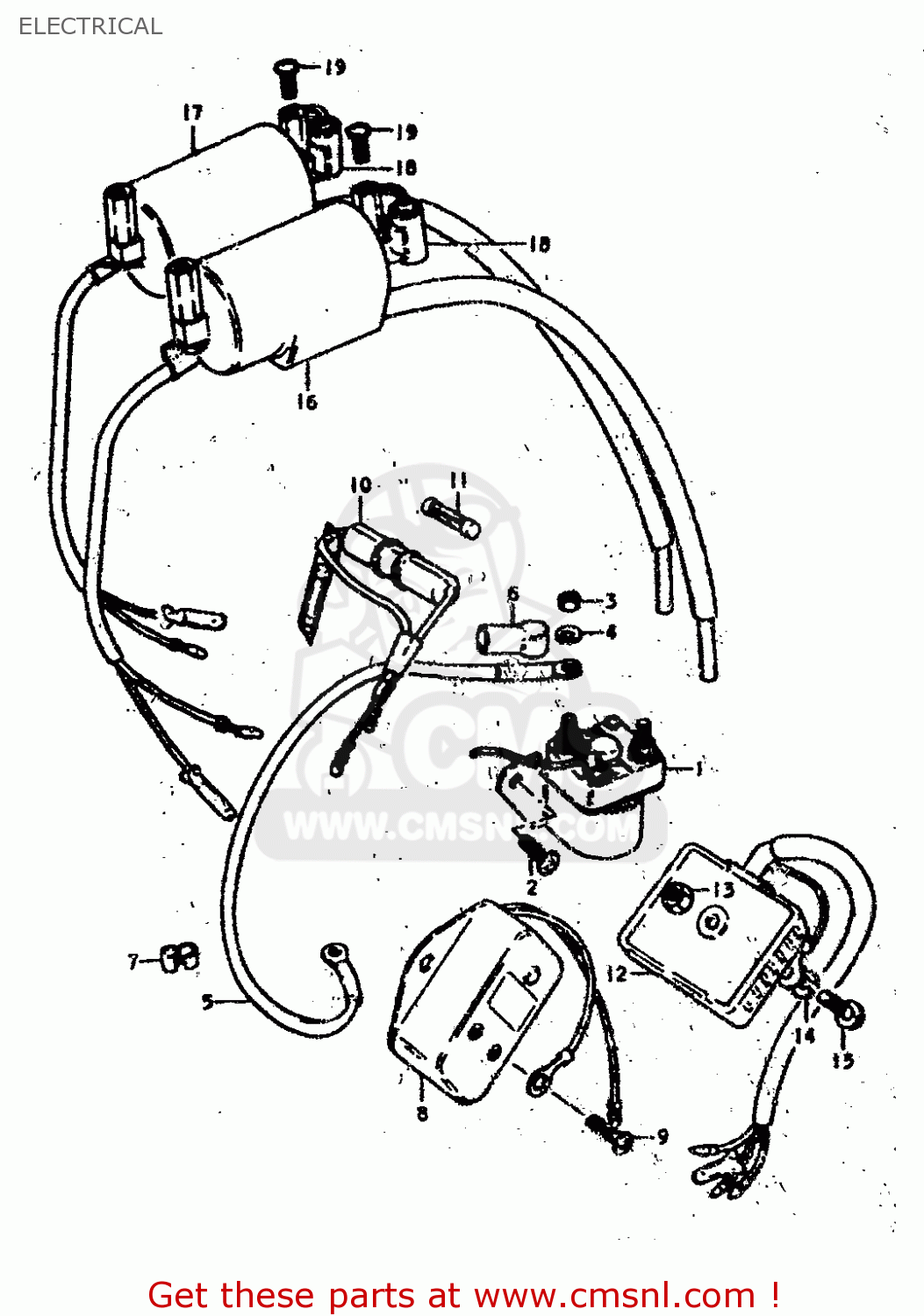

Electrical diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

ELECTRICAL GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
ELECTRICAL GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
ELECTRICAL GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385047010
ref: 5
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
0940800002
ref: 7
CLIP
0940800002
€ 2.00
8
3250045011
ref: 8
ND
REGULATOR ASSEMBLY
3250045011
€ 952.00
9
0211206108
ref: 9
SCREW
0211206108
€ 1.50
10
3674015010
ref: 10
BOX ASSEMBLY,FUSE
3674015010
€ 11.00
11
0948115001
ref: 11
15A
FUSE(15A)
0948115001
€ 3.00
12
3280044010
ref: 12
RECTIFIER ASSY
3280044010
€ 269.00
13
0831011068
ref: 13
NUT
0831011068
€ 2.50
14
0832121068
ref: 14
LOCK WASHER
0832121068
€ 2.50
15
0211206258
ref: 15
SCREW
€ 2.00
16
3341044020
ref: 16
KOKUSAN
COIL ASSEMBLY,IGNITION
3341044020
€ 279.00
17
3342044020
ref: 17
KOKUSAN
COIL ASSEMBLY,IGNITION
3342044020
€ 279.00
18
3342144020
ref: 18
CONDENSER
3342144020
€ 78.50
19
0211205108
ref: 19
SCREW
0211205108
€ 2.00
