OIL PUMP

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

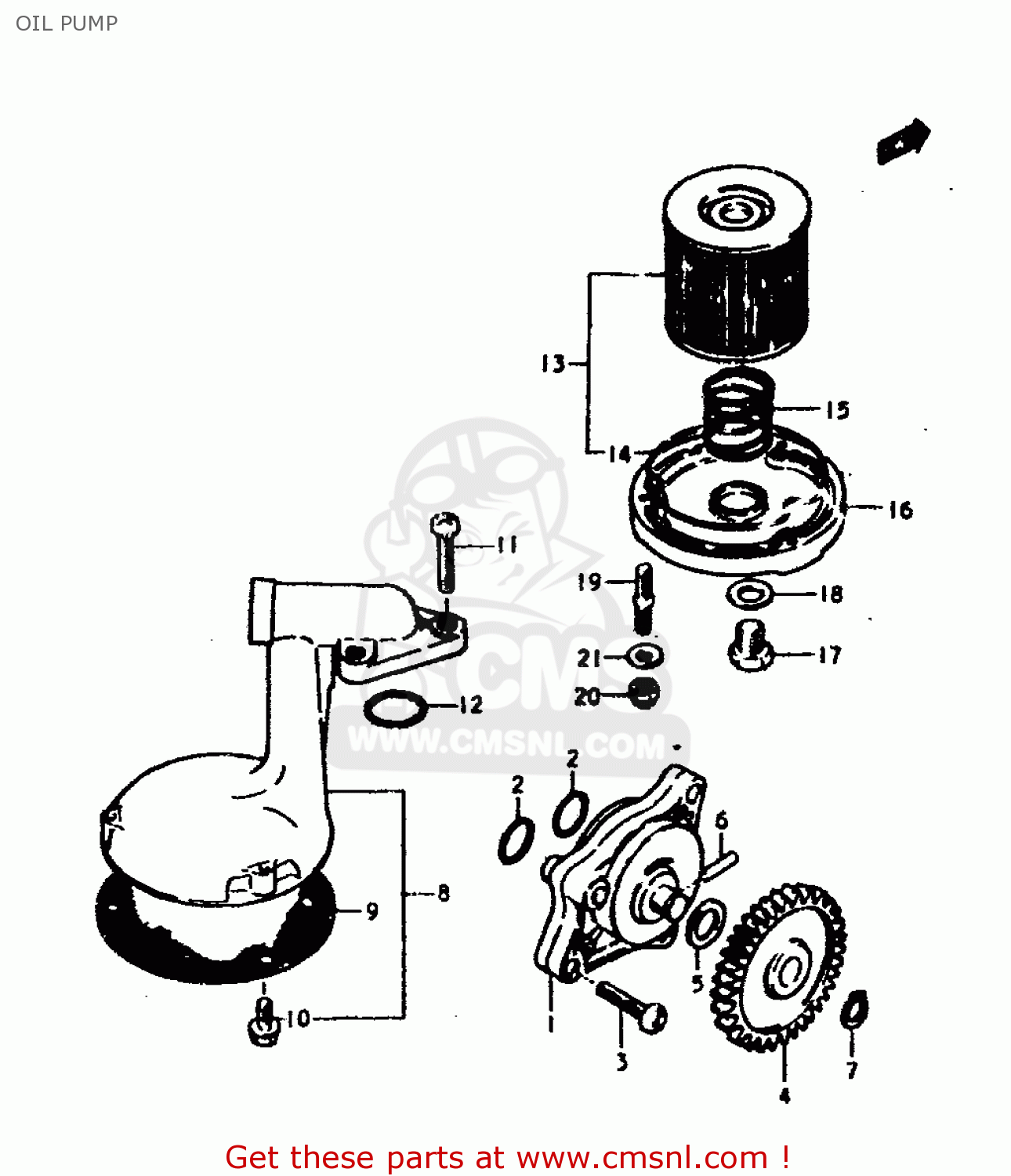

Oil pump diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

OIL PUMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
OIL PUMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
OIL PUMP GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1640045011
ref: 1-1
TO 16400-45013
PUMP ASSEMBLY,OIL
€ 185.00
2
0928013004
ref: 2
O RING(D:1.9,ID:13)
0928013004
€ 2.50
3
0211206258
ref: 3
SCREW
€ 2.00
4
1633144000
ref: 4
NT:29
GEAR,OIL PUMP DRIVEN
1633144000
€ 34.00
5
0822110185
ref: 5
SHIM
0822110185
€ 2.00
6
0926104009
ref: 6
PIN(4X15.8)
0926104009
€ 1.50
7
0833131109
ref: 7
CIRCLIP
0833131109
€ 2.00
8
1652044000
ref: 8
STRAINER,ENGINE OIL
€ 0.00
9
1652244001
ref: 9
NET
1652244001
€ 6.50
10
0151706108
ref: 10
BOLT
0151706108
€ 2.50
11
0211206208
ref: 11
SCREW
€ 2.00
12
0928016005
ref: 12
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
13
1650045810
ref: 13
ENGINE OIL FILTER SET
€ 11.50
14
1651845000
ref: 14
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
15
0944032004
ref: 15
SPRING
0944032004
€ 13.50
16-1
1651245000
ref: 16-1
TO 16512-45001
CAP,OIL FILTER
1651245000
€ 37.50
17
0924710001
ref: 17
PLUG
0924710001
€ 3.00
18
0916810002
ref: 18
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
19
0142106208
ref: 19
STUD 6X20
0142106208
€ 2.50
20
0831311068
ref: 20
NUT
0831311068
€ 2.00
21
0832221068
ref: 21
WASHER
0832221068
€ 2.00
