OPTIONAL

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

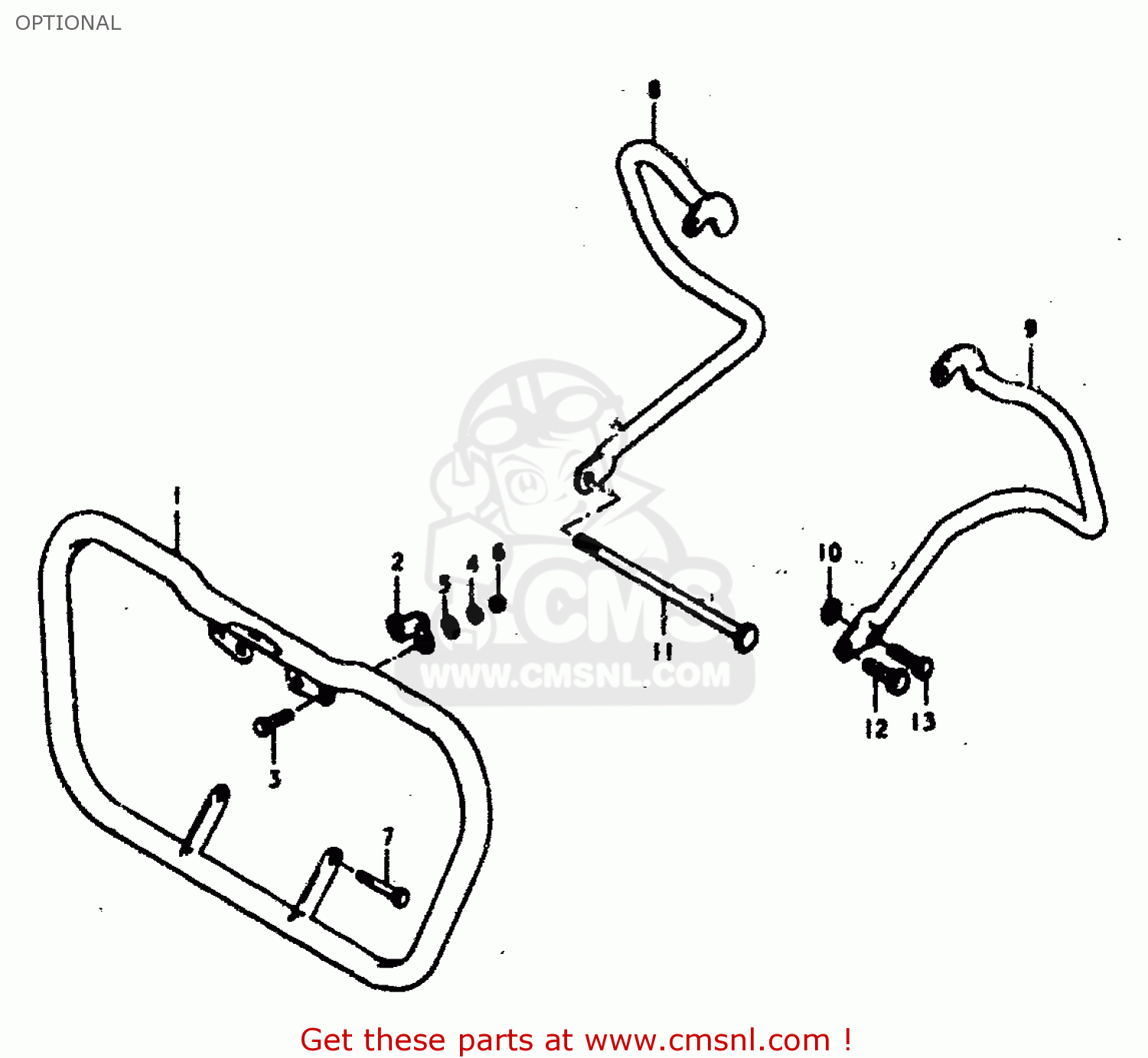

Optional diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

9421044000
ref: 1

BUMPER,FRONT

€ 0.00

9423133700
ref: 2

PLATE, UPPER

€ 11.50

0110708258
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

0832211088
ref: 5

WASHER

€ 2.00

0831012088
ref: 6

NUT

€ 2.00

0110708658
ref: 7

BOLT

€ 3.00

9481044900
ref: 8

BUMPER,REAR SIDE RH

€ 0.00

9482044900
ref: 9

BUMPER,REAR SIDE LH

€ 0.00

0832221088
ref: 10

WASHER

€ 2.00

11-1

6121144900
ref: 11-1
TO 61211-44901

SHAFT,REAR SWING ARM

€ 0.00

0910410004
ref: 12

BOLT(10X45)

€ 0.00

0110708458
ref: 13

BOLT 8X45

€ 2.50
