FRONT WHEEL (GS400C,N)

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

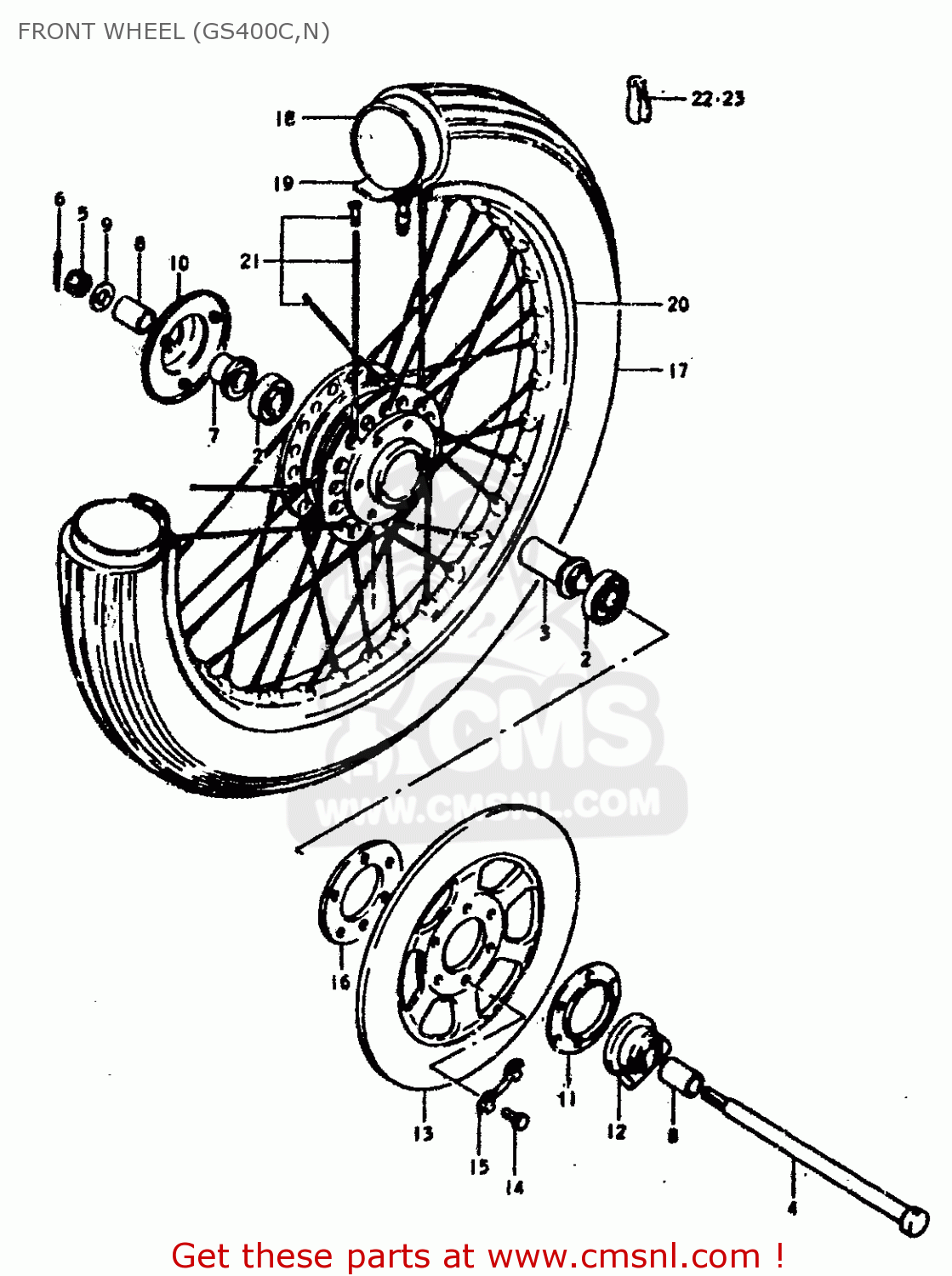

Front wheel (gs400c,n) diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

FRONT WHEEL (GS400C,N) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
FRONT WHEEL (GS400C,N) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
FRONT WHEEL (GS400C,N) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5411147000
ref: 1-1
TO 54111-47001
HUB,FRONT WHEEL
€ 194.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471133002
ref: 4
AXLE,FRONT
5471133002
€ 41.00
5
0831431128
ref: 5
NUT 12MM
0831431128
€ 2.00
6
0411130308
ref: 6
COTTER PIN
0411130308
€ 1.50
7-1
5474018401
ref: 7-1
TO 54740-18402
SPACER,FRONT AXLE,RIGHT
5474018401
€ 18.50
8
0918015034
ref: 8
15X22X30
SPACER(15X22X30)
0918015034
€ 7.00
9
0832221128
ref: 9
WASHER
0832221128
€ 2.00
10
5487145000
ref: 10
COVER,FR HUB,R
5487145000
€ 6.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
12
5460018402
ref: 12
BOX ASSY,SPEEDOMETER GEAR
5460018402
€ 90.50
13
5921144000
ref: 13
TO 59211-44001
DISC,REAR BRAKE
5921144000
€ 250.50
14
0910008140
ref: 14
BOLT(8X25)
0910008140
€ 2.00
15
0916908016
ref: 15
WASHER
0916908016
€ 3.50
16
5921445000
ref: 16
SHIM,BRAKE DISC
€ 0.00
17-1
5510044010
ref: 17-1
3.00S18,1RC
TIRE,FRONT
€ 123.00
17-2
5510044030
ref: 17-2
3.00S18,BS
TIRE,FRONT
€ 123.00
18
5520011601
ref: 18
3.00-18
TUBE,INNER
€ 24.50
19
5526111010
ref: 19
22X18
PROTECTOR,INNER TUBE
5526111010
€ 3.50
20
5531118420
ref: 20
1.60AX18
RIM,FR WHEEL
5531118420
€ 98.50
21
5532018420
ref: 21
FROM 55300-18819
SPOKE ASSY,FR WHEEL
5532018420
€ 42.00
22
5541111000
ref: 22
20G
BALANCER,WHEEL (B)
€ 4.50
23
5541211000
ref: 23
30G
BALANCER,WHEEL (30G)
5541211000
€ 8.00
