BATTERY

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

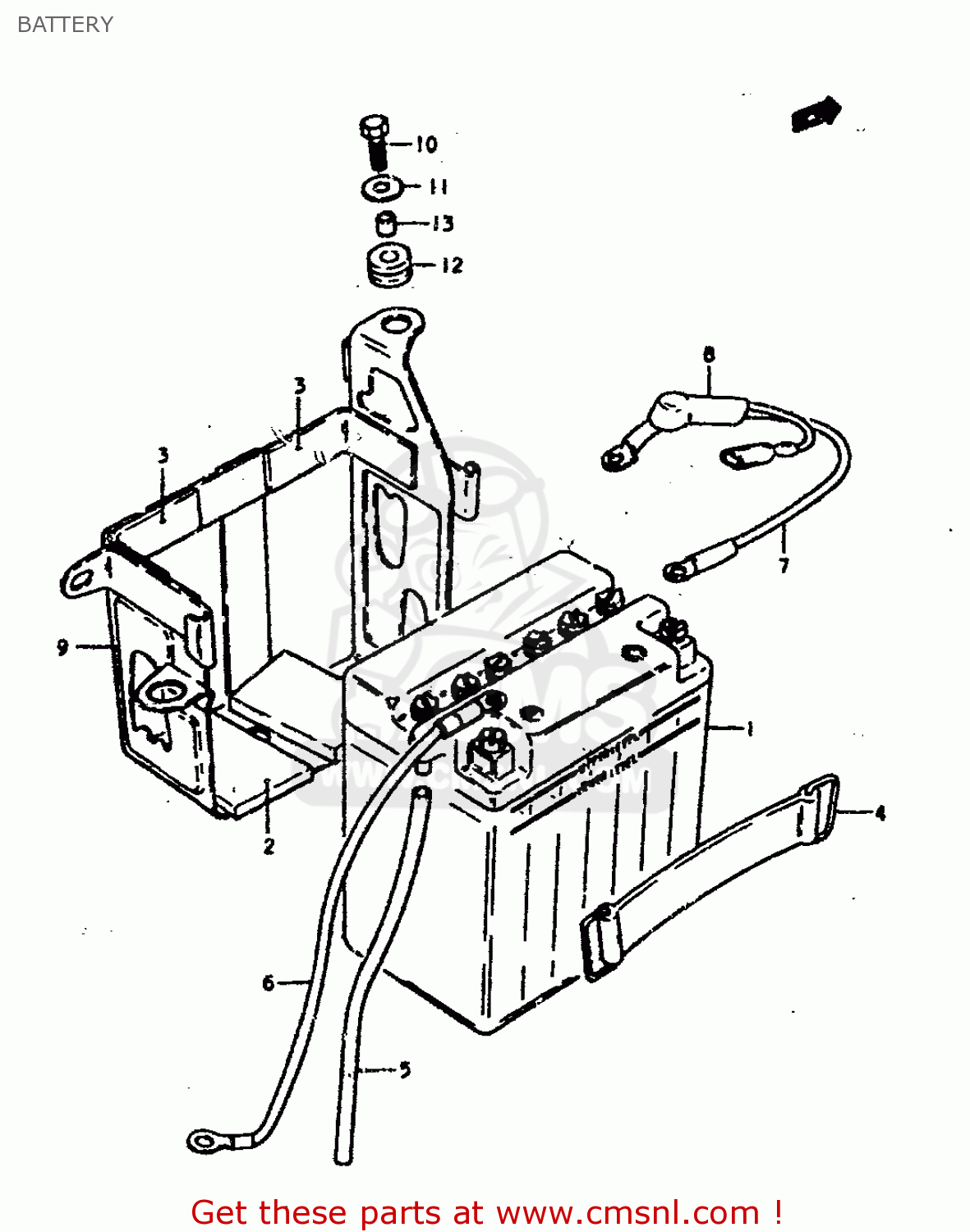

Battery diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

3361044010
ref: 1
12V,12AH

BATTERY ASSY (12V)

€ 74.50

3365125001
ref: 2

CUSHION,BATTERY

€ 4.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0946200007
ref: 4

BAND

€ 5.00

3368031003
ref: 5

HOSE,BATTERY EXHAUST

€ 4.50

3385044000
ref: 6

CORD,BATTERY MINUS

€ 13.50

3382008200
ref: 7

WARE,BATTERY PLUS

€ 11.50

3362445000
ref: 8

CAP,TERMINAL

€ 5.50

4154044001
ref: 9

HOLDER,BATTERY

€ 0.00

0110706208
ref: 10

BOLT

€ 2.00

0916006007
ref: 11

WASHER

€ 2.00

0932008001
ref: 12

CUSHION

€ 3.50

0918006011
ref: 13

SPACER (6.1X9X9)

€ 2.00
