REAR FENDER

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

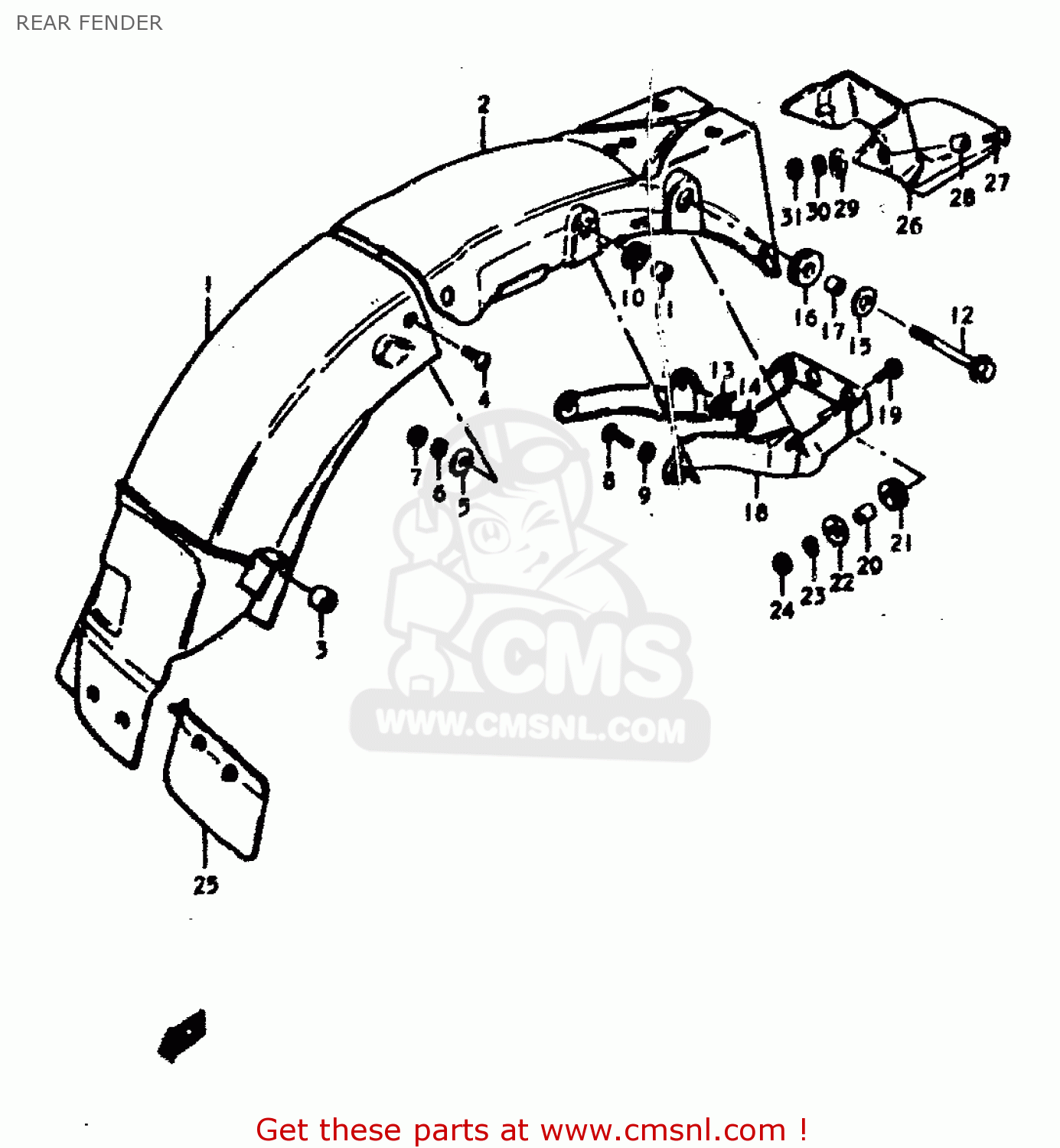

Rear fender diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

REAR FENDER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
REAR FENDER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
REAR FENDER GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
6311244000
ref: 1-1
TO 63112-44001
FENDER,REAR
6311244000
€ 83.50
2
6311344001
ref: 2
BODY,RR FENDER RR
6311344001
€ 76.00
3
0932905003
ref: 3
CUSHION
0932905003
€ 4.50
4
0214205167
ref: 4
SCREW
0214205167
€ 1.50
5
0916005017
ref: 5
WASHER (5.5X16X1.2)
0916005017
€ 2.50
6
0832121058
ref: 6
LOCK WASHER
0832121058
€ 2.00
7
0831011058
ref: 7
NUT
0831011058
€ 2.50
8
0110706208
ref: 8
BOLT
0110706208
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0932008007
ref: 10
CUSHION
0932008007
€ 4.00
11
0918006038
ref: 11
6.1X9X7.5
SPACER(6.1X9X7.5)
0918006038
€ 2.00
12
0152708657
ref: 12
BOLT
€ 3.00
13
0831012088
ref: 13
NUT
0831012088
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0916008032
ref: 15
8.5X26X1.2
WASHER(8.5X26X1.2)
0916008032
€ 3.50
16
0932012011
ref: 16
CUSHION
0932012011
€ 3.00
17
0918008021
ref: 17
8.2X11.8X7.5
SPACER (8.2X12X7.5)
0918008021
€ 3.00
18
6312044000
ref: 18
REINFORCEMENT,REAR FENDER
6312044000
€ 28.50
19
0214206207
ref: 19
SCREW
0214206207
€ 2.00
20
0918006011
ref: 20
6.1X9X9
SPACER (6.1X9X9)
0918006011
€ 2.00
21
0932008013
ref: 21
CUSHION
0932008013
€ 4.00
22
0916006012
ref: 22
6.5X22X1.6
WASHER(6,5X22X1.6)
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0831011068
ref: 24
NUT
0831011068
€ 2.50
25
6341133000
ref: 25
MUD GUARD,REAR FENDER
6341133000
€ 10.00
26
6331144600
ref: 26
OPT
EXTENSION,REAR FENDER
6331144600
€ 65.00
27
0912506009
ref: 27
6.2X8.3X5.7 OPT
SCREW (6X15)
0912506009
€ 3.00
28
0918006001
ref: 28
6.5X18X1 OPT
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
29
0916006028
ref: 29
OPT
WASHER(6.5X18X1)
0916006028
€ 1.50
30
0832121068
ref: 30
OPT
LOCK WASHER
0832121068
€ 2.50
31
0831011068
ref: 31
OPT
NUT
0831011068
€ 2.50
