FRAME COVER (GS400C,EC)

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

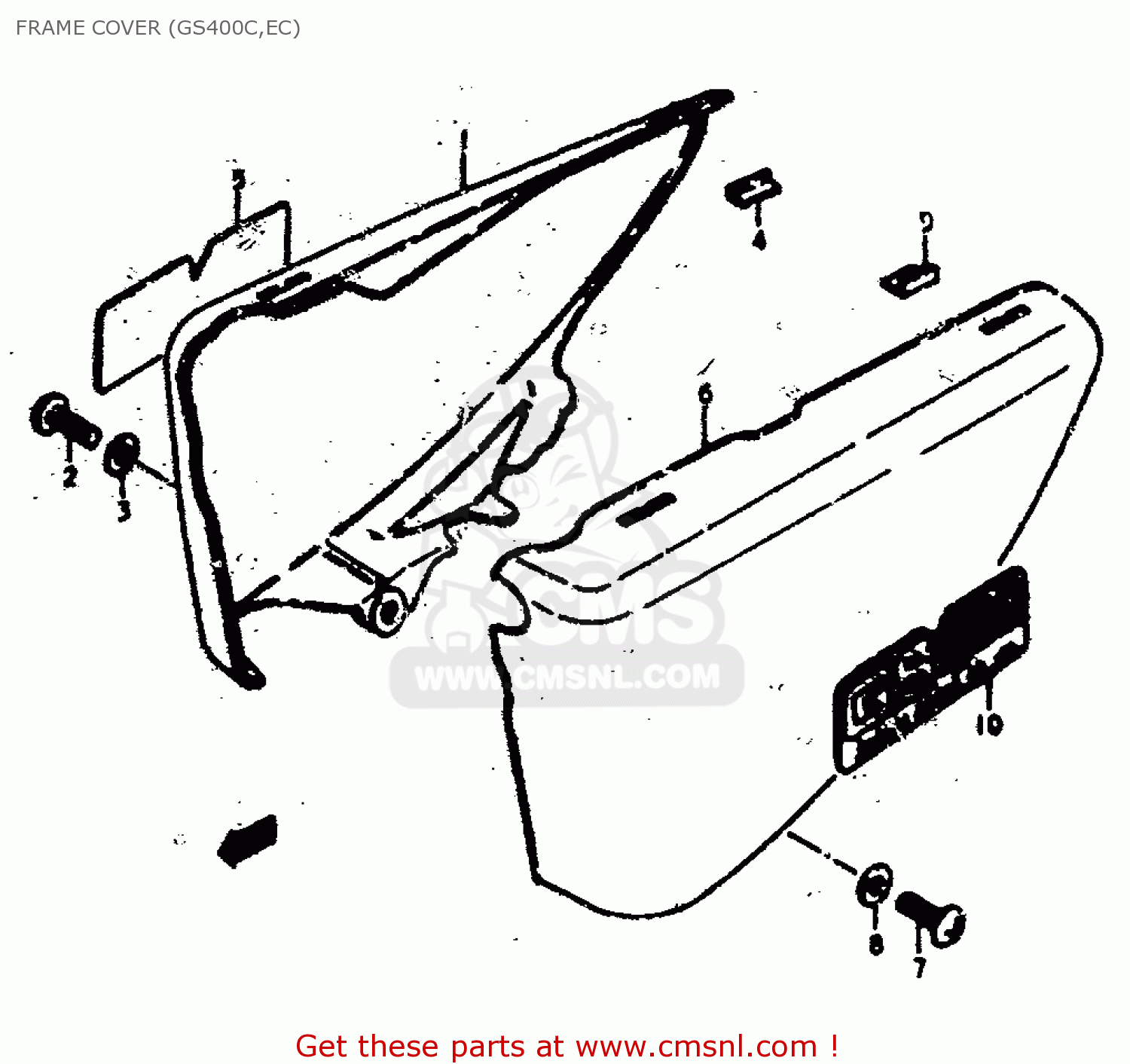

Frame cover (gs400c,ec) diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

4711144001291
ref: 1

COVER,FRAME,RIGHT

€ 56.00

0912506009
ref: 2

SCREW (6X15)

€ 3.00

0916006039
ref: 3

WASHER (6.5X18X1.6)

€ 2.00

4711745000
ref: 4

CUSHION,FRAME COVER

€ 1.50

6813144000
ref: 5

EMBLEM

€ 6.50

4721144000291
ref: 6

COVER,FRAME,LEFT

€ 62.50

0912506026
ref: 7

SCREW

€ 2.00

0916006039
ref: 8

WASHER (6.5X18X1.6)

€ 2.00

4711745000
ref: 9

CUSHION,FRAME COVER

€ 1.50

6813144000
ref: 10

EMBLEM

€ 6.50
