WIRING HARNESS

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

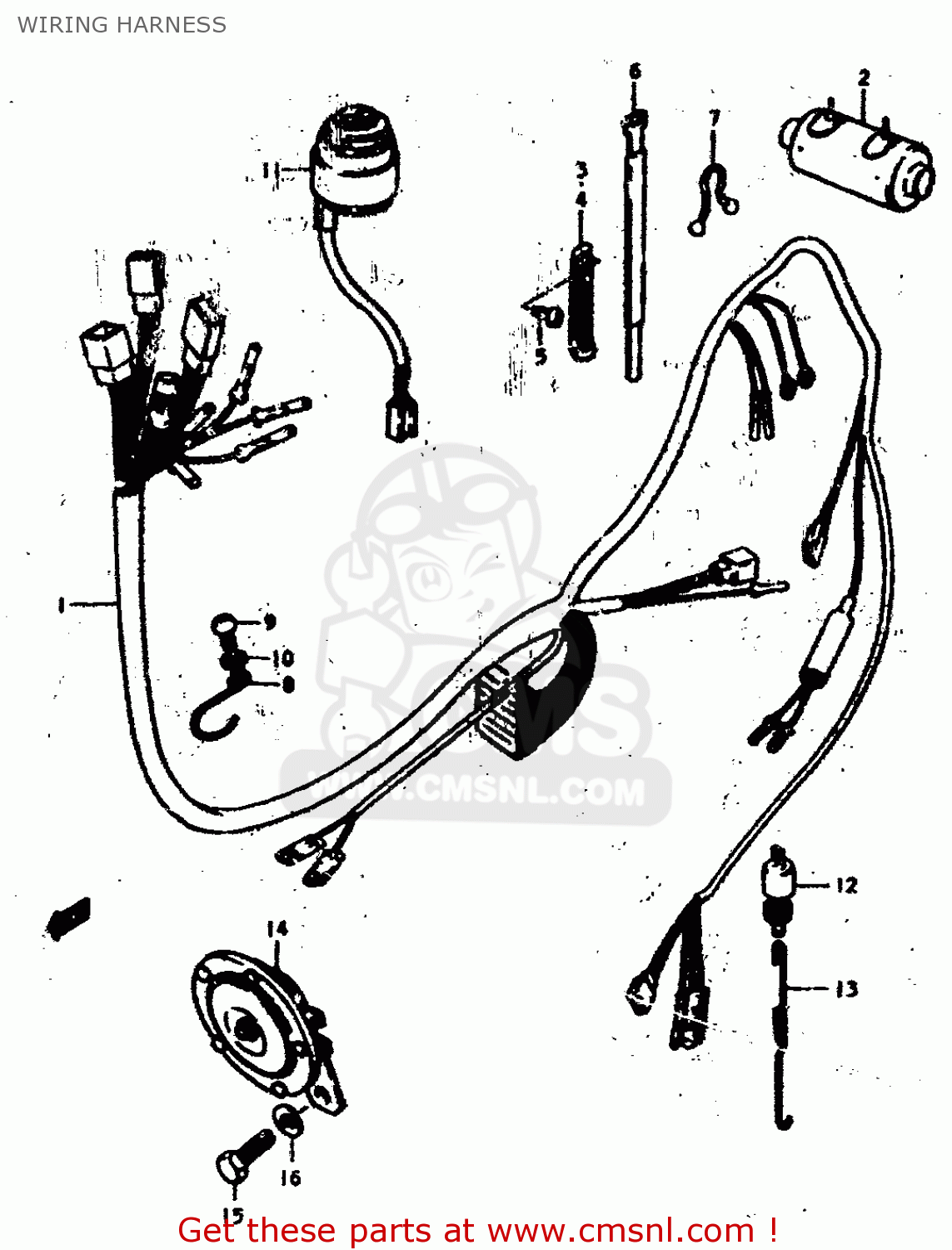

Wiring harness diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3661044001
ref: 1-1
TO 36610-44002

HARNESS,WIRING

€ 176.00

3661830610
ref: 2

BOOT,WIRING HARNESS

€ 9.50

0940406414
ref: 3

CLAMP

€ 3.00

0940406402
ref: 4

CLAMP

€ 2.50

0211206108
ref: 5

SCREW

€ 1.50

0940718301
ref: 6

CLAMP

€ 6.00

0940800011
ref: 7

CLAMP

€ 2.00

3661944000
ref: 8

GUIDE,WIRING HARNESS

€ 2.50

0211206128
ref: 9

SCREW 6X12

€ 2.00

0832221068
ref: 10

WASHER

€ 2.00

3711031016
ref: 11

SWITCH ASSEMBLY,IGNITION

€ 90.00

3761053011
ref: 12

SWITCH ASSY,BRAKE LAMP

€ 34.50

0944306016
ref: 13

SPRING

€ 2.50

3850064130
ref: 14

HORN ASSY

€ 77.00

0110708128
ref: 15

BOLT 8X12

€ 2.50

0832211088
ref: 16

WASHER

€ 2.00
