MASTER CYLINDER

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

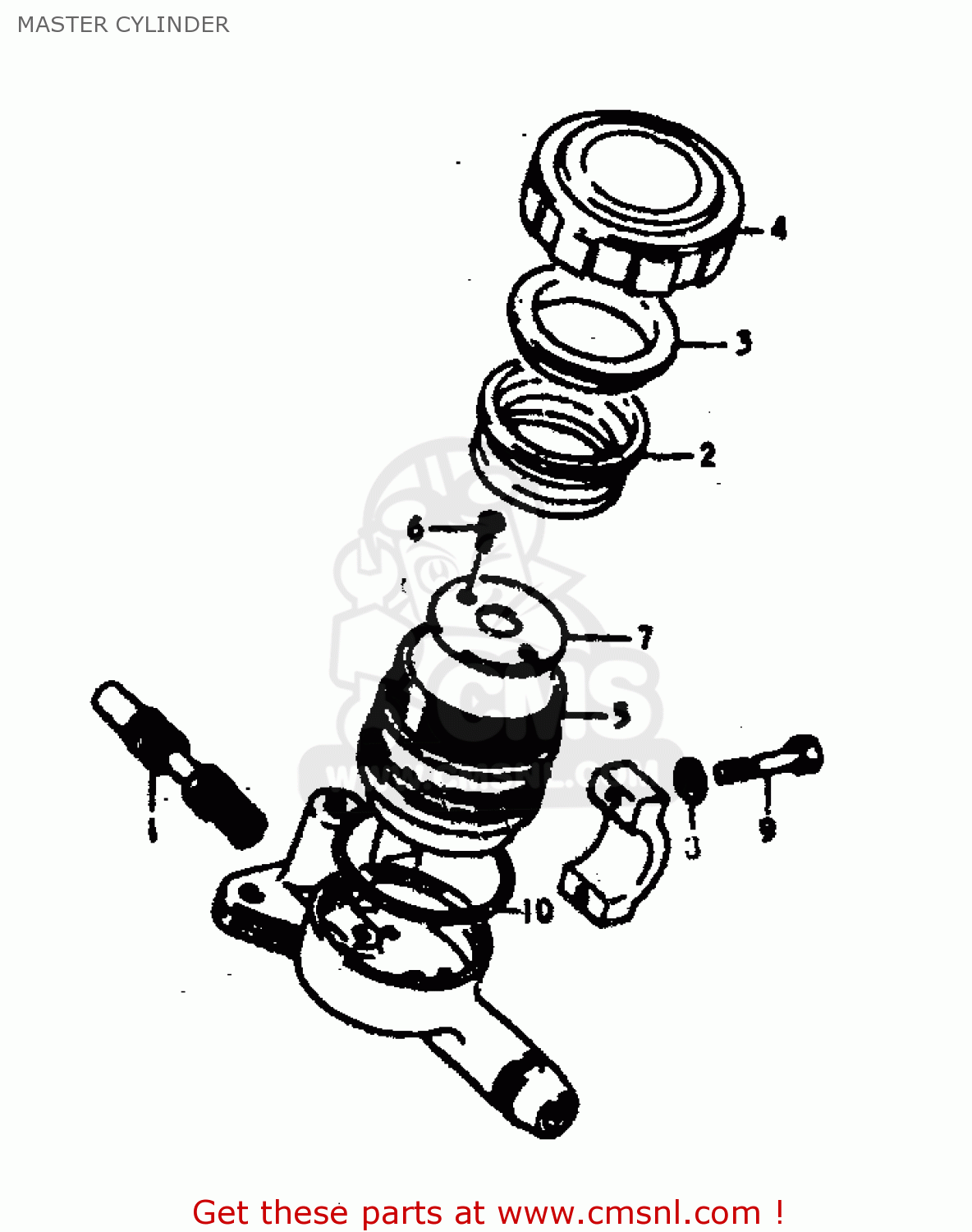

Master cylinder diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

5960033606
ref: 0
FROM 59600-33603

CYLINDER ASSY,

€ 231.00

5960045821
ref: 1
FROM 59600-18824

PISTON & CUP SET

€ 44.50

0966718441
ref: 2

DIAPHRAGM

€ 0.00

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

4-1

5966918604
ref: 4-1

CAP

€ 16.50

5968745000
ref: 5

RESERVOIR

€ 28.50

6-1

5968833600
ref: 6-1

SCREW,MASTER CYLINDER

€ 0.00

5968533600
ref: 7

PLATE

€ 54.00

0832221068
ref: 8

WASHER

€ 2.00

0110706258
ref: 9

BOLT

€ 2.00

5968633600
ref: 10

O RING

€ 14.00
