Buy Suzuki GS Parts Online


SPECIAL MARKET (E22)

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

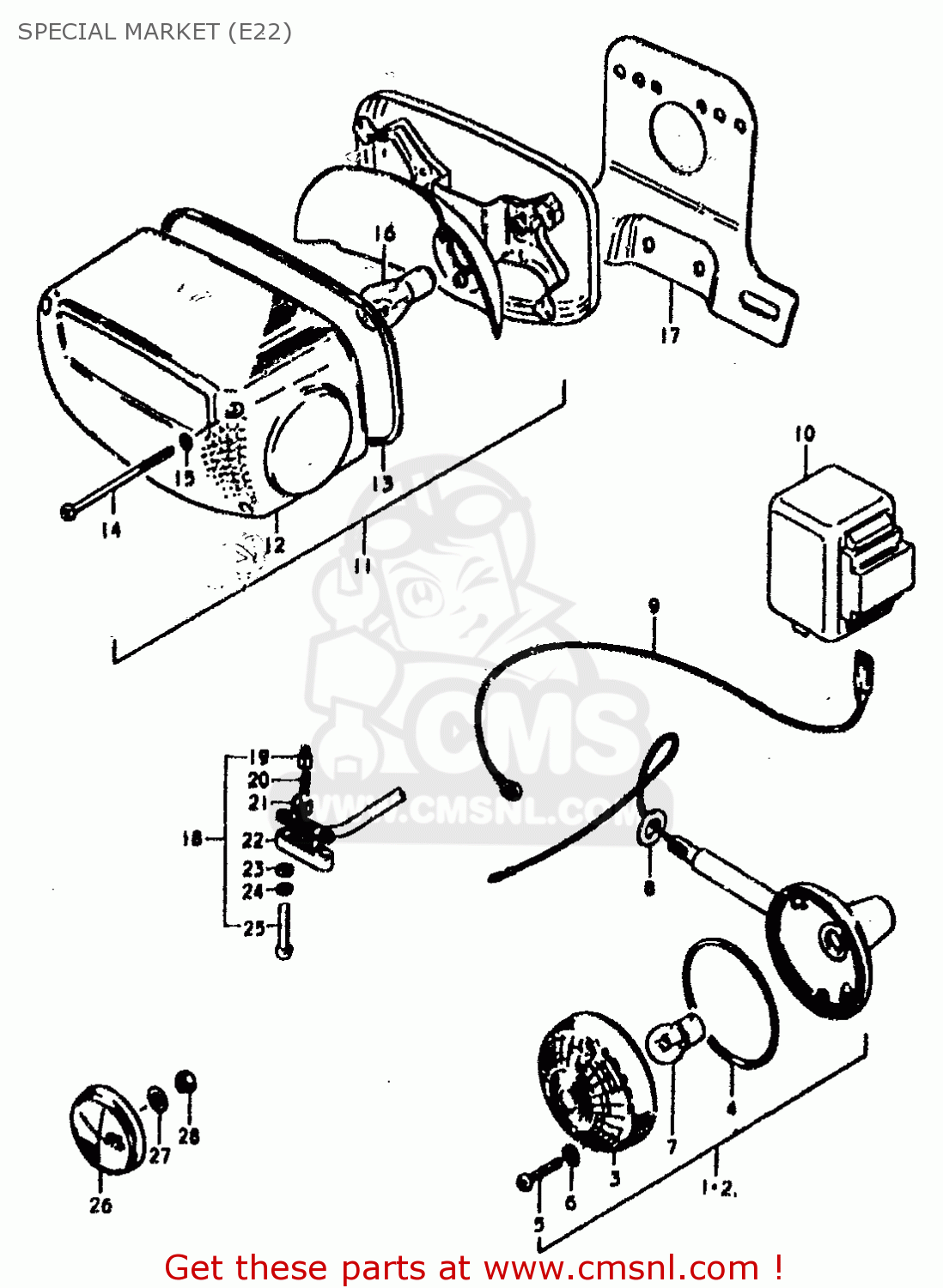

Special market (e22) diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E22) GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3560134650999
ref: 1
LAMP ASSY,FRONT TURN SIGNAL
€ 64.50
2
3560344620999
ref: 2
LAMP ASSY,REAR TURN SIGNAL
€ 0.00
3
3561228620
ref: 3
LENS
3561228620
€ 10.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
0211204258
ref: 5
SCREW 4X25
0211204258
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947112045
ref: 7
PHILIPS/HELLA DM,K15
BULB(12V21W)
0947112045
€ 5.00
8
0916010020
ref: 8
WASHER(10.5X24X1)
0916010020
€ 2.00
9
3685231900
ref: 9
LEAD WIRE,TURN SIGNAL RELAY (-)
€ 6.00
10
3861045090
ref: 10
RELAY, TURN SIGNAL
€ 67.50
11-1
3571045631999
ref: 11-1
TO 35710-45632-999
LAMP ASSY,REAR COMBINATION
€ 149.50
12
3571245631
ref: 12
LENS,RR COMBIN
3571245631
€ 41.00
13
3571345010
ref: 13
GASKET (NAS)
3571345010
€ 9.00
14
0912504002
ref: 14
SCREW (4X55)
0912504002
€ 1.50
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16
0947112046
ref: 16
PHILIPS/HELLA DM,K15
BULB(12V21/5W)
0947112046
€ 1.50
17-1
3592745602
ref: 17-1
TO 35927-45603
PLATE,LICENCE
€ 14.00
18
5746033700
ref: 18
SWITCH ASSY,STOP
5746033700
€ 38.50
19
5746118600
ref: 19
HOLDER
€ 4.50
20
5746218600
ref: 20
SPRING
€ 4.50
21
5746318600
ref: 21
PLATE
5746318600
€ 4.50
22
5748133010
ref: 22
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
23
0832221038
ref: 23
WASHER
0832221038
€ 2.00
24
0832121038
ref: 24
LOCK WASHER
€ 1.50
25
0912503105
ref: 25
SCREW
0912503105
€ 2.50
26-1
3597045610
ref: 26-1
REFLECTOR,REFLEX
€ 47.50
27-1
0832221058
ref: 27-1
WASHER
€ 2.50
28
0831011058
ref: 28
NUT
0831011058
€ 2.50
