Buy Suzuki GS Parts Online


STARTING MOTOR

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

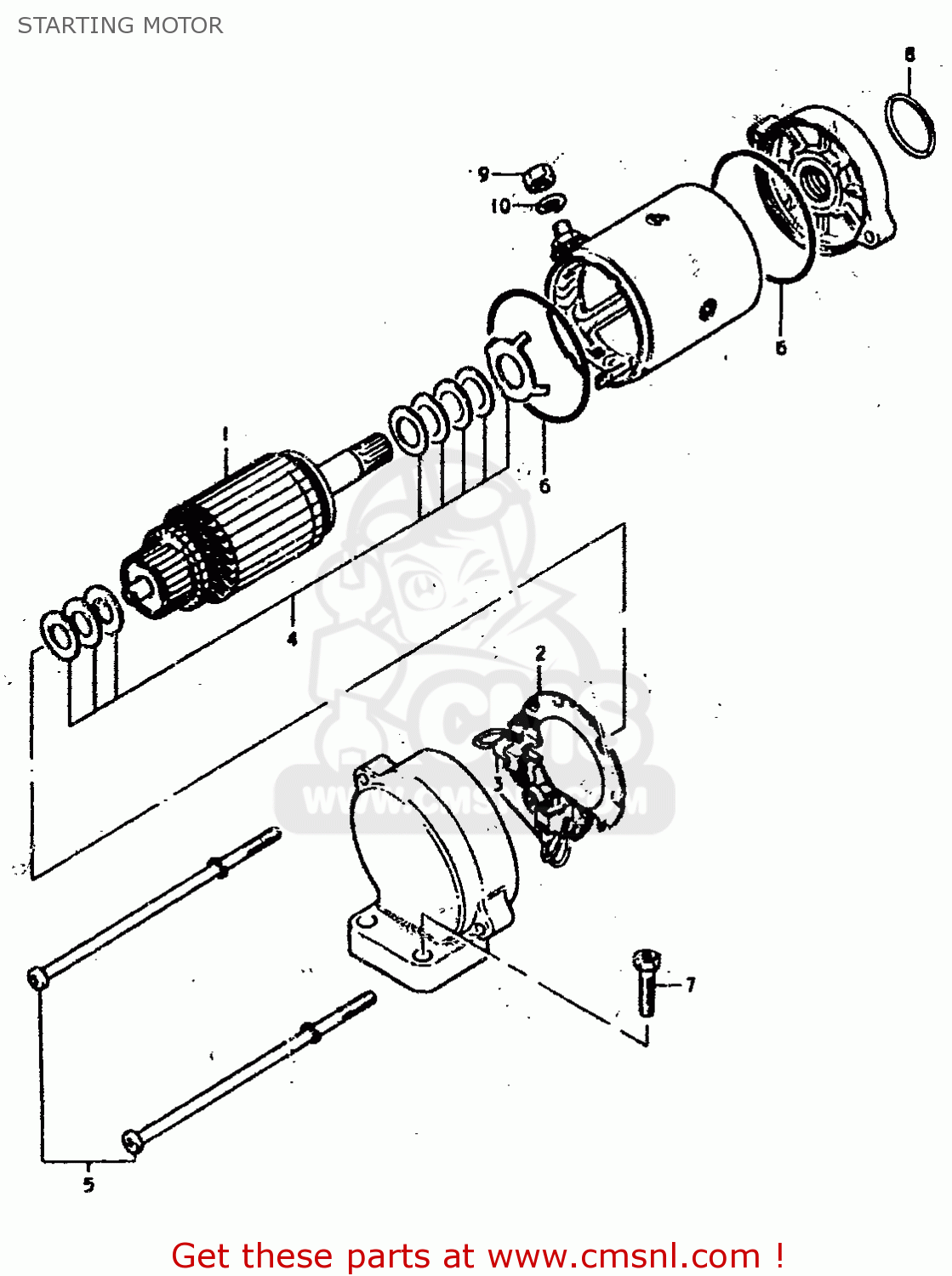

Starting motor diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

STARTING MOTOR GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
STARTING MOTOR GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
STARTING MOTOR GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
3110045040
ref: 0
MITSUBA
MOTOR ASSEMBLY,STARTING
€ 873.50
1
3131131040
ref: 1
ARMATURE
€ 150.50
2
3117331040
ref: 2
HOLDER ASSY
3117331040
€ 25.50
3
3113131040
ref: 3
2PCS/SET
BRUSH SET
3113131040
€ 17.00
4
3136131040
ref: 4
SHIM SET
€ 22.50
5
3128131040
ref: 5
BOLT,STARTING MOTOR HOUSING
€ 12.50
6
3126431040
ref: 6
O RING
3126431040
€ 8.50
7
0912806012
ref: 7
SCREW
€ 2.50
8
0928024001
ref: 8
O RING(D:2,ID:24.5)
0928024001
€ 2.00
9
0831022068
ref: 9
NUT 6MM
€ 2.50
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
up
