CAM SHAFT-VALVE

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

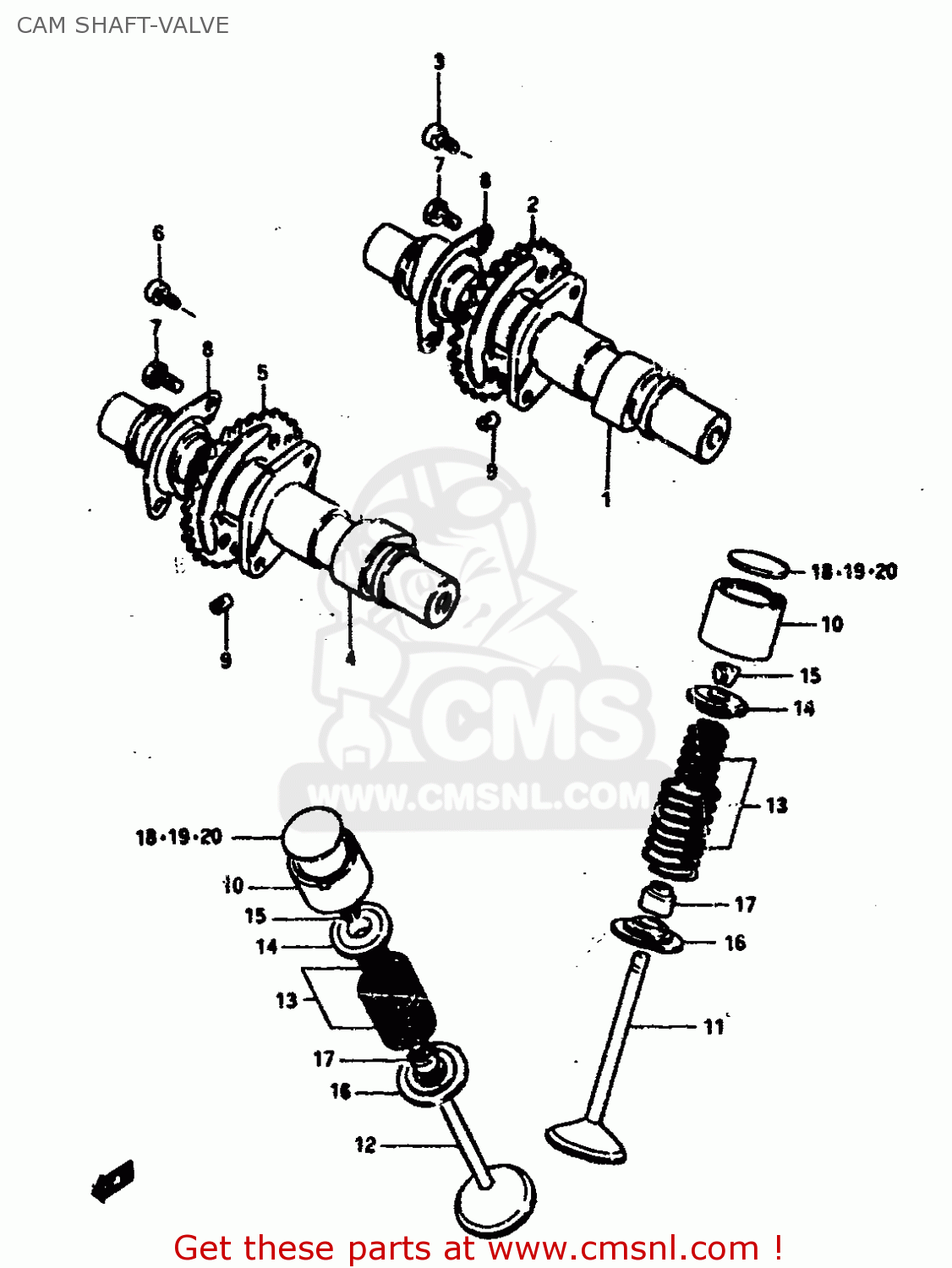

Cam shaft-valve diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

CAM SHAFT-VALVE GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CAM SHAFT-VALVE GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
CAM SHAFT-VALVE GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1271144011
ref: 1
CAMSHAFT
1271144011
€ 128.00
2
1274045041
ref: 2
NT:30
SPROCKET,CAMSHAFT
1274045041
€ 67.00
3
0910606024
ref: 3
BOLT 6X11
0910606024
€ 2.50
4
1272144011
ref: 4
CAMSHAFT,EXHAUST
1272144011
€ 139.00
5
1275045041
ref: 5
NT:30
SPROCKET,EXHAUST CAM(NT:30)
1275045041
€ 65.00
6
0910606024
ref: 6
BOLT 6X11
0910606024
€ 2.50
7
0911106027
ref: 7
BOLT(6X12.5)
0911106027
€ 1.50
8
1274744000
ref: 8
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
9
1274844000
ref: 9
PIN,SPROCKET
1274844000
€ 4.50
10
1289145000
ref: 10
TAPPET
1289145000
€ 45.00
11
1291145011
ref: 11
VALVE,INTAKE
1291145011
€ 28.00
12
1291245011
ref: 12
VALVE,EXHAUST
€ 51.50
13
1290045810
ref: 13
SPRING SET,VALVE
1290045810
€ 17.00
14
1293145000
ref: 14
RETAINER,VALVE SPRING
1293145000
€ 6.00
15
1290045820
ref: 15
FROM 12932-45000
SHIM,TAPPET
1290045820
€ 2.50
16
1293345001
ref: 16
SEAT,VALVE SPRING
1293345001
€ 5.50
17
0928907002
ref: 17
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
18-1
1289245000
ref: 18-1
T:2.15
SHIM,TAPPET
1289245000
€ 17.00
18-2
1289245001
ref: 18-2
T:2.20
SHIM,TAPPET
€ 16.50
18-3
1289245002
ref: 18-3
T:2.25
SHIM,TAPPET
€ 17.00
18-4
1289245003
ref: 18-4
T:2.30
SHIM,TAPPET
€ 16.00
18-5
1289245004
ref: 18-5
T:2.35
SHIM,TAPPET
€ 16.50
18-6
1289245005
ref: 18-6
T:2.40
SHIM,TAPPET
€ 17.00
18-7
1289245006
ref: 18-7
T:2.45
SHIM,TAPPET
€ 17.00
18-8
1289245007
ref: 18-8
T:2.50
SHIM,TAPPET
€ 16.00
18-9
1289245008
ref: 18-9
T:2.55
SHIM,TAPPET
€ 16.50
19-1
1289245009
ref: 19-1
T:2.60
SHIM,TAPPET
€ 16.00
19-2
1289245010
ref: 19-2
T:2.65
SHIM,TAPPET
1289245010
€ 17.00
19-3
1289245011
ref: 19-3
T:2.70
SHIM,TAPPET
1289245011
€ 17.00
19-4
1289245012
ref: 19-4
T:2.75
SHIM,TAPPET
1289245012
€ 17.00
19-5
1289245013
ref: 19-5
T:2.80
SHIM,TAPPET
1289245013
€ 16.50
19-6
1289245014
ref: 19-6
T:2.85
SHIM,TAPPET
€ 17.00
19-7
1289245015
ref: 19-7
T:2.90
SHIM,TAPPET
€ 17.00
19-8
1289245016
ref: 19-8
T:2.95
SHIM,TAPPET
€ 17.00
19-9
1289245017
ref: 19-9
T:3.00
SHIM,TAPPET
€ 17.00
20-1
1289245018
ref: 20-1
T:3.05
SHIM,TAPPET
1289245018
€ 16.50
20-2
1289245C19
ref: 20-2
T:3.10
SHIM,TAPPET
€ 0.00
21
1280045810
ref: 21
NOT SHOWN
SHIM SET,TAPPET
€ 1,227.00
22
9900069480
ref: 22
NOT SHOWN
CASE
€ 152.50
