RH HANDLE SWITCH

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

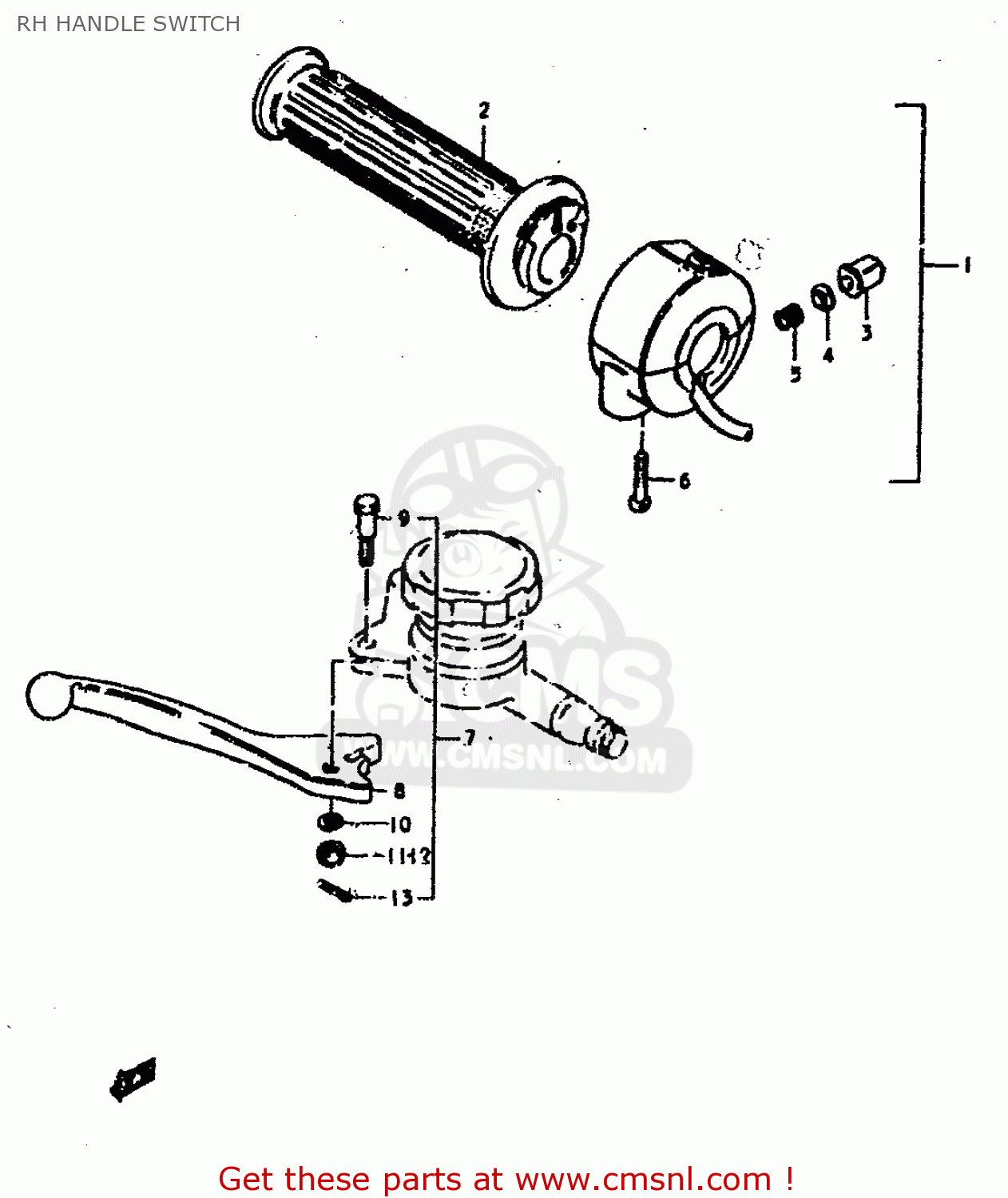

Rh handle switch diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

RH HANDLE SWITCH GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
RH HANDLE SWITCH GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
RH HANDLE SWITCH GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5710045000
ref: 1-1
TO 57100-45030 WITH
CASE ASSEMBLY,THROTTLE
€ 83.50
2-1
5711045000
ref: 2-1
L:120
GRIP,THROTTLE
5711045000
€ 25.50
3
5737145000
ref: 3
BUTTON,HORN
5737145000
€ 3.00
4
5737245000
ref: 4
CONTACT
5737245000
€ 3.00
5
5738245000
ref: 5
SPRING
5738245000
€ 2.50
6
0211205258
ref: 6
SCREW
0211205258
€ 2.00
7-1
5730039100
ref: 7-1
TO 57300-39101
LEVER ASSEMBLY,BRAKE
€ 27.50
8
5742039100
ref: 8
TO 57420-11300
LEVER,BRAKE
5742039100
€ 27.50
9
5743118620
ref: 9
BOLT,LEVER
5743118620
€ 8.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
5743311010
ref: 11
NUT,LEVER FITTNG
5743311010
€ 5.50
13
0411116158
ref: 13
COTTER PIN
€ 2.00
