Buy Suzuki GS Parts Online

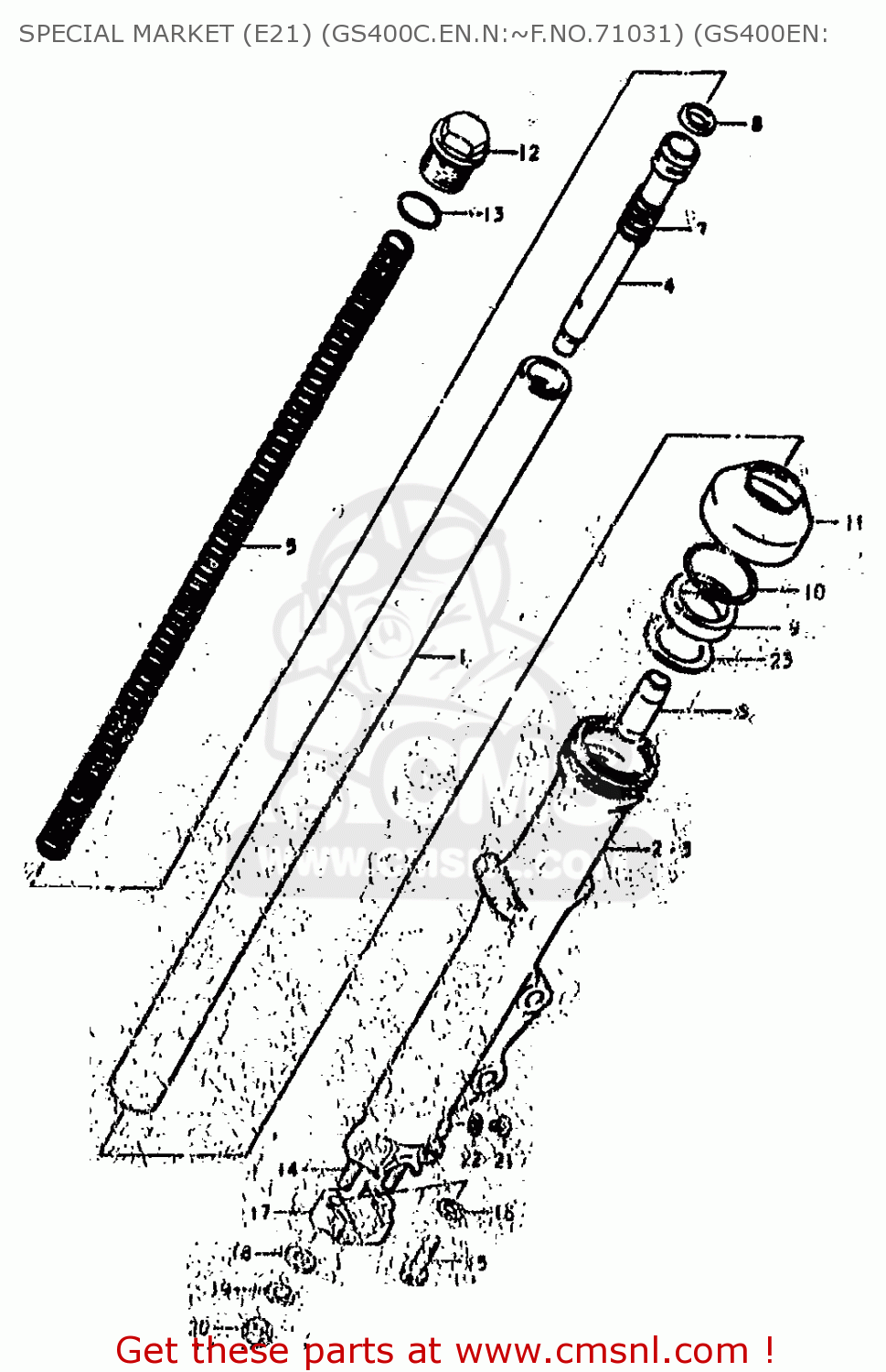

SPECIAL MARKET (E21) (GS400C.EN.N:~F.NO.71031) (GS400EN:

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

Special market (e21) (gs400c.en.n:~f.no.71031) (gs400en: diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

SPECIAL MARKET (E21) (GS400C.EN.N:~F.NO.71031) (GS400EN: GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E21) (GS400C.EN.N:~F.NO.71031) (GS400EN: GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
SPECIAL MARKET (E21) (GS400C.EN.N:~F.NO.71031) (GS400EN: GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
5110344731
ref: 0
TO 51103-44732
DUMPER ASSY,FRONT FORK RH
€ 12.50
0
5110444730
ref: 0
TO 51104-44731
DUMPER ASSY,FRONT FORK LH
€ 170.50
1
5111044030
ref: 1
TUBE,INNER
5111044030
€ 197.50
2-1
5114144030
ref: 2-1
TO 51140-44031
TUBE,OUTER,LEFT
€ 107.50
3-1
5113144031
ref: 3-1
TO 51130-44032
TUBE,OUTER,RIGHT
€ 129.00
4
5114644731
ref: 4
CYLINDER,FRONT FORK
€ 42.00
5
5117144030
ref: 5
SPRING
€ 43.50
6
5119544030
ref: 6
PIECE,OIL LOCK
€ 0.00
7
5117736030
ref: 7
SPRING,REBOUND
5117736030
€ 4.50
8
5119633130
ref: 8
RING,PISTON
5119633130
€ 7.50
9-1
5115344030
ref: 9-1
OIL SEAL,FRONT FORK
€ 15.00
10
5115633130
ref: 10
CIRCLIP,FORK OIL SEAL
5115633130
€ 4.50
11
5157133131
ref: 11
BOOT
5157133131
€ 22.00
12
5135133130
ref: 12
FROM 51351-33131
BOLT
5135133130
€ 30.50
13
5118131030
ref: 13
O RING
5118131030
€ 3.50
14
0142108258
ref: 14
STUD 8X25
0142108258
€ 2.50
15
5114731030
ref: 15
BOLT
5114731030
€ 3.50
16
5114831030
ref: 16
GASKET (NAS)
5114831030
€ 4.00
17
5113231030
ref: 17
HOLDER,AXLE
5113231030
€ 31.50
18
0832221088
ref: 18
WASHER
0832221088
€ 2.00
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
831012088
ref: 20
NUT
€ 0.00
21
0211104067
ref: 21
SCREW
0211104067
€ 2.00
22
5118333030
ref: 22
GASKET (NAS)
5118333030
€ 6.50
