FRAME

GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

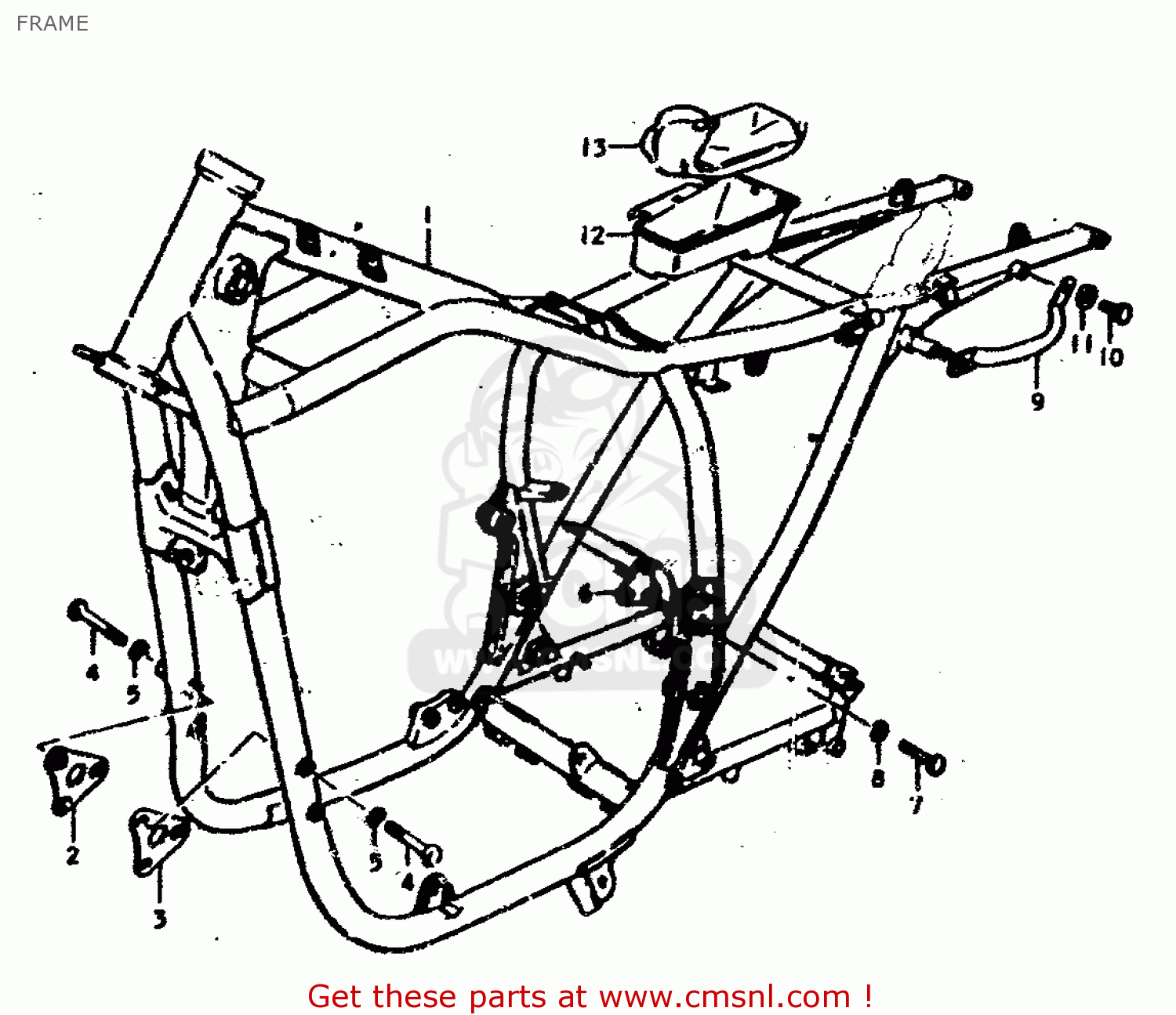

Frame diagram GS400 1978 (C) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E30 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

4110044000019
ref: 1-1

FRAME

€ 0.00

4193044000019
ref: 2

PLATE,ENGINE MOUNTING

€ 8.00

4194044000019
ref: 3

PLATE,ENGINE MOUNTING

€ 8.00

0110708608
ref: 4

BOLT

€ 2.50

0832121088
ref: 5

LOCK WASHER

€ 2.00

4191044000019
ref: 6

PLATE,ENGINE MOUNTING

€ 0.00

0110708408
ref: 7

BOLT 8X40

€ 3.00

0832121088
ref: 8

LOCK WASHER

€ 2.00

4161144000
ref: 9

GRIP,FRAME HANDLE

€ 56.50

0110708168
ref: 10

BOLT

€ 2.00

0832121088
ref: 11

LOCK WASHER

€ 2.00

4155144000
ref: 12

HOLDER,TOOL

€ 10.00

13-1

0980000164
ref: 13-1

TOOL SET

€ 50.00
