CARBURETOR
GSX400E 1980 (T) (E02 E04 E22 E24)

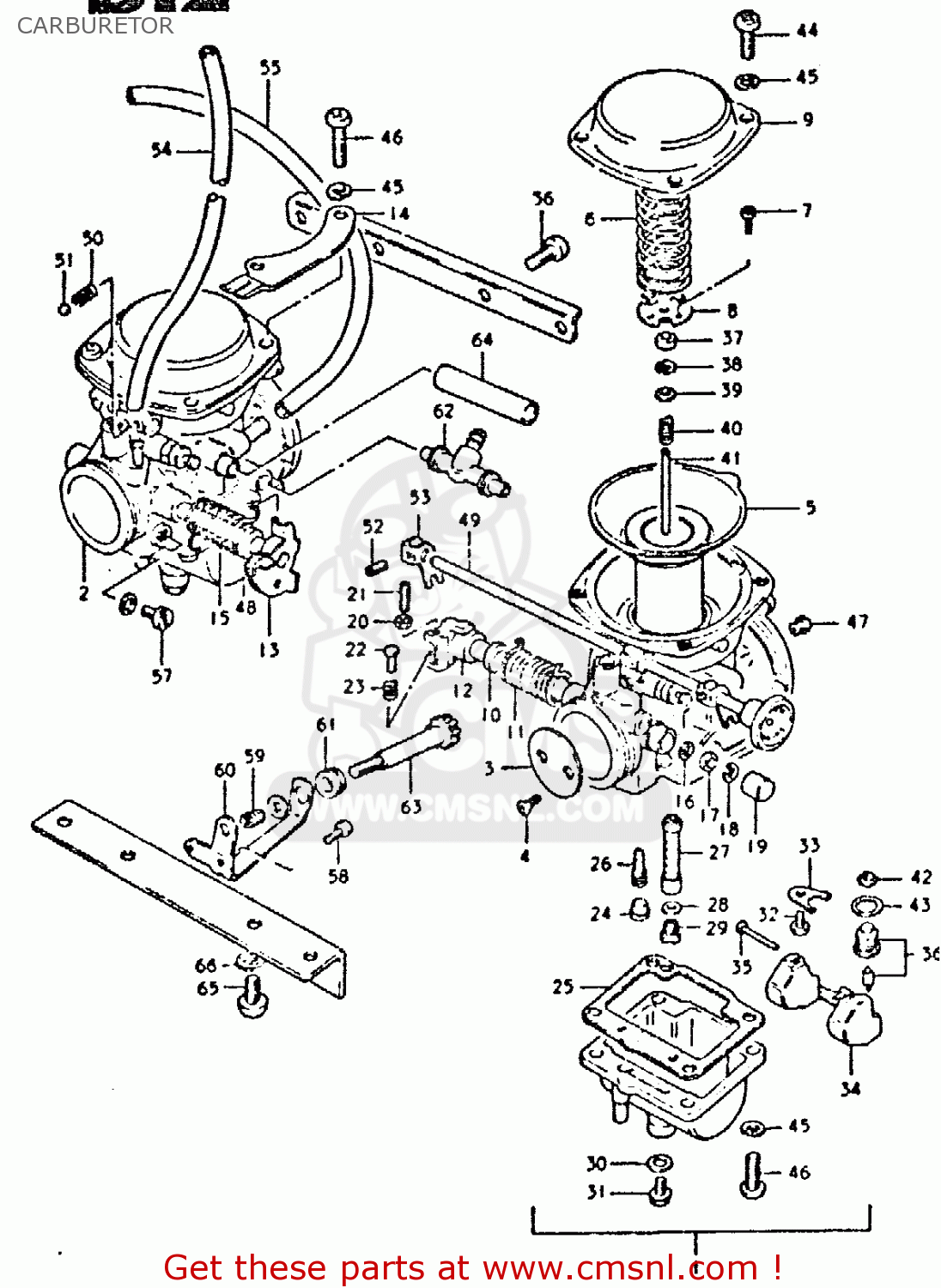

Carburetor diagram GSX400E 1980 (T) (E02 E04 E22 E24)
CARBURETOR GSX400E 1980 (T) (E02 E04 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
0
1320044202
ref: 0
FROM 13200-44201
CARBURETOR ASSY
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-1
1320144201
ref: 1-1
LH, TO 13201-44202
CARBURETOR, LH
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2-1
1320244201
ref: 2-1
RH, TO 13202-44202
CARBURETOR, RH
€ 248.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
1355144080
ref: 3
VALVE, THROTTLE (135)
€ 29.00
4
1360444080
ref: 4
SCREW
€ 3.50
5
1360044200
ref: 5
DIAPHRAGM
€ 0.00
6
1350344200
ref: 6
SPRING
€ 5.50
7
0211203088
ref: 7
SCREW
€ 1.50
8
1358144200
ref: 8
PLATE
€ 0.00
9
1350244080
ref: 9
COVER,DIAPHRAGM
€ 24.50
10
1338744200
ref: 10
LH
SPACER,THROTTLE SHAFT
€ 0.00
11
1357344200
ref: 11
LH
SPRING
€ 0.00
12-1
1355044210
ref: 12-1
LH, MARK:44201
SHAFT ASSEMBLY
€ 0.00
12-2
1355044200
ref: 12-2
LH, MARK:44202
SHAFT
€ 0.00
13
1355044220
ref: 13
RH
SHAFT,THROTTLE
€ 0.00
14
1362144200
ref: 14
RH
BRACKET
€ 0.00
15
1357344210
ref: 15
RH
SPRING
€ 0.00
16
1365151010
ref: 16
SEAL
€ 4.00
17
1355747070
ref: 17
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
18
1361744080
ref: 18
E RING
€ 3.50
19
1357847070
ref: 19
CAP
€ 5.50
20
1360747070
ref: 20
LH
NUT
€ 4.00
21
1360547070
ref: 21
LH
SCREW
€ 5.50
22
1356344110
ref: 22
LH
PIN,THROTTLE LEVER
€ 0.00
23
1326844110
ref: 23
LH
SPRING,THROTTLE SCREW
€ 0.00
24
1335744080
ref: 24
PLUG,NEEDLE JET
€ 4.50
25
1325144080
ref: 25
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
26
0949242005
ref: 26
JET, PILOT (42.5)
€ 8.50
27-1
0949400312
ref: 27-1
JET,NEEDLE(P-1)
€ 24.00
27-2
NOTUSED
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
1333244080
ref: 28
WASHER,NEEDLE NOZZLE
€ 2.50
29
0949123004
ref: 29
JET
€ 11.00
30
1324644080
ref: 30
GASKET (NAS)
€ 3.50
31
1324744080
ref: 31
PLUG,DRAIN
€ 9.50
32
0211204068
ref: 32
SCREW 4X6
€ 2.00
33
1337339110
ref: 33
PLATE
€ 6.50
34
1325044080
ref: 34
FLOAT
€ 31.00
35
1325492311
ref: 35
PIN,FLOAT
€ 2.00
36
1337044080
ref: 36
VALVE ASSEMBLY,NEEDLE
€ 40.50
37
1338747010
ref: 37
RING
€ 7.50
38
1339410010
ref: 38
CLIP
€ 4.50
39
1325420010
ref: 39
PIN,FLOAT
€ 3.00
40
1338847010
ref: 40
SPRING
€ 7.00
41
1338344200
ref: 41
NEEDLE,JET
€ 16.00
42
1337644080
ref: 42
FILTER
€ 6.50
43
1337444080
ref: 43
O-RING,NEEDLE VALVE
€ 6.00
44
0211105158
ref: 44
SCREW
€ 2.50
45
0832121058
ref: 45
LOCK WASHER
€ 2.00
46
0211205168
ref: 46
SCREW
€ 2.50
47
0949325001
ref: 47
JET,AIR(125)
€ 11.50
48
1338744210
ref: 48
RH
SPACER,THROTTLE SHAFT
€ 0.00
49
1355044200
ref: 49
SHAFT
€ 0.00
50
1343443010
ref: 50
SPRING
€ 6.50
51
1359693010
ref: 51
BALL,CARBURETOR
€ 3.50
52
1360547070
ref: 52
SCREW
€ 5.50
53
1342244080
ref: 53
LEVER
€ 10.00
54
1368718656
ref: 54
HOSE
€ 14.00
55
1368744200
ref: 55
HOSE
€ 13.00
56
0211205128
ref: 56
SCREW
€ 2.50
57
1360544200
ref: 57
SCREW
€ 0.00
58
0211205088
ref: 58
SCREW
€ 2.00
59-1
1327193011
ref: 59-1
MARK:44201
SPRING
€ 4.50
59-2
1327144220
ref: 59-2
MARK:44202
SPRING,THROTTLE ADJUST
€ 3.50
60
1362144210
ref: 60
BRACKET,THROTTLE ADJUST
€ 0.00
61
1368116601
ref: 61
CAP
€ 7.00
62
1368511400
ref: 62
NIPPLE,CARBURETOR
€ 19.50
63
1326747070
ref: 63
SCREW
€ 21.00
64
1368744210
ref: 64
HOSE
€ 13.00
65
0211206128
ref: 65
SCREW 6X12
€ 2.00
66
0832121068
ref: 66
LOCK WASHER
€ 2.50
