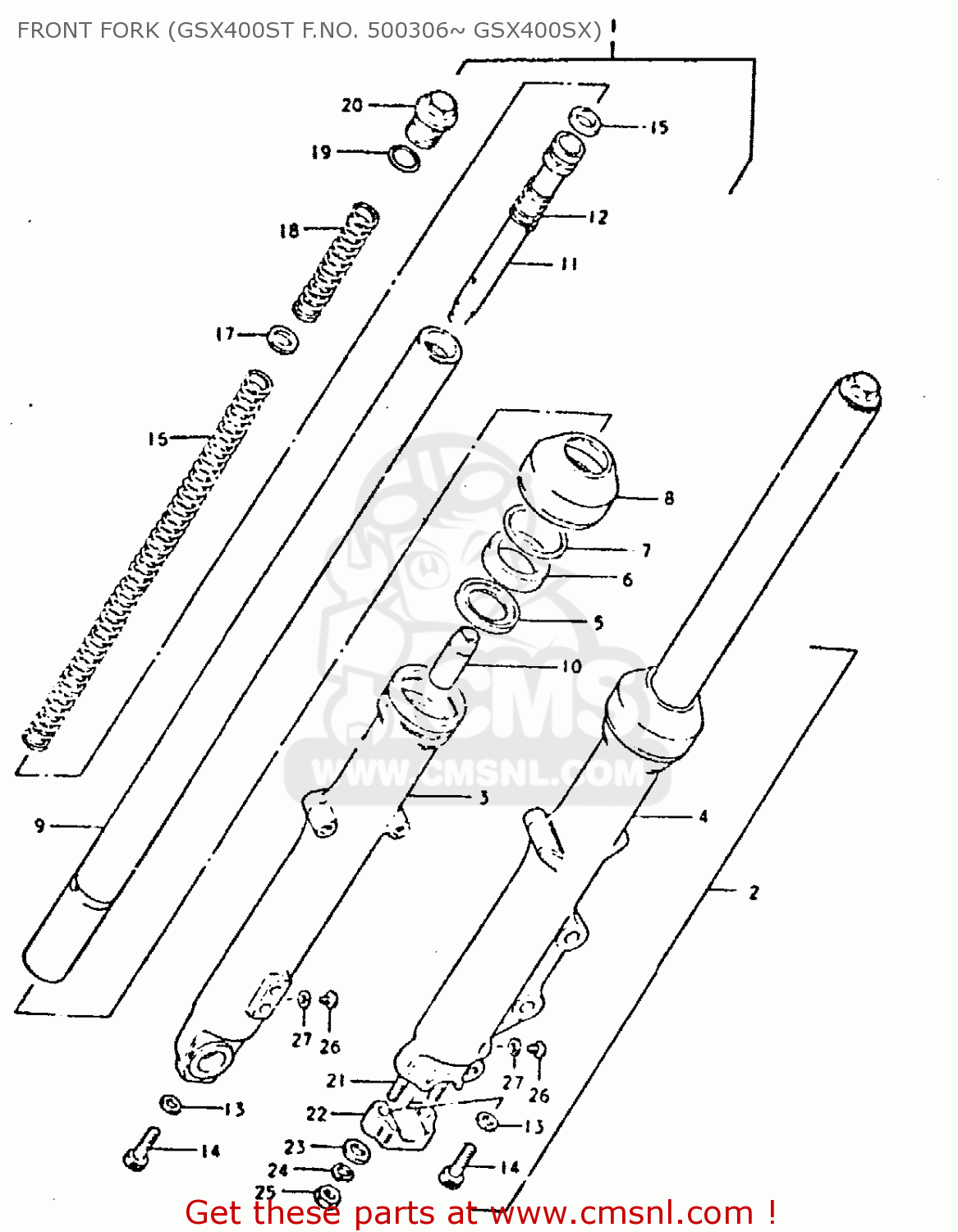

FRONT FORK (GSX400ST F.NO. 500306~ GSX400SX)

ref

part #

description

quantity

1

5110344150
ref: 1

DUMPER ASSY, RH

€ 0.00

2

5110444150
ref: 2

DUMPER ASSY, LH

€ 0.00

3

5113044033
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 129.00

4

5114044031
ref: 4

TUBE,FORK,LEFT,OUTER

€ 107.50

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115344031
ref: 6

OIL SEAL,FRONT FORK

€ 15.00

7

5115633130
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157133131
ref: 8

BOOT

€ 22.00

9

5111044030
ref: 9

TUBE,INNER

€ 197.50

10

5119548000
ref: 10

PIECE,OIL LOCK

€ 8.50

11

5114611400
ref: 11

CYLINDER,FRONT FORK

€ 43.00

12

5117736030
ref: 12

SPRING,REBOUND

€ 4.50

13

5114831030
ref: 13

GASKET (NAS)

€ 4.00

14

5114748130
ref: 14

BOLT(8X27)

€ 3.50

15

5119633130
ref: 15

RING,PISTON

€ 7.50

16

5117144140
ref: 16

SPRING

€ 0.00

17

5117236331
ref: 17

SEAT,SPRING

€ 2.50

18

5118444140
ref: 18

SPRING,FRONT FORK

€ 20.50

19

5118131030
ref: 19

O RING

€ 3.50

20

5135133130
ref: 20

BOLT

€ 30.50

21

0142108258
ref: 21

STUD 8X25

€ 2.50

22

5113231030
ref: 22

HOLDER,AXLE

€ 31.50

23

0832221088
ref: 23

WASHER

€ 2.00

24

0832121088
ref: 24

LOCK WASHER

€ 2.00

25

0914008005
ref: 25

NUT (8MM)

€ 1.50

26

0211204068
ref: 26

SCREW 4X6

€ 2.00

27

5118333030
ref: 27

GASKET (NAS)

€ 6.50

all assemblies
