FRAME COVER (GSX400ET/EX)

GSX400E 1980 (T) (E02 E04 E22 E24)

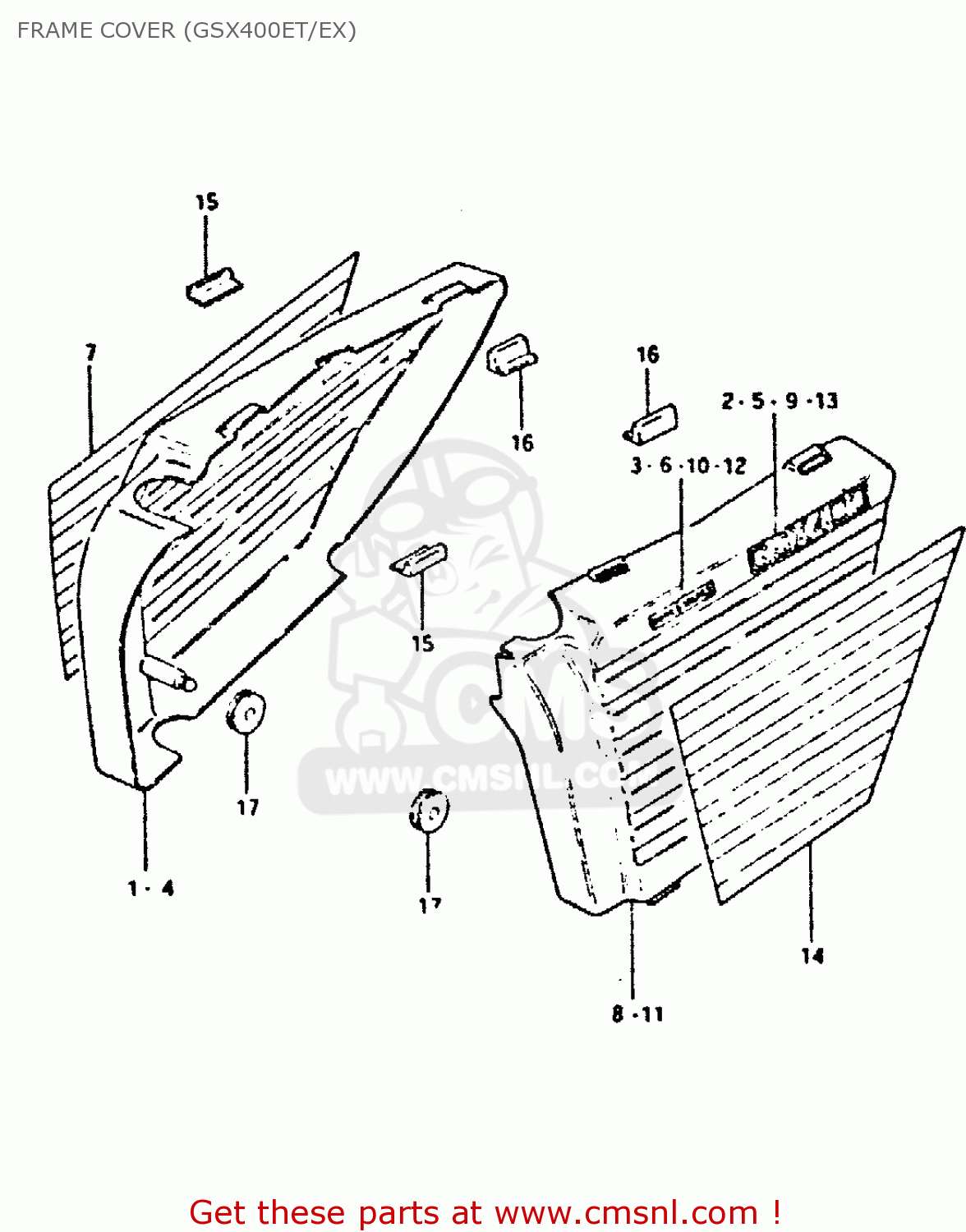

Frame cover (gsx400et/ex) diagram GSX400E 1980 (T) (E02 E04 E22 E24)

FRAME COVER (GSX400ET/EX) GSX400E 1980 (T) (E02 E04 E22 E24)

FRAME COVER (GSX400ET/EX) GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4711144100019
ref: 1-1

COVER,FRAME,RIGHT

€ 40.00

1-2

471114410005H
ref: 1-2

COVER, FRAME RH (BLUE)

€ 40.00

1-3

471114410000J
ref: 1-3

COVER,FRAME,RIGHT

€ 40.00

2

6813144140064
ref: 2

EMBLEM, "GSX400" (WHITE)

€ 4.50

3

6813244110064
ref: 3

EMBLEM (WHITE)

€ 3.50

4

4711144100737
ref: 4

COVER,FRAME,RIGHT

€ 40.00

5

6813144140019
ref: 5

EMBLEM, "GSX400" (BLACK)

€ 8.50

6

6813244110019
ref: 6

EMBLEM (BLACK)

€ 4.50

7

6813044100
ref: 7

TAPE SET, RH

€ 14.00

8-1

4721144100019
ref: 8-1

COVER,FRAME,LEFT

€ 44.00

8-2

472114410005H
ref: 8-2

COVER, FRAME LH (BLUE)

€ 44.00

8-3

472114410000J
ref: 8-3

COVER,FRAME,LEFT

€ 44.00

9

6813144140064
ref: 9

EMBLEM, "GSX400" (WHITE)

€ 4.50

10

6813244110064
ref: 10

EMBLEM (WHITE)

€ 3.50

11

4721144100737
ref: 11

COVER,FRAME,LEFT

€ 44.00

12

6813144140019
ref: 12

EMBLEM, "GSX400" (BLACK)

€ 8.50

13

6813244110019
ref: 13

EMBLEM (BLACK)

€ 4.50

14

6814044100
ref: 14

TAPE SET

€ 12.00

15

4711745000
ref: 15

CUSHION,FRAME COVER

€ 1.50

16

4711702400
ref: 16

CUSHION,FRAME COVER

€ 2.00

17

0932008018
ref: 17

CUSHION

€ 4.00
