CYLINDER HEAD
GSX400E 1980 (T) (E02 E04 E22 E24)

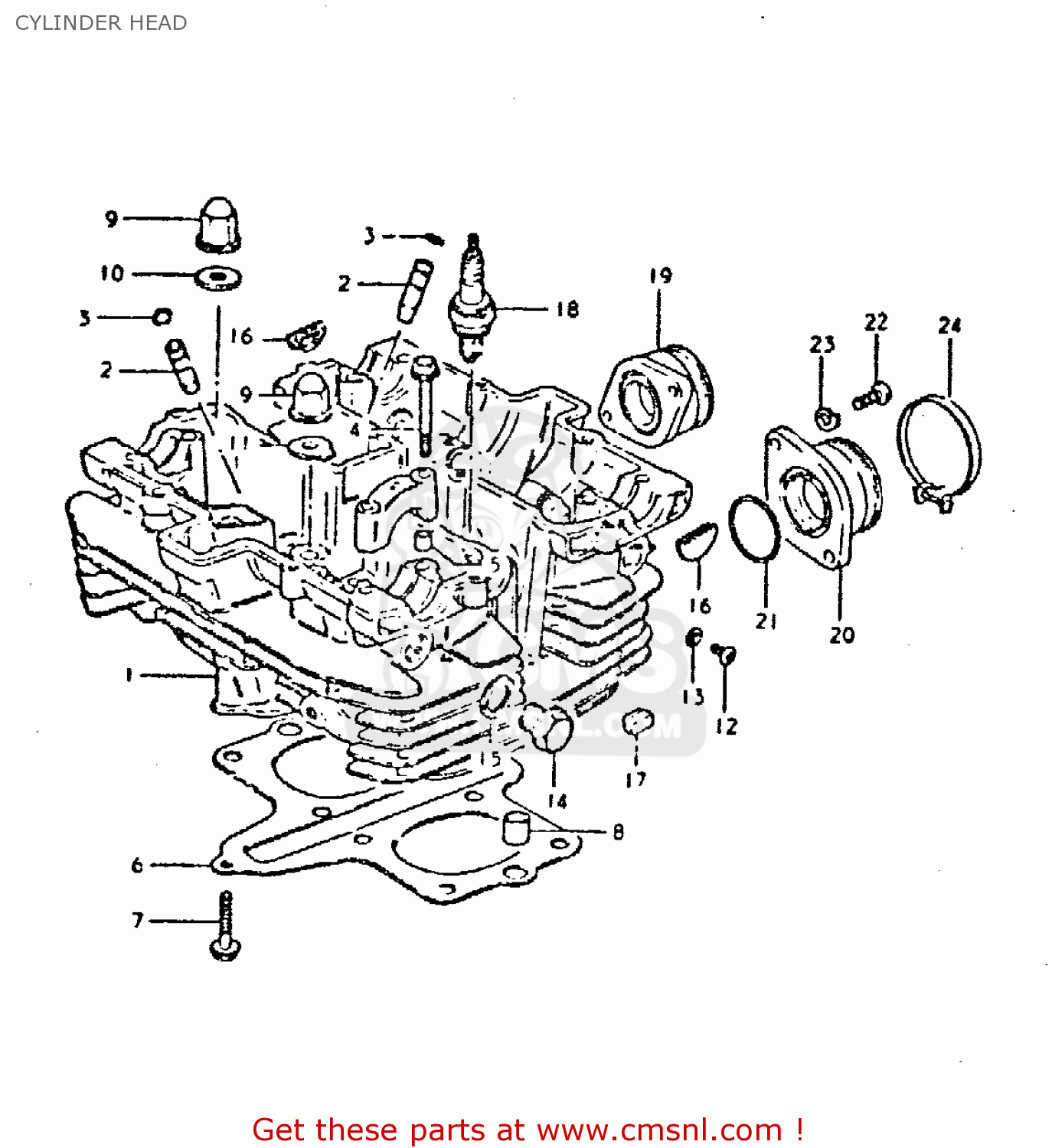

Cylinder head diagram GSX400E 1980 (T) (E02 E04 E22 E24)
CYLINDER HEAD GSX400E 1980 (T) (E02 E04 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1110044840
ref: 1
CYLINDER HEAD SET
€ 524.50
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
€ 19.50
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114144200
ref: 6
GASKET (MCA)
€ 117.00
7
0151706308
ref: 7
BOLT
€ 2.00
8
0421111189
ref: 8
PIN
€ 2.00
9
0915910026
ref: 9
NUT
€ 6.00
10
0916810019
ref: 10
GASKET (NAS)
€ 3.50
11
0916810018
ref: 11
GASKET(10X22X2.3) (NAS)
€ 3.00
12
0211205088
ref: 12
SCREW
€ 2.00
13
0916805010
ref: 13
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
14
0924714012
ref: 14
PLUG (14X12)
€ 3.50
15
0916814004
ref: 15
GASKET(14X19.2X2) (NAS)
€ 2.50
16
0924123002
ref: 16
PLUG
€ 8.50
17
1115245000
ref: 17
MODEL T
PAD
€ 3.50
18-1
0948200149
ref: 18-1
SPARK PLUG DR8ES-L
€ 3.50
18-2
0948200223
ref: 18-2
PLUG,SPARK(X24ESR-U)
€ 3.50
18-3
NOTUSED
ref: 18-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18-4
NOTUSED
ref: 18-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
1311044200
ref: 19
PIPE,INTAKE,R
€ 30.50
20
1312044200
ref: 20
PIPE,INTAKE,L
€ 29.00
21
0928034002
ref: 21
O-RING
€ 3.50
22
0211206208
ref: 22
SCREW
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
€ 2.50
24
0940254303
ref: 24
CLAMP
€ 4.00
