REAR SWINGING ARM

GSX400E 1980 (T) (E02 E04 E22 E24)

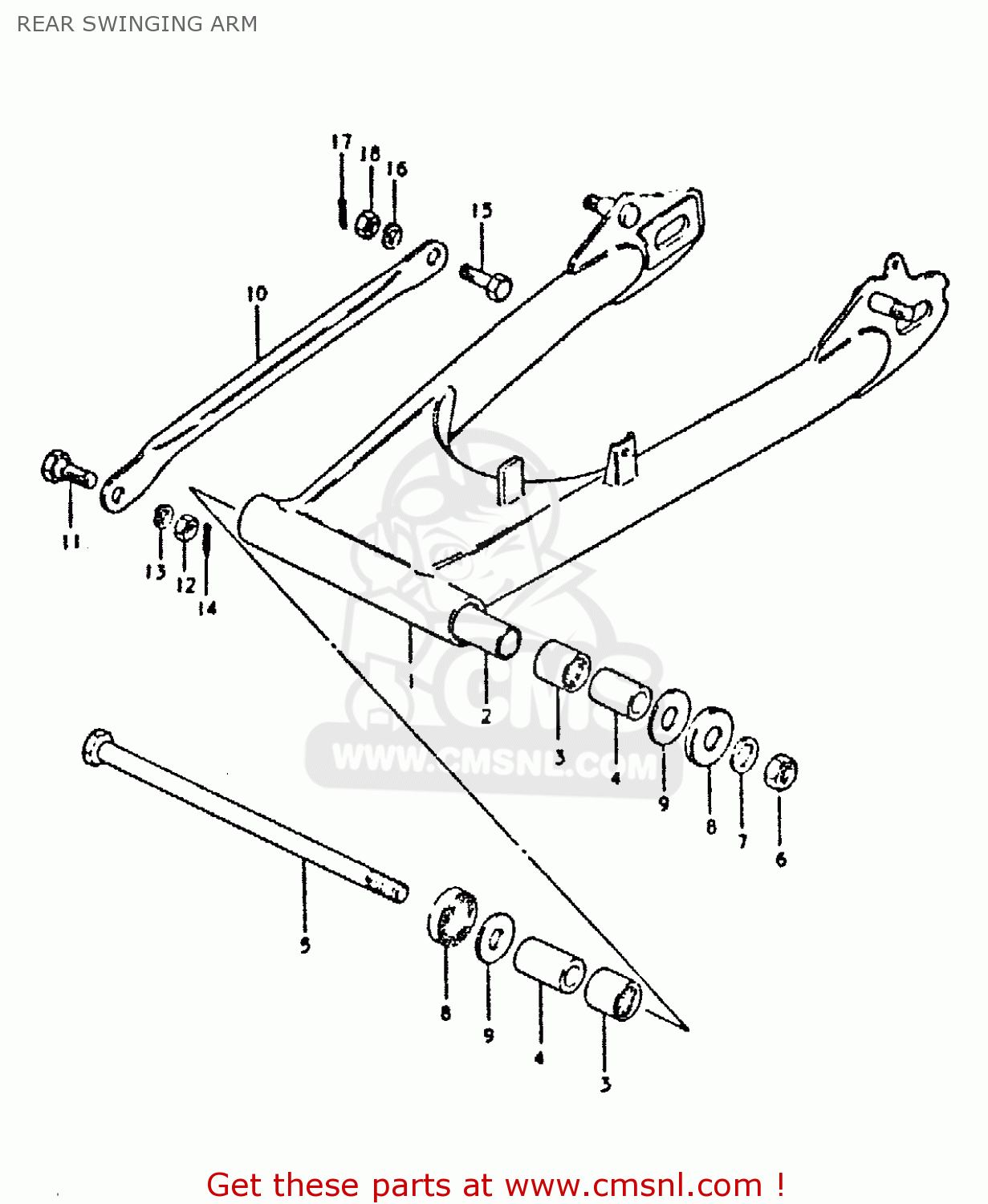

Rear swinging arm diagram GSX400E 1980 (T) (E02 E04 E22 E24)

REAR SWINGING ARM GSX400E 1980 (T) (E02 E04 E22 E24)
REAR SWINGING ARM GSX400E 1980 (T) (E02 E04 E22 E24)
REAR SWINGING ARM GSX400E 1980 (T) (E02 E04 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6110044820019
ref: 1-1
TO 61100-44821-019
SWING ARM ASSEMBLY,REAR
€ 180.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
6128144001
ref: 2
SPACER,SWINGINGARM CTR
6128144001
€ 12.00
3
0926322017
ref: 3
BEARING(22X29X30)
0926322017
€ 18.50
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
6125145001
€ 12.50
5
6121131001
ref: 5
SHAFT,REAR SWING ARM
6121131001
€ 62.50
6
0831921148
ref: 6
NUT 14MM
0831921148
€ 3.00
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8-1
6126245003
ref: 8-1
MODEL T
COVER,REAR SWING ARM DUST
€ 4.50
8-2
6126245002
ref: 8-2
MODEL X
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
9
0916014020
ref: 9
WASHER(14.2X34X1)
0916014020
€ 2.50
10
6431144000
ref: 10
TORQUE LINK,REAR
€ 13.00
11
0911110010
ref: 11
BOLT(10X24.5)
0911110010
€ 5.50
12
0831022108
ref: 12
NUT
0831022108
€ 2.50
13
0832121108
ref: 13
LOCK WASHER
0832121108
€ 2.00
14
0411120158
ref: 14
PIN
0411120158
€ 1.50
15
0910110003
ref: 15
BOLT(10X31)
0910110003
€ 4.00
16
0832121108
ref: 16
LOCK WASHER
0832121108
€ 2.00
17
0411120158
ref: 17
PIN
0411120158
€ 1.50
18
0831011108
ref: 18
NUT
0831011108
€ 2.50
