GENERATOR

GSX400E 1980 (T) (E02 E04 E22 E24)

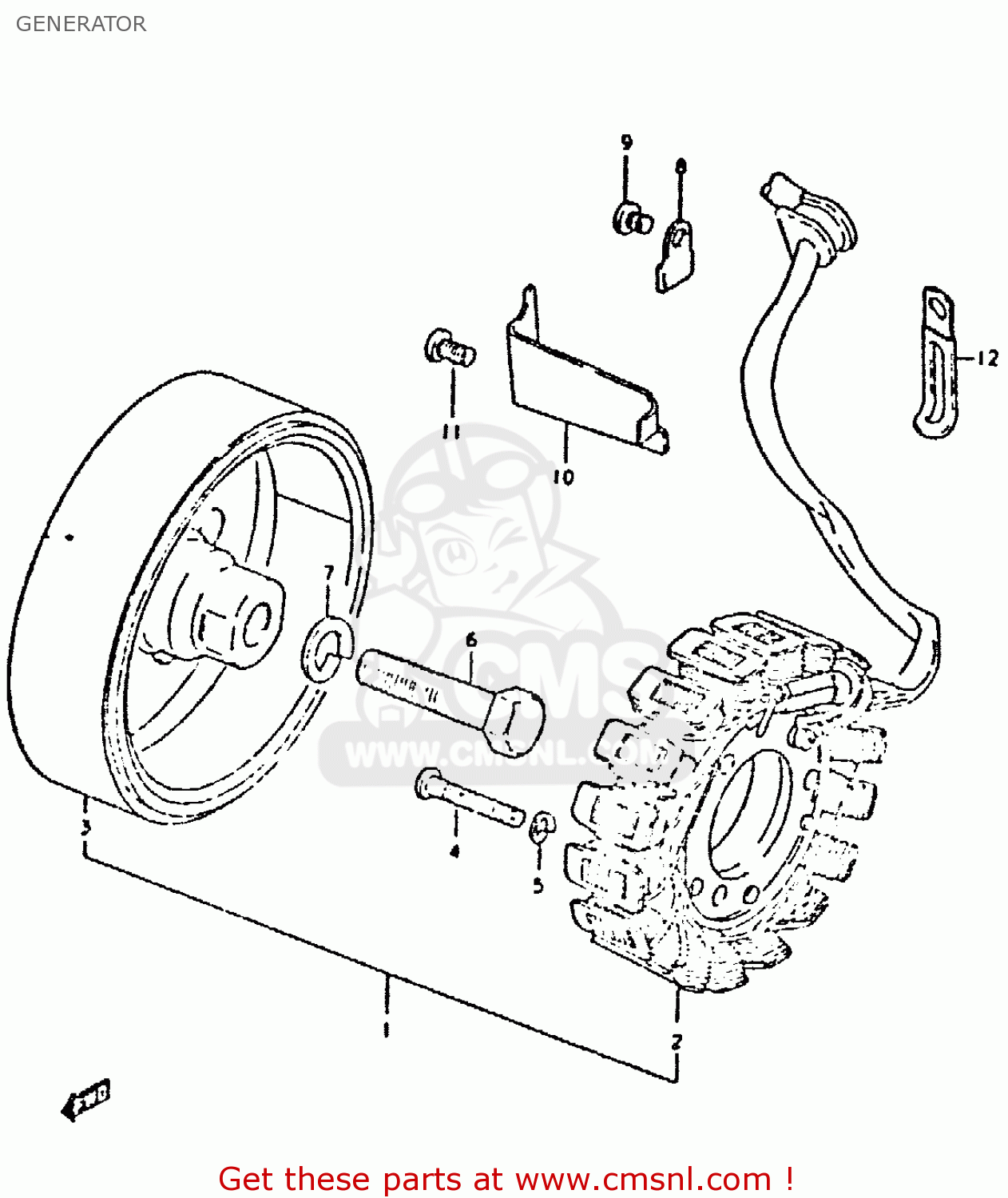

Generator diagram GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

3140045020
ref: 1

GENERATOR ASSEMBLY

€ 719.50

3140145020
ref: 2

STATOR ASSEMBLY

€ 334.50

3140245020
ref: 3

ROTOR ASSEMBLY

€ 401.50

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0110712458
ref: 6

BOLT 12X45

€ 5.50

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205068
ref: 9

SCREW

€ 4.00

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 11

SCREW

€ 1.50

0940406401
ref: 12

CLAMP L:35

€ 2.50
