CYLINDER

GSX400E 1980 (T) (E02 E04 E22 E24)

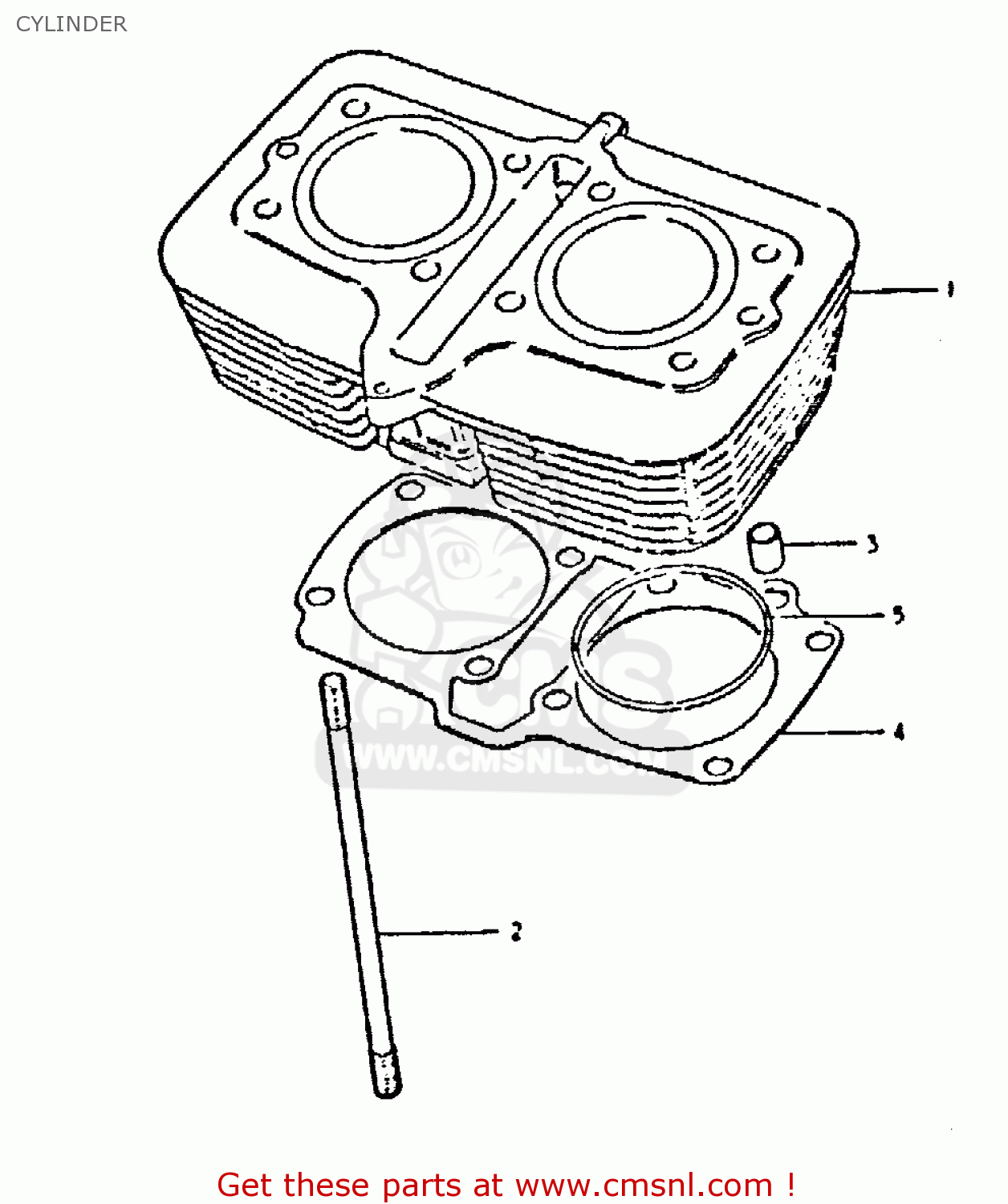

Cylinder diagram GSX400E 1980 (T) (E02 E04 E22 E24)

CYLINDER GSX400E 1980 (T) (E02 E04 E22 E24)

CYLINDER GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1121044200
ref: 1

CYLINDER

€ 515.50

2

0910810028
ref: 2

STUD

€ 9.00

3

0421111189
ref: 3

PIN

€ 2.00

4-1

1124144100
ref: 4-1

GASKET,CYLINDER (MCA)

€ 12.50

4-2

NOTUSED
ref: 4-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50
