CYLINDER HEAD COVER

GSX400E 1980 (T) (E02 E04 E22 E24)

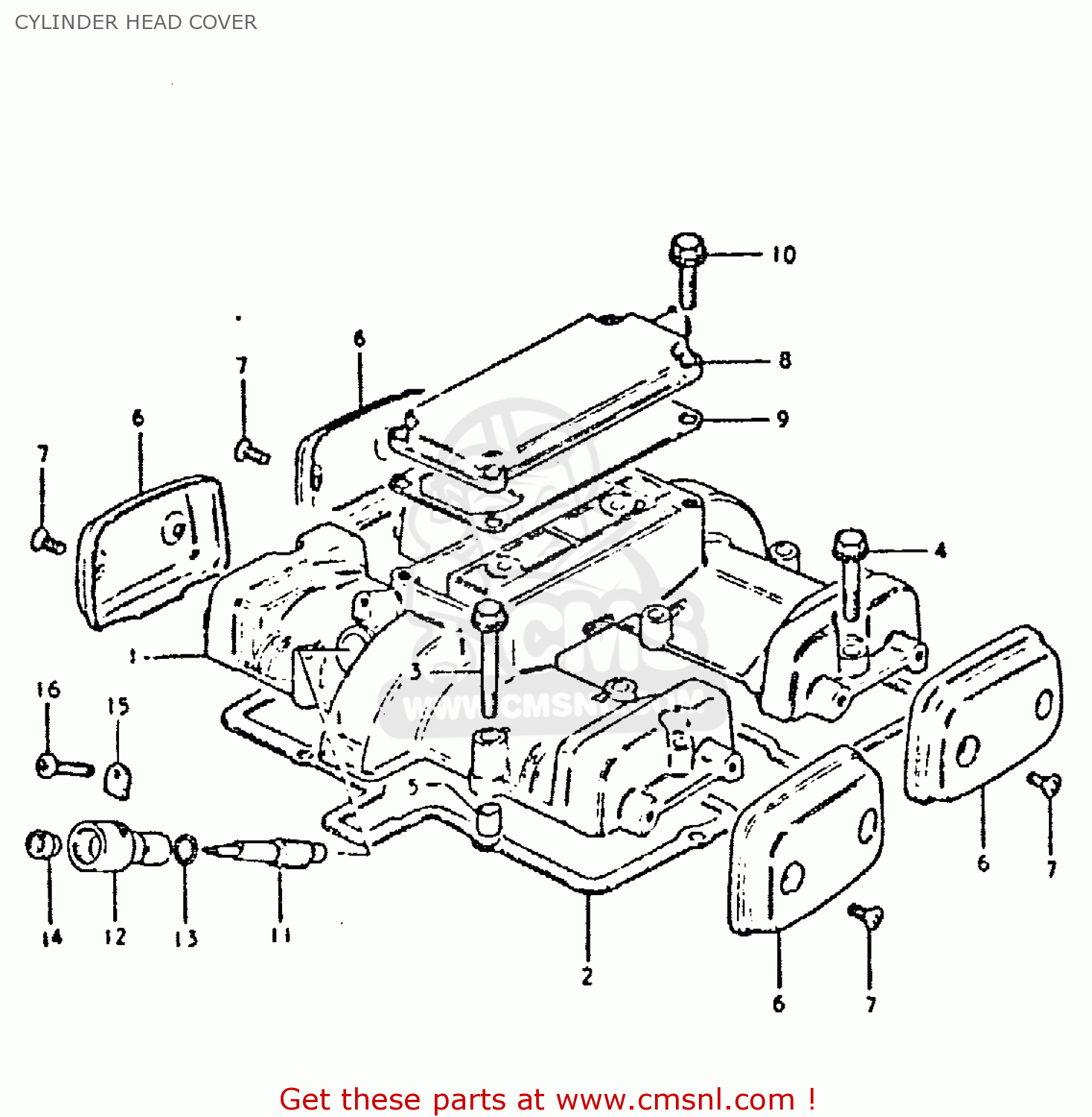

Cylinder head cover diagram GSX400E 1980 (T) (E02 E04 E22 E24)

CYLINDER HEAD COVER GSX400E 1980 (T) (E02 E04 E22 E24)
CYLINDER HEAD COVER GSX400E 1980 (T) (E02 E04 E22 E24)
CYLINDER HEAD COVER GSX400E 1980 (T) (E02 E04 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1117144201
ref: 1
COVER, CYLINDER HEAD
€ 0.00
2
1117344202
ref: 2
FROM 11173-44201
GASKET (MCA)
1117344202
€ 31.00
3
0151706358
ref: 3
BOLT 6X35
0151706358
€ 2.50
4
0151706308
ref: 4
BOLT
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6-1
1117449201
ref: 6-1
MODEL T, TO 11190-11
CAP,CYLINDER HEAD COVER
€ 28.50
6-2
1117449210
ref: 6-2
MODEL X
CAP,CYLINDER HEAD COVER
1117449210
€ 28.50
7
0213205127
ref: 7
SCREW 5X12
0213205127
€ 2.50
8
1117645400
ref: 8
COVER,BREATHER
€ 24.50
9
1117745400
ref: 9
GASKET (MCA)
1117745400
€ 19.00
10
0151706208
ref: 10
BOLT,REAR
€ 2.50
11
2643147002
ref: 11
GEAR,TACHOMETER DRIVEN
2643147002
€ 29.00
12
2644145000
ref: 12
SLEEVE,TACHOMETER DRIVE
2644145000
€ 18.00
13
2645145000A
ref: 13
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
14
0928905002
ref: 14
SEAL,OIL(5X12X8)
0928905002
€ 11.00
15
2644933000
ref: 15
PLATE,TACH DRIVE GEAR SLEEVE
2644933000
€ 3.50
16
0912805101
ref: 16
SCREW(5X12)
0912805101
€ 1.50
