FRONT BRAKE HOSE

GSX400E 1980 (T) (E02 E04 E22 E24)

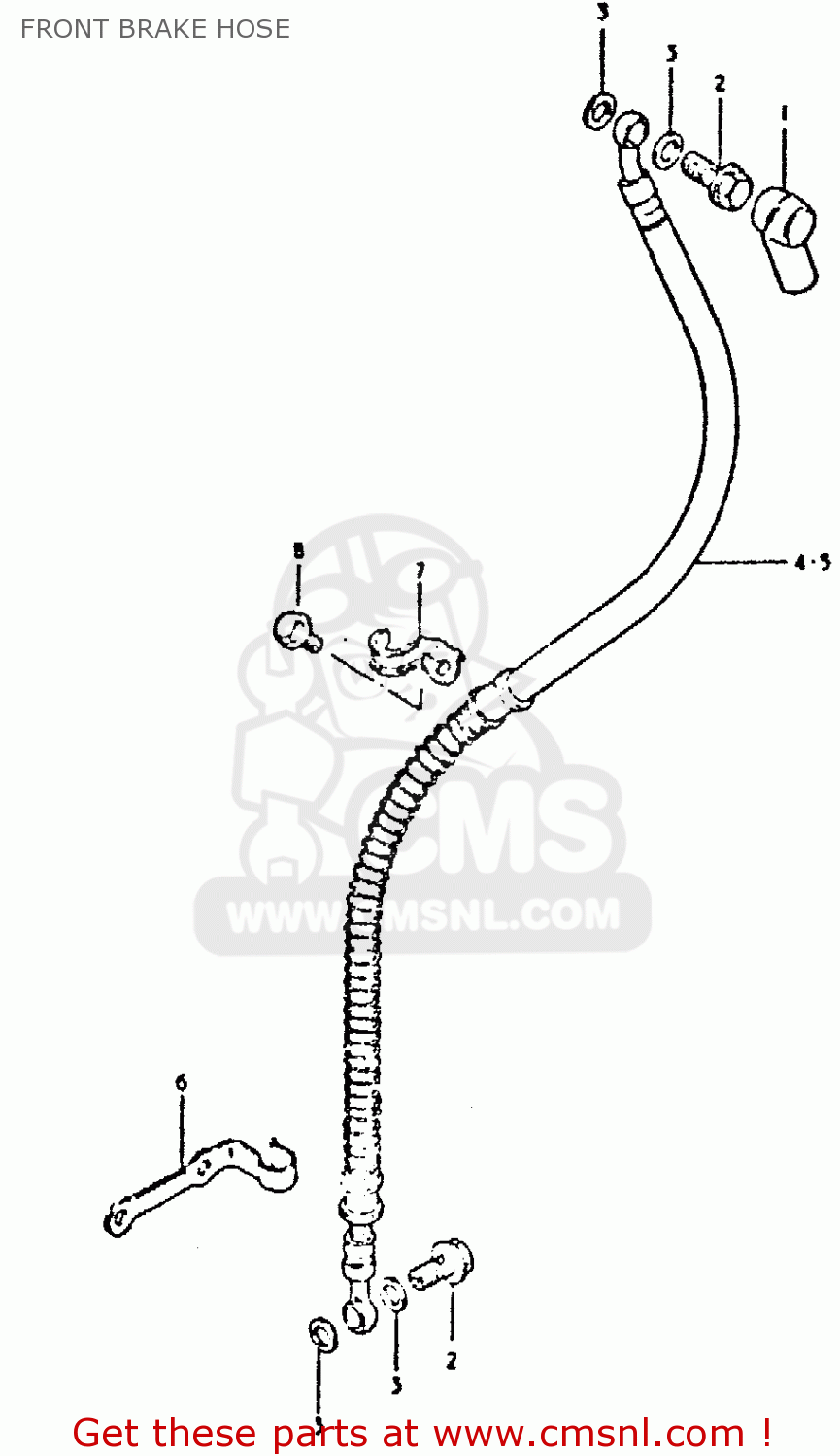

Front brake hose diagram GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

0936010007
ref: 2

BOLT,UNION

€ 6.50

0916110005
ref: 3

WASHER

€ 2.00

5948011402
ref: 4
FROM 59480-11401

HOSE,FRONT BRAKE

€ 65.50

5948011412
ref: 5
FROM 59480-11412

HOSE,FRONT BRAKE

€ 60.00

5926849001
ref: 6

GUIDE,BRAKE HOSE NO.2

€ 7.00

5924611400
ref: 7

GUIDE,BRAKE HOSE NO.3

€ 4.50

8-1

0151706108
ref: 8-1
GSX400ET/EX

BOLT

€ 2.50

8-2

0151706168
ref: 8-2
GSX400ST/SX

BOLT

€ 1.50
