COWLING (GSX400SX E2, E4)

GSX400E 1980 (T) (E02 E04 E22 E24)

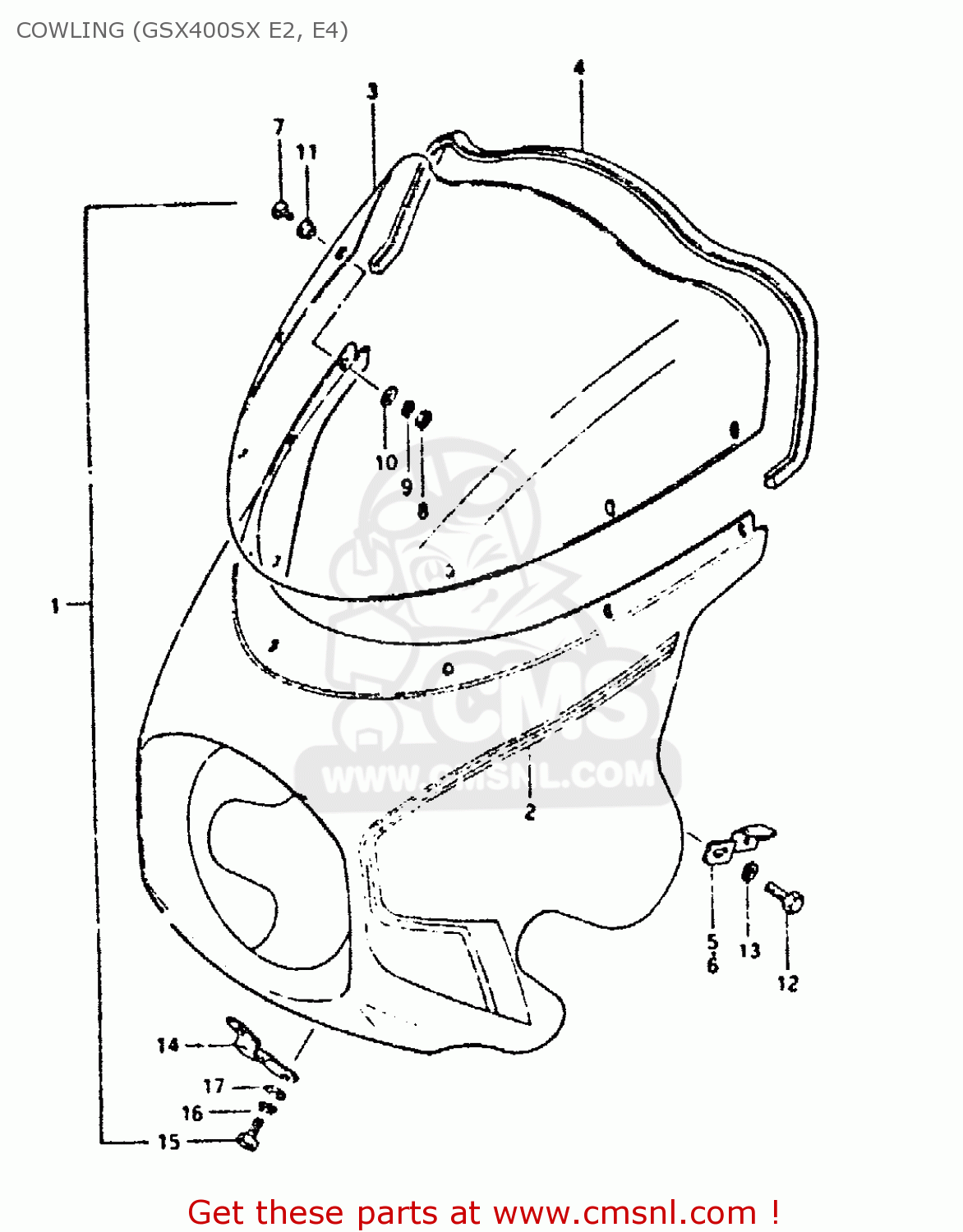

Cowling (gsx400sx e2, e4) diagram GSX400E 1980 (T) (E02 E04 E22 E24)

COWLING (GSX400SX E2, E4) GSX400E 1980 (T) (E02 E04 E22 E24)

COWLING (GSX400SX E2, E4) GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

9440044180019
ref: 1-1

COWLING ASSY

€ 0.00

1-2

944004418010V
ref: 1-2

COWLING ASSY

€ 0.00

2-1

681904414075U
ref: 2-1
FOR 94400-44180-019

TAPE SET

€ 0.00

2-2

681904414075V
ref: 2-2
FOR 94400-44180-10V

TAPE SET

€ 0.00

3

9461144110
ref: 3

WINDOW, COWLING

€ 0.00

4

9463144110
ref: 4

MOLD,COWLING

€ 18.00

5

9451044100
ref: 5

BRACKET,COWLING,RIGHT

€ 10.00

6

9452044100
ref: 6

BRACKET, LH

€ 8.00

7

0214205125
ref: 7

SCREW M5X12 DIN 7985/N

€ 1.50

8

0831011058
ref: 8

NUT

€ 2.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0832221058
ref: 10

WASHER

€ 2.50

11

0932005008
ref: 11

CUSHION

€ 5.00

12

0110706108
ref: 12

BOLT

€ 2.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

9455144100
ref: 14

BRACKET,COWLING,LOWER

€ 17.00

15

0110706128
ref: 15

BOLT

€ 2.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00
