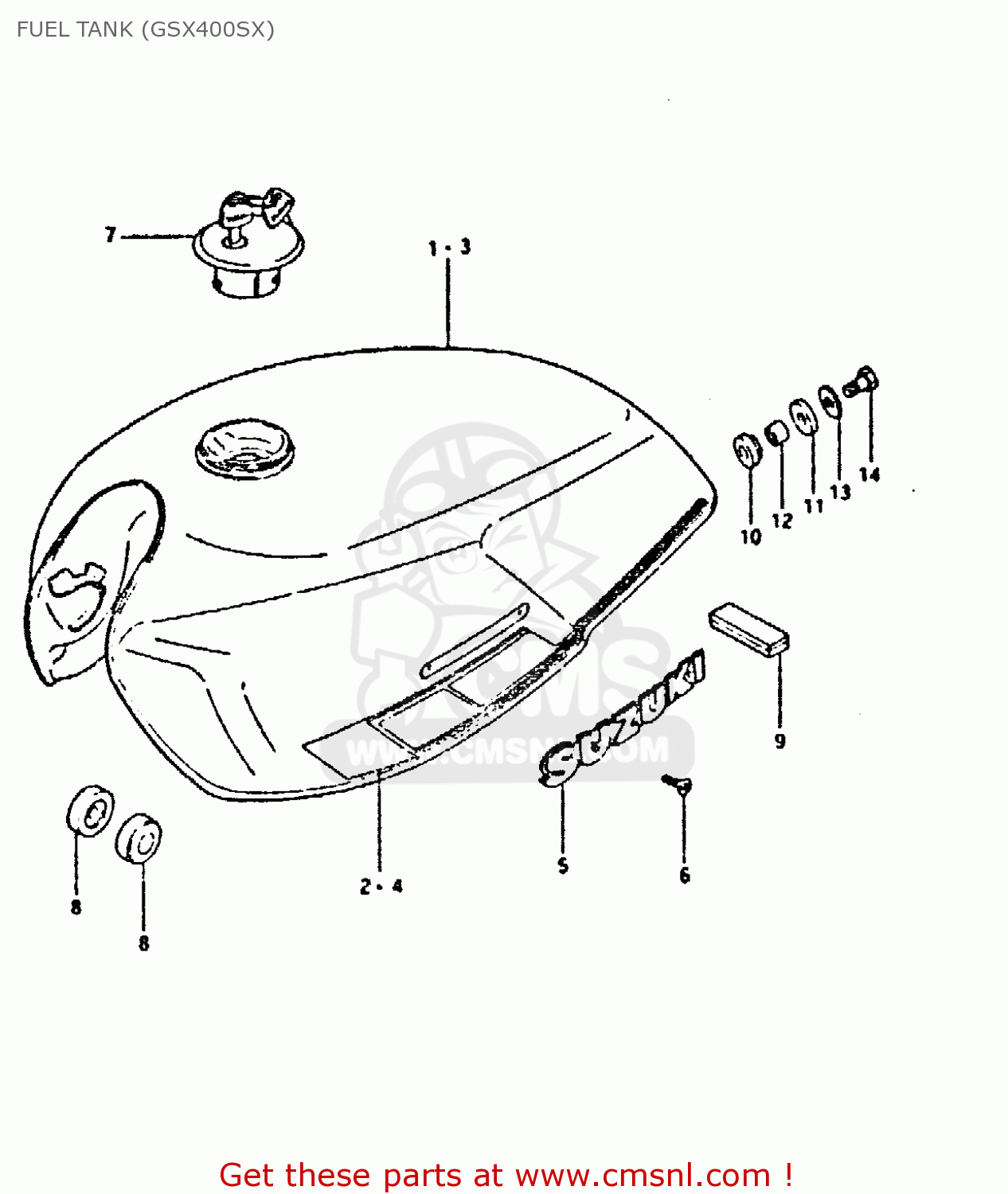

FUEL TANK (GSX400SX)

GSX400E 1980 (T) (E02 E04 E22 E24)

Fuel tank (gsx400sx) diagram GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

4410044180019
ref: 1

TANK, FUEL (BLACK)

€ 577.00

681104418075S
ref: 2

TAPE SET

€ 0.00

441004418010V
ref: 3

TANK, FUEL (WHITE)

€ 577.00

681104418067H
ref: 4

TAPE SET

€ 0.00

6811149000
ref: 5

EMBLEM

€ 22.00

0213203065
ref: 6

SCREW 3X6

€ 2.00

4420030703
ref: 7

CAP SET,FUEL TANK

€ 112.00

0932910007
ref: 8

CUSHION

€ 3.00

0932901005
ref: 9

CUSHION

€ 11.50

0932012010
ref: 10

CUSHION

€ 3.00

0932012023
ref: 11

CUSHION

€ 2.50

0918008067
ref: 12

SPACER(8.5X12X19)

€ 2.50

0916008002
ref: 13

WASHER (8.5X29X1.6)

€ 2.00

0110708308
ref: 14

BOLT (8X30)

€ 2.50
