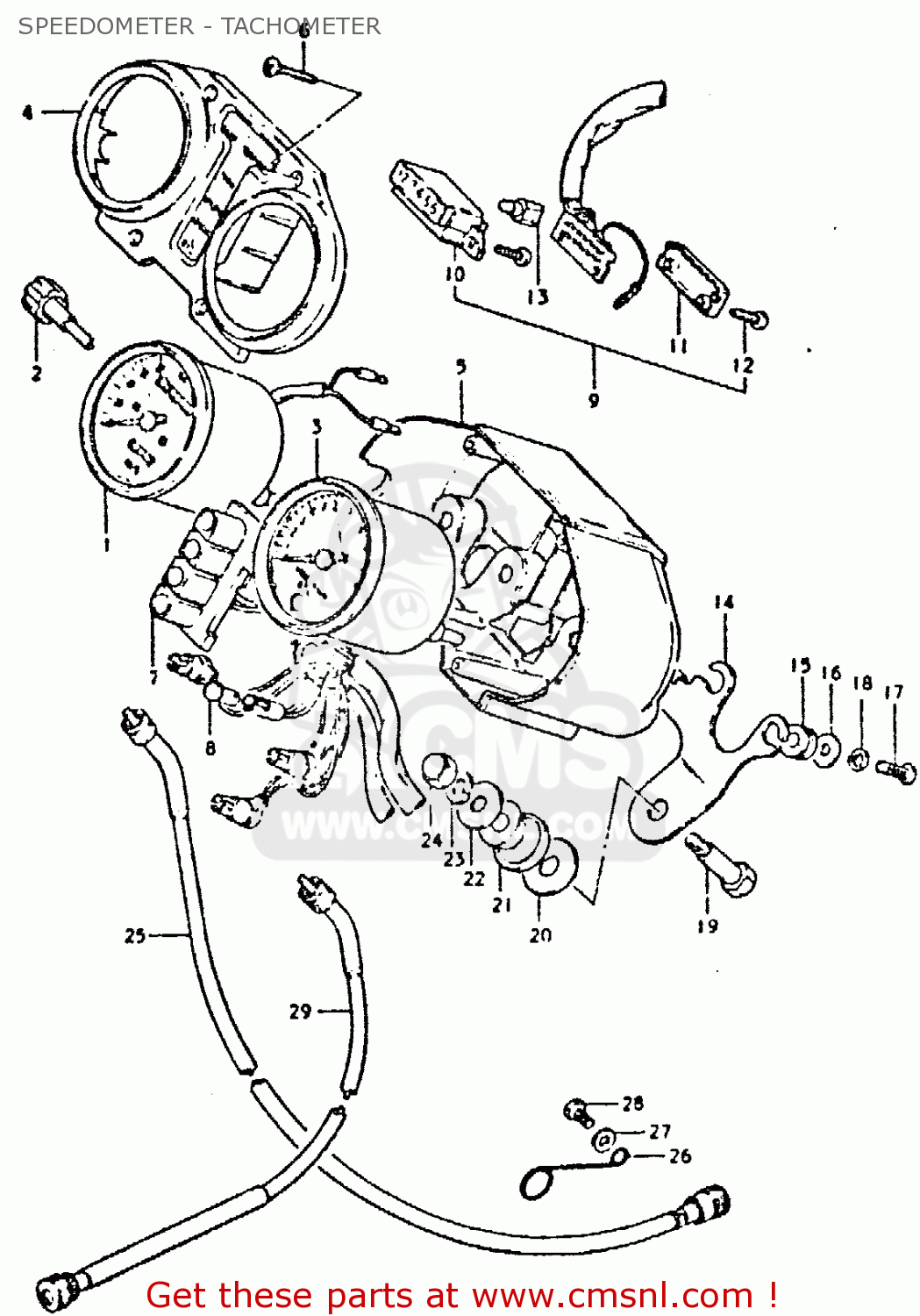

SPEEDOMETER - TACHOMETER - GSX400E 1980 (T) (E02 E04 E22 E24)

ref

part #

description

quantity

1-1

3411044130
ref: 1-1

METER,SPEEDOMETER (KM/MPH)

€ 285.50

1-2

NOTUSED
ref: 1-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2

3412444100
ref: 2

KNOB,TRIP METER

€ 4.00

3

3421044130
ref: 3

TACHOMETER

€ 293.50

4

3415144100
ref: 4

CASE,METER,UPPER

€ 51.50

5

3415244100
ref: 5

VISOR,LWR

€ 96.00

6

0312104208
ref: 6

SCREW

€ 1.50

7-1

3417344100
ref: 7-1
MODEL T

SOCKET,SPEEDOMETER

€ 23.50

7-2

3417344101
ref: 7-2
MODEL X

SOCKET,SPEEDOMETER

€ 10.00

8-1

0947112001
ref: 8-1
MODEL T

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

8-2

0947112028
ref: 8-2
MODEL X

BULB(12V3.4W,T10)

€ 3.50

9

3645044100
ref: 9

INDICATOR ASSEMBLY,GEAR POSITION

€ 112.00

10

3645245100
ref: 10

CASE,GEAR INDICATOR

€ 14.50

11

3645445100
ref: 11

COVER,LWR

€ 7.00

12

3645645100
ref: 12

SCREW,GEAR INDICATOR

€ 2.00

13

0947112071
ref: 13

BULB(14V1.12W)

€ 5.00

14

3495044100
ref: 14

BRACKET,METER

€ 23.00

15

3418944100
ref: 15

CUSHION

€ 2.50

16

3418144100
ref: 16

WASHER,METER

€ 1.50

17

0211204128
ref: 17

SCREW

€ 1.50

18

0832121048
ref: 18

LOCK WASHER

€ 2.00

19

0911108040
ref: 19

BOLT

€ 4.00

20

0832211108
ref: 20

WASHER

€ 2.50

21-1

3495631000
ref: 21-1
MODEL T

CUSHION,METER

€ 4.50

21-2

3495631001
ref: 21-2
MODEL X

CUSHION,METER BRACKET

€ 4.50

22

0916008047
ref: 22

WASHER(8.5X23X1.2)

€ 2.00

23

0832121088
ref: 23

LOCK WASHER

€ 2.00

24

0831311088
ref: 24

NUT

€ 2.50

25-1

3491045111
ref: 25-1
MODEL T, TO 34910-45

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

25-2

3491045112
ref: 25-2
MODEL X

CABLE ASSEMBLY,SPEEDOMETER

€ 31.50

26

3493845100
ref: 26

CLAMP,SPEEDOMETER CABLE

€ 14.50

27

0832221068
ref: 27

WASHER

€ 2.00

28

0110706168
ref: 28

BOLT, UPPER

€ 3.00

29

3494044120
ref: 29

CABLE, TACHOMETER

€ 44.00

SPEEDOMETER - TACHOMETER
