FOOTREST
GSX400E 1980 (T) (E02 E04 E22 E24)

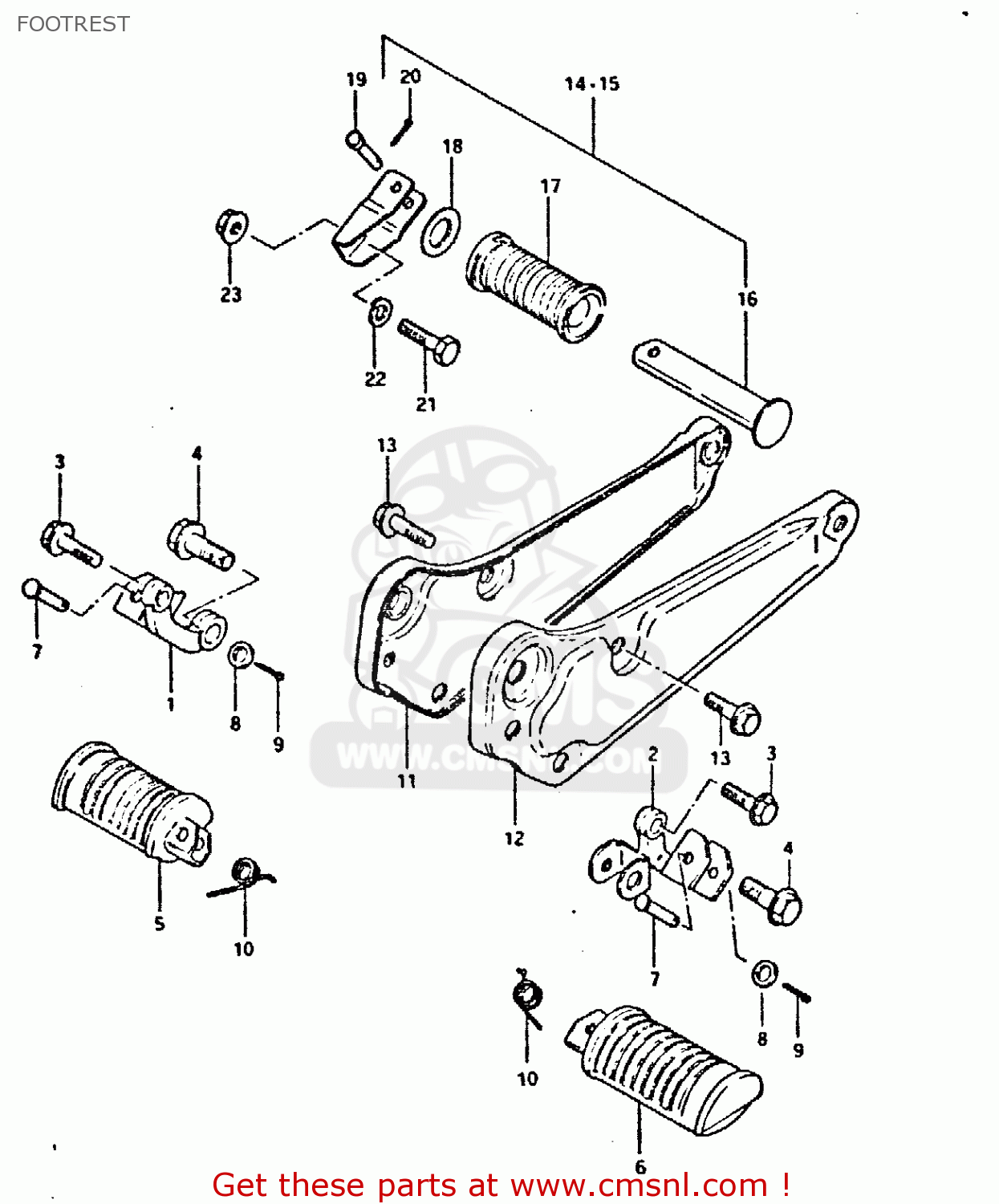

Footrest diagram GSX400E 1980 (T) (E02 E04 E22 E24)
FOOTREST GSX400E 1980 (T) (E02 E04 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
4351044100
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 31.00
2
4352044100
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 42.00
3
0152708307
ref: 3
BOLT
€ 3.50
4
0152710308
ref: 4
BOLT
€ 3.50
5
4355049002
ref: 5
RUBBER,FRONT FOOTREST
€ 22.50
6
4356049002
ref: 6
FOOTREST
€ 22.50
7
0920008002
ref: 7
PIN
€ 2.00
8
0832211088
ref: 8
WASHER
€ 2.00
9
0411120158
ref: 9
PIN
€ 1.50
10
0944814012
ref: 10
SPRING
€ 3.00
11
4381044100
ref: 11
BRACKET
€ 54.50
12
4382044100
ref: 12
BRACKET
€ 46.00
13
0152710207
ref: 13
BOLT
€ 3.00
14
4360044100
ref: 14
FOOTREST ASSEMBLY,REAR
€ 10.00
15
4370044100
ref: 15
FOOTREST ASSEMBLY,PILLION
€ 10.50
16
4361044000
ref: 16
BAR,PILLION FOOTREST
€ 14.50
17
4361244100
ref: 17
RUBBER,PILLION FOOTREST
€ 4.50
18
0916019006
ref: 18
WASHER (19.5X32X2)
€ 2.00
19
0920006010
ref: 19
PIN
€ 2.50
20
0411120158
ref: 20
PIN
€ 1.50
21
0110710358
ref: 21
BOLT,M10X1.25X
€ 2.50
22
0832121108
ref: 22
LOCK WASHER
€ 2.00
23
0831616108
ref: 23
NUT
€ 2.00
