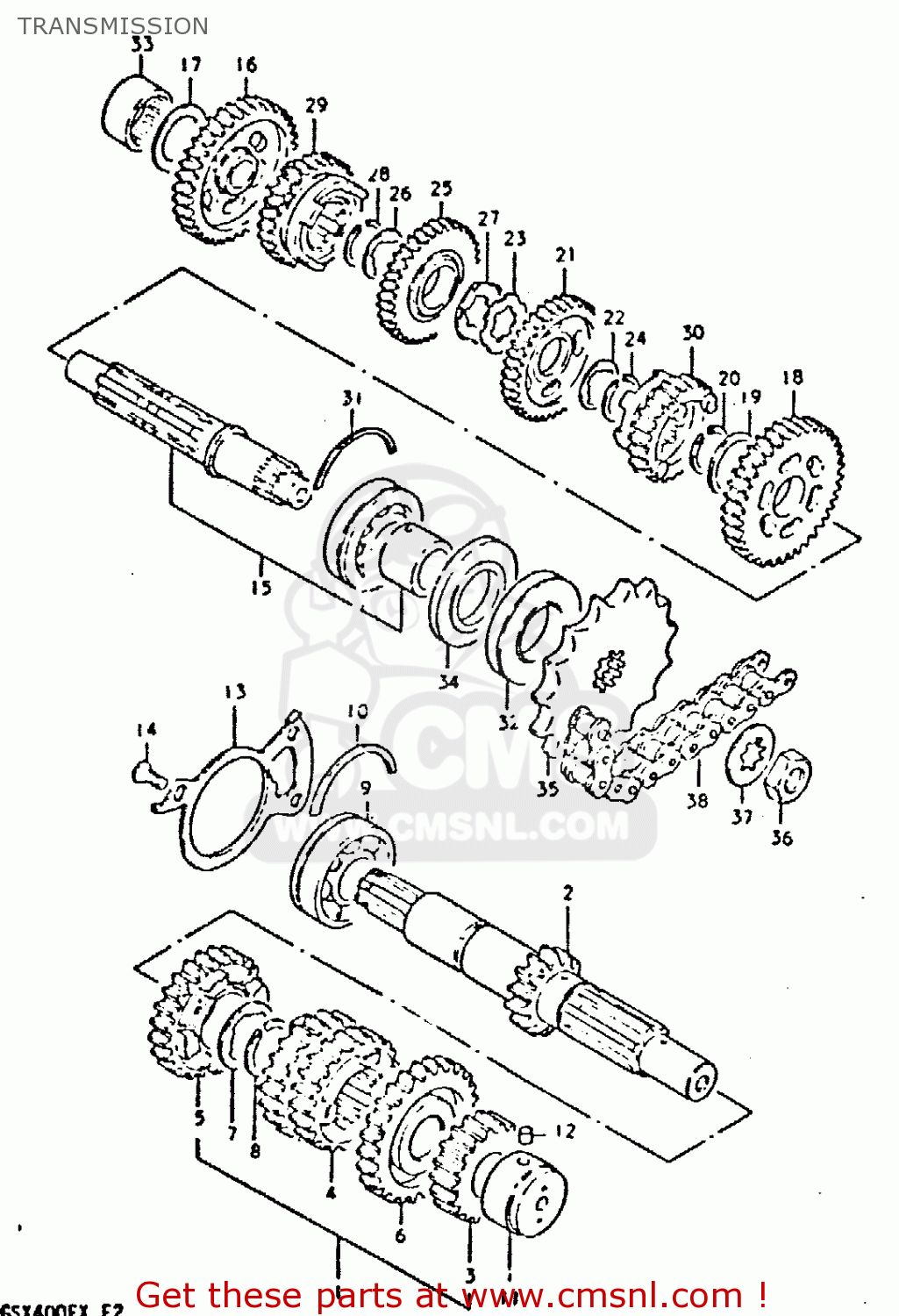

TRANSMISSION

ref

part #

description

quantity

1

2412044100
ref: 1

SHAFT,COUNTER

€ 178.00

2

2412144100
ref: 2

SHAFT,COUNTER

€ 61.50

3

2422144001
ref: 3

GEAR,2ND DRIVE(NT:18)

€ 83.00

4

2423144001
ref: 4

GEAR,THIRD DRIVE

€ 69.50

5

2425044001
ref: 5

GEAR,FIFTH DRIVE

€ 66.00

6

2426044000
ref: 6

GEAR,SIXTH DRIVE

€ 58.50

7

0821125341
ref: 7

WASHER

€ 3.50

8

0938025010
ref: 8

CIRCLIP

€ 3.00

9

0926225051
ref: 9

BEARING(25X62X17)

€ 59.50

10

0939062006
ref: 10

C-RING

€ 5.00

11

0926320026
ref: 11

ROLLER BEARING (20X34X2

€ 37.00

12

0422107129
ref: 12

PIN

€ 1.50

13

2474144100
ref: 13

PLATE,COUNTERSHAFT BEARING

€ 10.50

14

0212206168
ref: 14

SCREW

€ 2.00

15

2410044810
ref: 15

SHAFT,DRIVE

€ 125.00

16

2431044000
ref: 16

GEAR,FIRST DRIVEN

€ 98.50

17

0821120341
ref: 17

WASHER

€ 2.00

18

2432044002
ref: 18

GEAR,SECOND DRIVEN

€ 79.50

19

0821125321
ref: 19

WASHER

€ 3.00

20

0938025010
ref: 20

CIRCLIP

€ 3.00

21

2433144002
ref: 21

GEAR,THIRD DRIVEN

€ 89.50

22

0916725012
ref: 22

WASHER,LOCK

€ 3.50

23

0916725013
ref: 23

WASHER,LOCK

€ 2.50

24

0938025010
ref: 24

CIRCLIP

€ 3.00

25

2434144002
ref: 25

GEAR,FOURTH DRIVEN

€ 82.50

26

0916725012
ref: 26

WASHER,LOCK

€ 3.50

27

0916925001
ref: 27

WASHER

€ 2.00

28

0938025010
ref: 28

CIRCLIP

€ 3.00

29

2435144001
ref: 29

GEAR,5TH DRIVEN(NT:25)

€ 108.00

30

2436144001
ref: 30

GEAR,SIXTH DRIVEN

€ 121.00

31

0939062006
ref: 31

C-RING

€ 5.00

32-1

0928332019
ref: 32-1
FLANGED TYPE

SEAL,OIL(32X64X8)

€ 13.50

32-2

0928332015
ref: 32-2

SEAL,OIL(32X62X7)

€ 15.50

33

0926320028
ref: 33

ROLLER BEARING (20X34X1

€ 34.00

34

0928232002
ref: 34

SEAL,OIL(32X62X5.5)

€ 11.50

35

2751147000
ref: 35

SPROCKET,ENGINE

€ 27.50

36

0914020009
ref: 36

NUT

€ 9.00

37

0916725011
ref: 37

WASHER

€ 2.50

38

2760044030
ref: 38

CHAIN ASSEMBLY,DRIVE

€ 168.50
