CRANKCASE
GSX400E 1980 (T) (E02 E04 E22 E24)

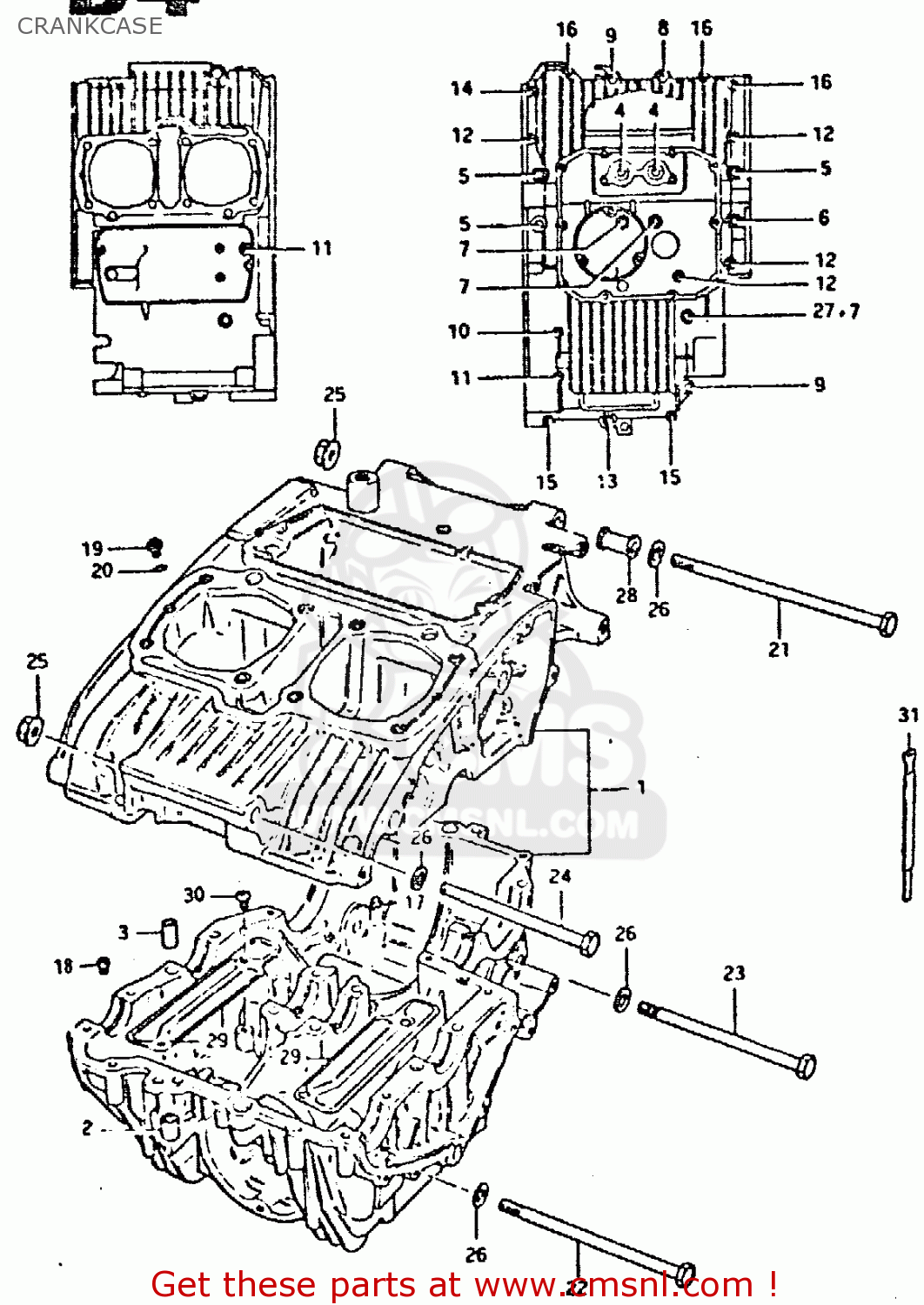

Crankcase diagram GSX400E 1980 (T) (E02 E04 E22 E24)
CRANKCASE GSX400E 1980 (T) (E02 E04 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130044860
ref: 1-1
TO 11300-44861 WITH
CRANKCASE SET
€ 1,272.50
1-2
1130044861
ref: 1-2
CRANKCASE ASSEMBLY
€ 1,272.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910608014
ref: 4
BOLT
€ 4.00
5
0910308020
ref: 5
BOLT
€ 8.00
6-1
0910308024
ref: 6-1
FOR 11300-44860
BOLT
€ 3.00
6-2
0910308024
ref: 6-2
FOR 11300-44861
BOLT
€ 3.00
7-1
0910308009
ref: 7-1
FOR 11300-44860
BOLT
€ 5.00
7-2
0910308009
ref: 7-2
FOR 11300-44861
BOLT
€ 5.00
8
0151708658
ref: 8
BOLT 8X65
€ 3.00
9
0151708458
ref: 9
BOLT (8X45)
€ 3.00
10
0910306031
ref: 10
BOLT
€ 3.50
11
0910306025
ref: 11
BOLT
€ 3.50
12
0151706908
ref: 12
BOLT (6X90)
€ 2.00
13
0151706708
ref: 13
BOLT (6X70)
€ 3.00
14
0151706658
ref: 14
BOLT 6X65
€ 3.00
15
0151706508
ref: 15
BOLT ,6X50
€ 2.00
16
0151706458
ref: 16
BOLT,UNDER
€ 2.50
17
0949328008
ref: 17
JET
€ 0.00
18
0949332002
ref: 18
JET
€ 11.50
19
0949324008
ref: 19
JET
€ 16.00
20
0928003001
ref: 20
TO 09280-03003
O-RING
€ 2.50
21
0910110010
ref: 21
BOLT 10X250
€ 49.50
22
0910010033
ref: 22
BOLT(10X210)
€ 46.50
23
0910010092
ref: 23
BOLT 10X160
€ 28.50
24
0910010051
ref: 24
BOLT
€ 6.50
25
0831931105
ref: 25
NUT 10MM
€ 3.00
26
0832211108
ref: 26
WASHER
€ 2.50
27
0916808008
ref: 27
GASKET 8.2X14X1 (NAS)
€ 1.00
28
1161044100
ref: 28
SPACER,ENGINE MOUNT
€ 9.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
€ 3.00
30
0211206088
ref: 30
SCREW
€ 2.00
31
0940718301
ref: 31
CLAMP
€ 6.00
