GSX400E 1980 (T) (E02 E04 E22 E24)

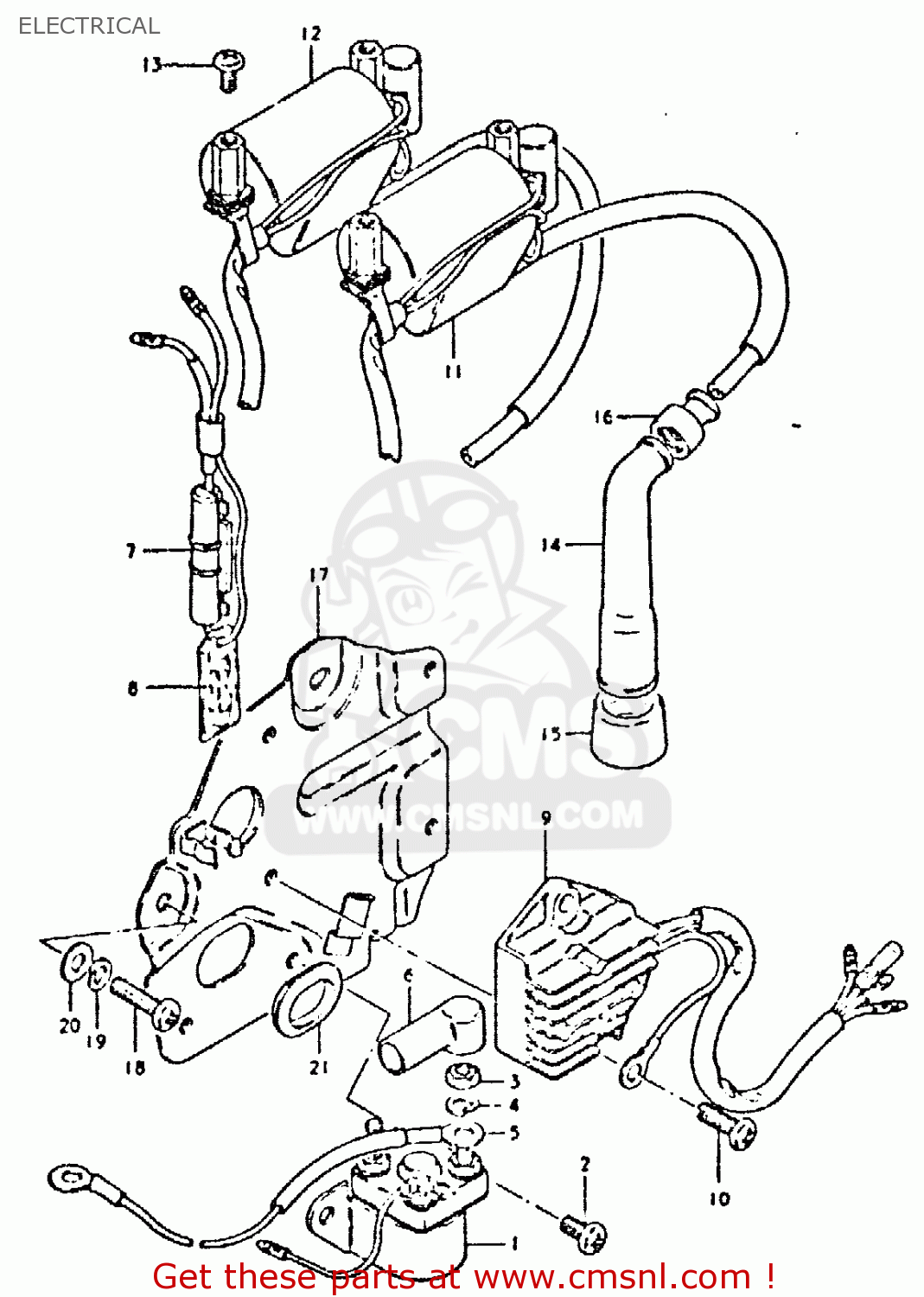

Electrical diagram GSX400E 1980 (T) (E02 E04 E22 E24)

ELECTRICAL GSX400E 1980 (T) (E02 E04 E22 E24)
ELECTRICAL GSX400E 1980 (T) (E02 E04 E22 E24)
ELECTRICAL GSX400E 1980 (T) (E02 E04 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385044110
ref: 5
CORD,BATTERY MINUS
€ 8.50
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
3674015010
ref: 7
BOX ASSEMBLY,FUSE
3674015010
€ 11.00
8
0948115001
ref: 8
FUSE(15A)
0948115001
€ 3.00
9
3280044040
ref: 9
RECTIFIER ASSEMBLY
€ 248.00
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11
3341044120
ref: 11
COIL ASSEMBLY,IGNITION
3341044120
€ 146.50
12
3342044120
ref: 12
COIL ASSEMBLY,IGNITION
3342044120
€ 146.50
13
0211205108
ref: 13
SCREW
0211205108
€ 2.00
14
3351045010
ref: 14
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
15
3354132410
ref: 15
SEAL,SPARK PLUG
€ 7.00
16
3354298000
ref: 16
SEAL,SPARK PLU
3354298000
€ 4.50
17-1
4741044100
ref: 17-1
MODEL T, TO 47410-44
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
17-2
4741044101
ref: 17-2
MODEL X
PLATE,ELECTRIC PARTS H
€ 0.00
18
0211206208
ref: 18
SCREW
€ 2.00
19
0832121068
ref: 19
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
0930819001
ref: 21
MODEL T
GROMMET
0930819001
€ 2.50
