Buy Suzuki GSX Parts Online


FRONT MASTER CYLINDER

GSX400E 1980 (T) (E02 E04 E22 E24)

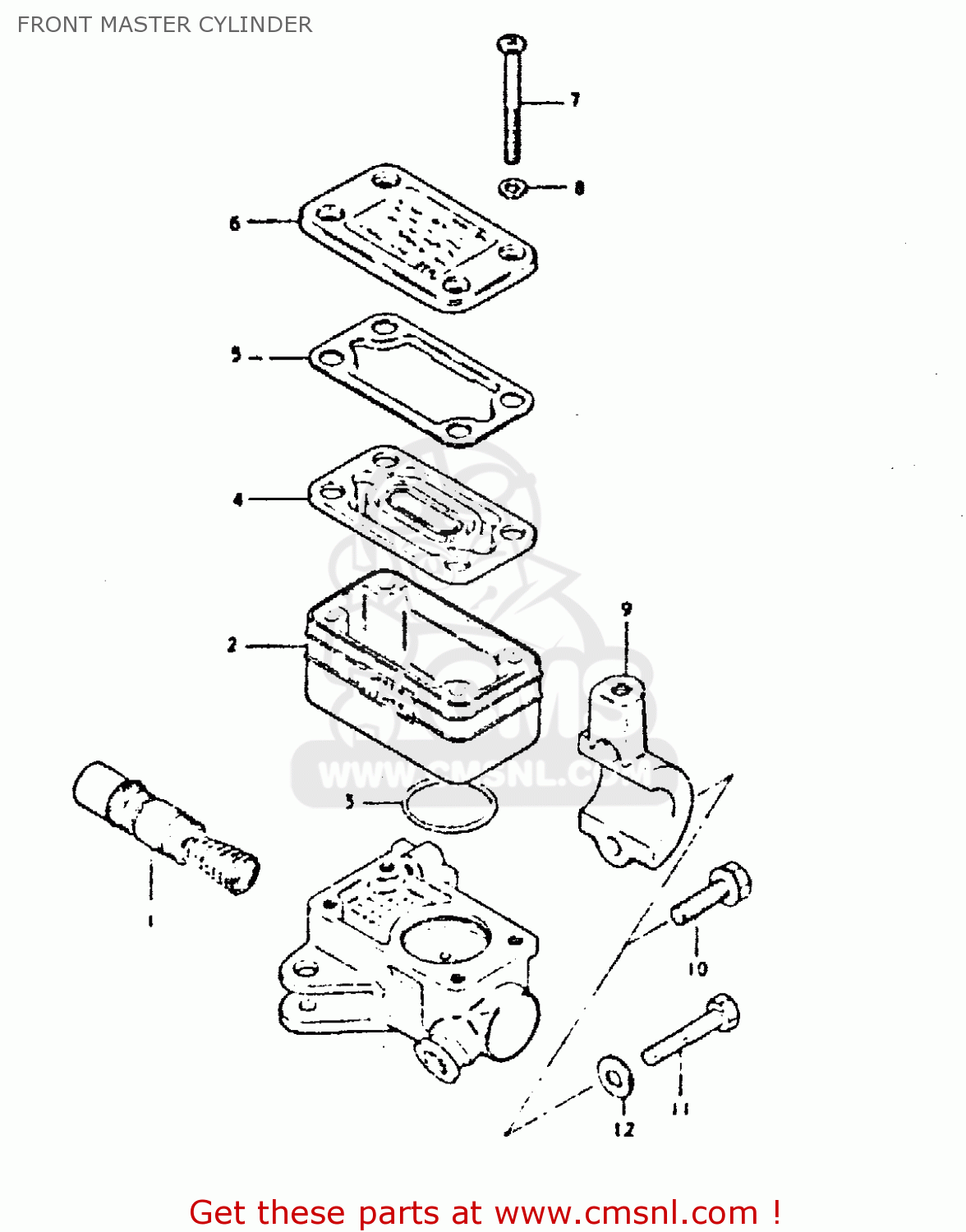

Front master cylinder diagram GSX400E 1980 (T) (E02 E04 E22 E24)

FRONT MASTER CYLINDER GSX400E 1980 (T) (E02 E04 E22 E24)
FRONT MASTER CYLINDER GSX400E 1980 (T) (E02 E04 E22 E24)
FRONT MASTER CYLINDER GSX400E 1980 (T) (E02 E04 E22 E24)
prices are in EUR
ref
part #
description
quantity
0
5960045210
ref: 0
CYLINDER ASSY, MASTER
€ 188.00
1-1
5960045840
ref: 1-1
GSX400ET/ST
CUP SET,MASTER CYLINDER
€ 41.50
1-2
5960045841
ref: 1-2
GSX400EX/SX
PISTON & CUP SET
5960045841
€ 41.50
2
5968745100
ref: 2
RESERVOIR
5968745100
€ 20.50
3
5968645100
ref: 3
O RING
5968645100
€ 9.50
4
5986745100
ref: 4
DIAPHRAGM
€ 0.00
5-1
5966845100
ref: 5-1
GSX400ET/ST
PLATE,DIAPHRAGM
5966845100
€ 14.50
5-2
5966845101
ref: 5-2
GSX400EX/SX
PLATE,DIAPHRAGM
5966845101
€ 14.50
6
5966945100
ref: 6
CAP
5966945100
€ 27.50
7
5969145100
ref: 7
SCREW
5969145100
€ 3.00
8
5969245100
ref: 8
WASHER
5969245100
€ 3.00
9
5967145100
ref: 9
HOLDER
5967145100
€ 17.50
10
5969345100
ref: 10
GSX400ET/ST
BOLT,MASTER CYLINDER H
5969345100
€ 2.00
11
0110706258
ref: 11
GSX400EX/SX
BOLT
€ 2.00
12
0832221068
ref: 12
GSX400EX/SX
WASHER
0832221068
€ 2.00
up
