Buy Suzuki GSX Parts Online


CHAIN CASE - SHOCK ABSORBER

GSX400E 1980 (T) (E02 E04 E22 E24)

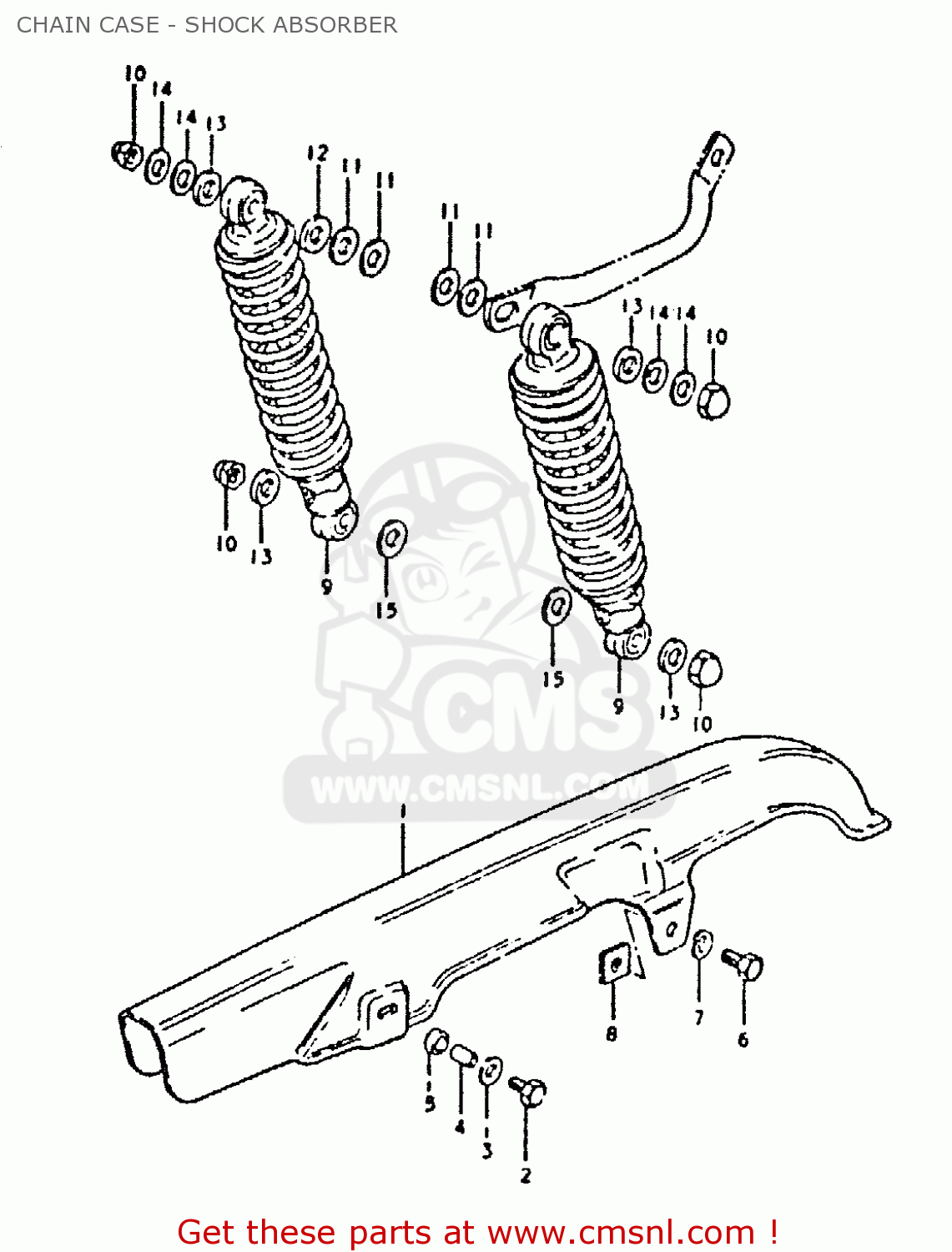

Chain case - shock absorber diagram GSX400E 1980 (T) (E02 E04 E22 E24)

CHAIN CASE - SHOCK ABSORBER GSX400E 1980 (T) (E02 E04 E22 E24)
CHAIN CASE - SHOCK ABSORBER GSX400E 1980 (T) (E02 E04 E22 E24)
CHAIN CASE - SHOCK ABSORBER GSX400E 1980 (T) (E02 E04 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
6131144100291
ref: 1-1
MODEL T TO 61311-441
CASE,CHAIN
€ 65.50
1-2
6131144102291
ref: 1-2
MODEL X
CASE,CHAIN
6131144102291
€ 65.50
2
0110706108
ref: 2
BOLT
€ 2.00
3
0916006056
ref: 3
WASHER(6.5X18X1)
0916006056
€ 2.00
4
0918006032
ref: 4
SPACER (6.1X8X5.2)
0918006032
€ 2.50
5
0932008005
ref: 5
CUSHION
€ 2.00
6
0110706168
ref: 6
BOLT, UPPER
€ 3.00
7
0832121068
ref: 7
LOCK WASHER
0832121068
€ 2.50
8
6131643000
ref: 8
NUT,CHAIN CASE RR
6131643000
€ 3.00
9-1
6210044110
ref: 9-1
SHOCK ABSORBER, REAR
€ 197.50
9-2
6210044140
ref: 9-2
GSX400ST, SX:E2, E4,
SHOCK ABSORBRR, REAR
6210044140
€ 576.00
10
0831311108
ref: 10
NUT, LOWER LH
0831311108
€ 2.50
11
0832211128
ref: 11
WASHER
0832211128
€ 2.00
12
0916012012
ref: 12
WASHER (12.5X24X3.2)
0916012012
€ 2.50
13
0916010001
ref: 13
WASHER
0916010001
€ 2.00
14
0916010038
ref: 14
WASHER, OUTER (10.5*24*3.2)
€ 0.00
15
0916012004
ref: 15
WASHER (12.5X24X1.6)
0916012004
€ 2.00
