SEAT (GSX400SX)
GSX400E 1980 (T) (E02 E04 E22 E24)

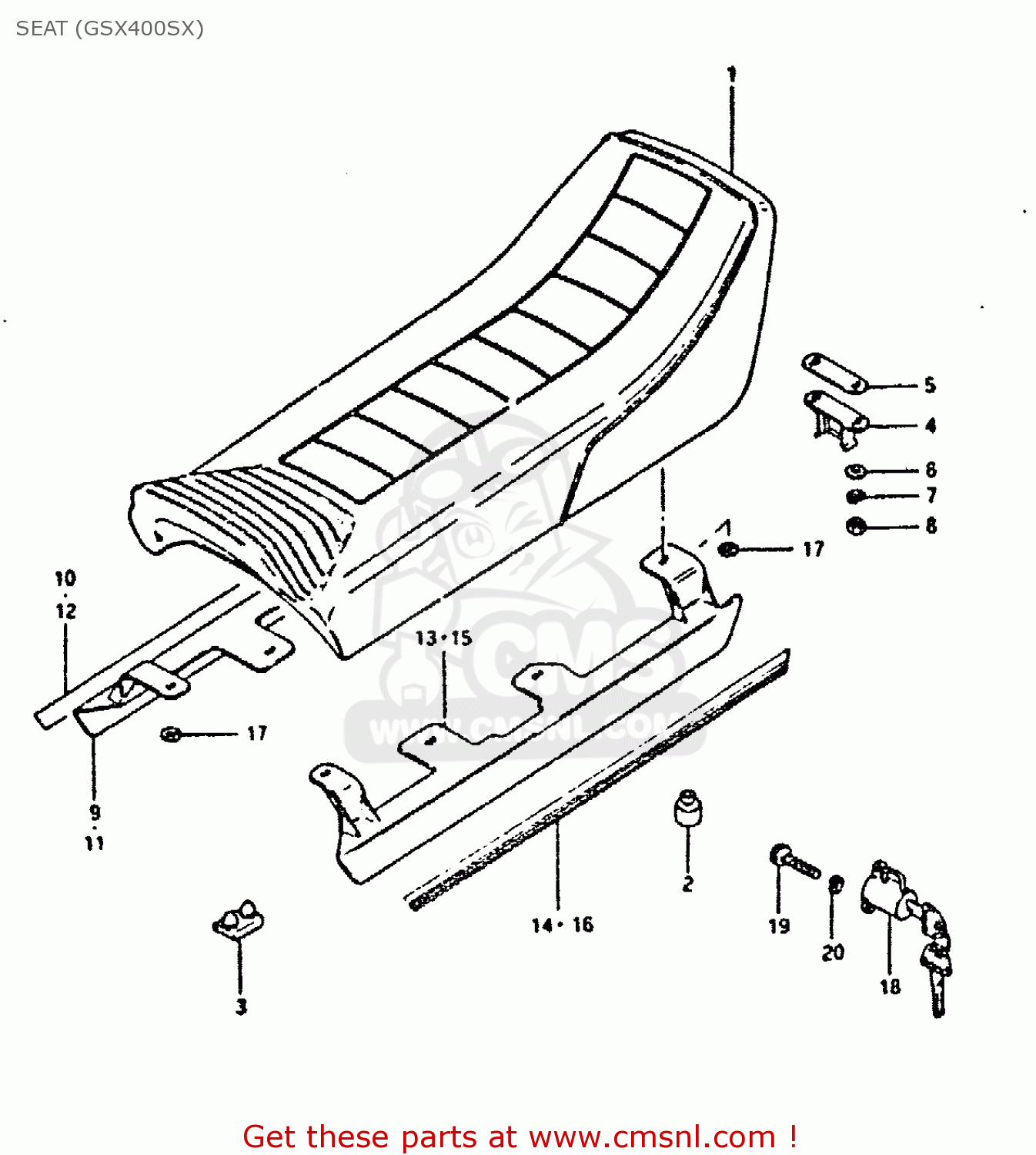

Seat (gsx400sx) diagram GSX400E 1980 (T) (E02 E04 E22 E24)
SEAT (GSX400SX) GSX400E 1980 (T) (E02 E04 E22 E24)
×
prices are in EUR
ref
part #
description
quantity
1
451004411341G
ref: 1
SEAT ASSEMBLY
€ 281.50
2
0932910001
ref: 2
CUSHION
€ 2.50
3
0932108010
ref: 3
CUSHION
€ 4.00
4
4521044101
ref: 4
STRIKER,SEAT LOCK
€ 32.50
5
4521744100
ref: 5
SHIM,SEAT LOCK STRIKER
€ 4.50
6
0832221068
ref: 6
WASHER
€ 2.00
7
0832121068
ref: 7
LOCK WASHER
€ 2.50
8
0831022068
ref: 8
NUT 6MM
€ 2.50
9
4519144102019
ref: 9
MOLDING,SEAT
€ 42.00
10
681974418075S
ref: 10
TAPE, RH
€ 12.00
11
451914410210V
ref: 11
MOULDING, SEAT RH (WHITE)
€ 42.00
12
681974418076P
ref: 12
TAPE, RH
€ 12.00
13
4519244101019
ref: 13
MOLDING,SEAT
€ 29.50
14
681984418075S
ref: 14
TAPE, LH
€ 12.00
15
451924410210V
ref: 15
MOULDING, SEAT LH (WHITE)
€ 29.50
16
681984418076P
ref: 16
TAPE, LH
€ 12.00
17
0914806005
ref: 17
NUT
€ 1.50
18
9570035821
ref: 18
LOCK ASSEMBLY,HELMET
€ 57.50
19
0910606024
ref: 19
BOLT 6X11
€ 2.50
20
0832121068
ref: 20
LOCK WASHER
€ 2.50
