SIGNAL GENERATOR

GSX400E 1980 (T) (E02 E04 E22 E24)

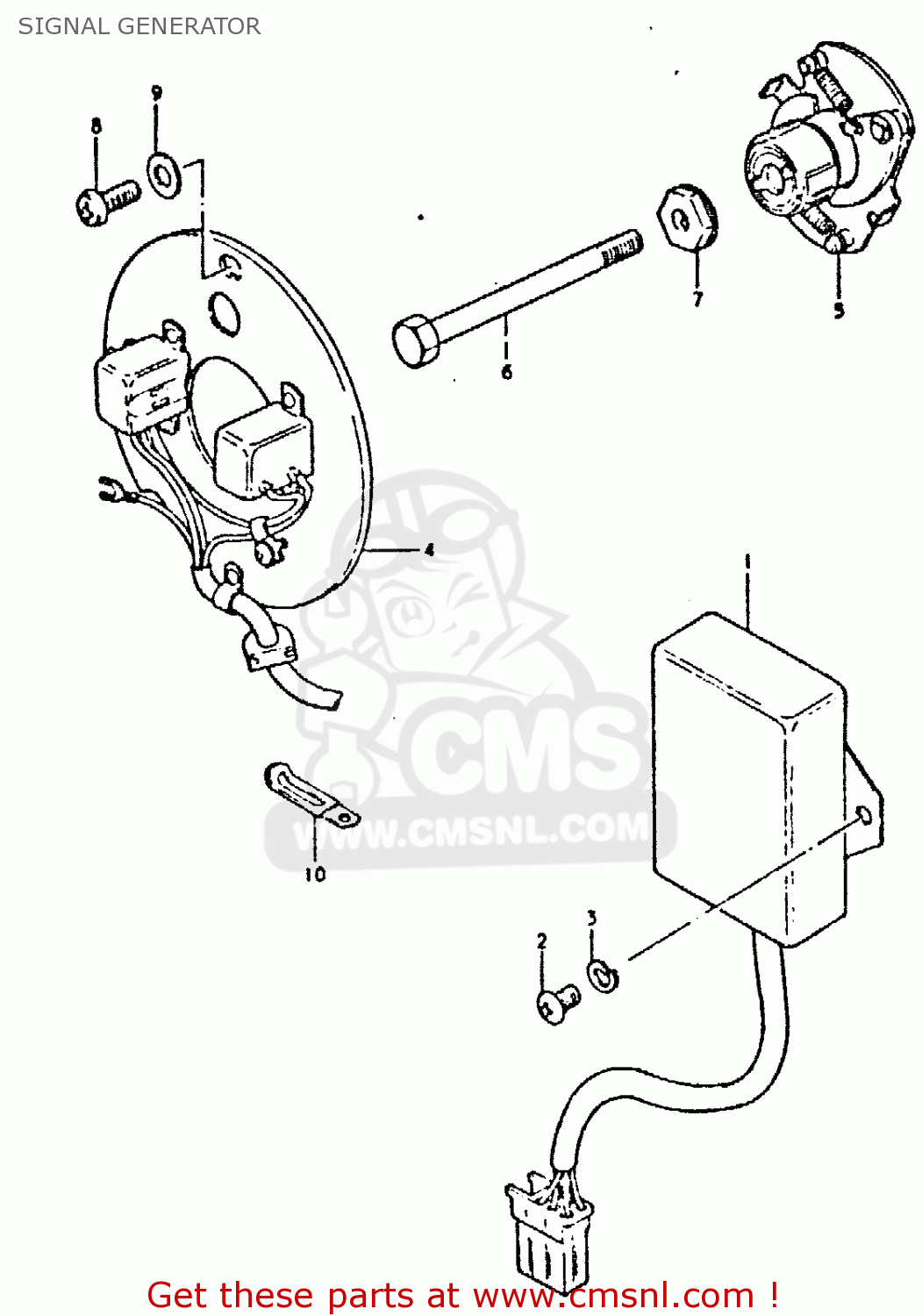

Signal generator diagram GSX400E 1980 (T) (E02 E04 E22 E24)

SIGNAL GENERATOR GSX400E 1980 (T) (E02 E04 E22 E24)

SIGNAL GENERATOR GSX400E 1980 (T) (E02 E04 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

3290047020
ref: 1

CDI UNIT KOKUSAN

€ 708.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0832121068
ref: 3

LOCK WASHER

€ 2.50

4

3311044120
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 303.00

5

3312011410
ref: 5

GOVERNOR ASSEMBLY

€ 218.50

6

0110706608
ref: 6

BOLT 6X60

€ 2.50

7

3346544100
ref: 7

WASHER,CONTACT BREAKER

€ 37.50

8

0912505024
ref: 8

SCREW(5X12)

€ 2.00

9

0916005027
ref: 9

WASHER

€ 2.50

10

0940406401
ref: 10

CLAMP L:35

€ 2.50
