CAM SHAFT/VALVE

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

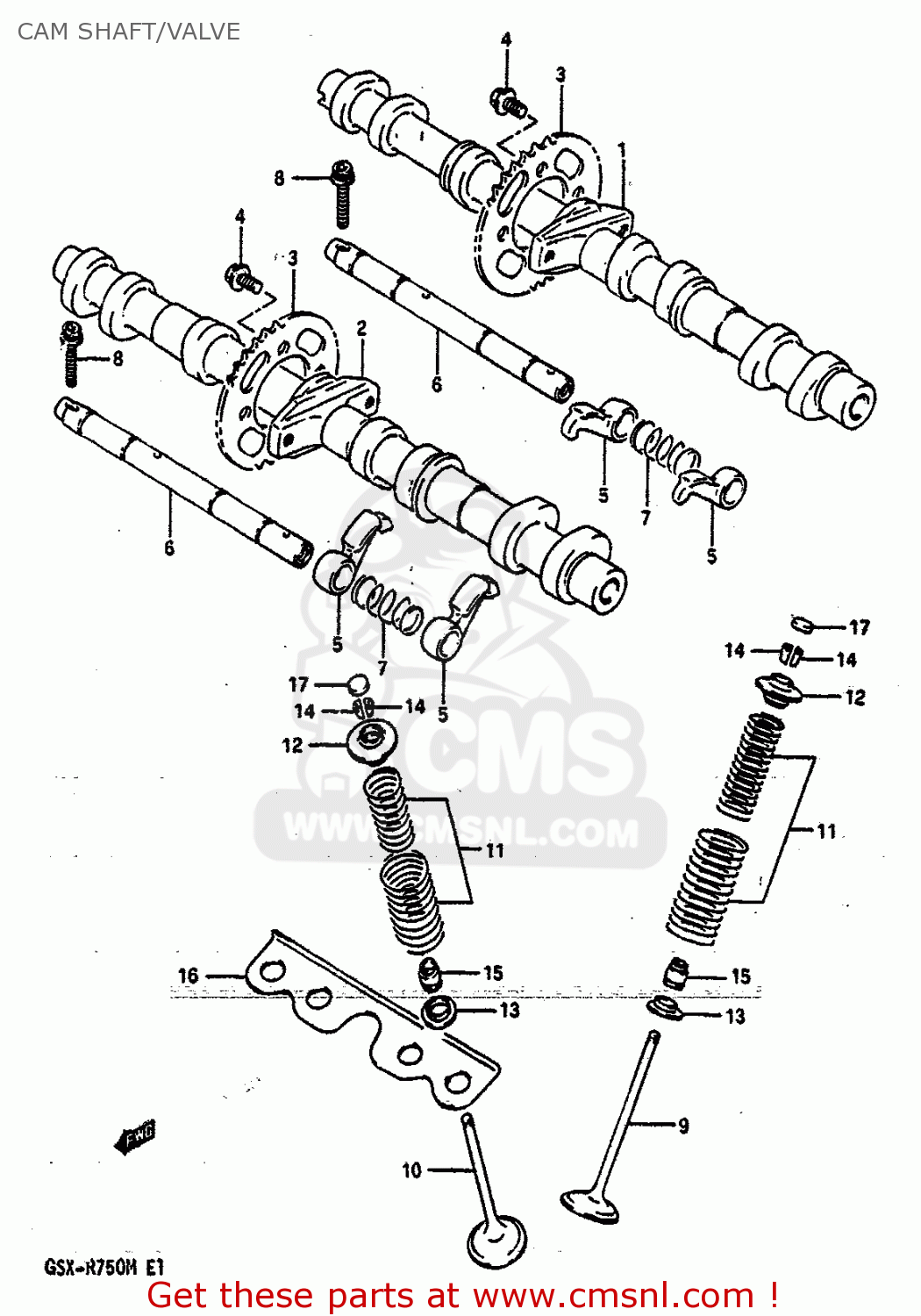

Cam shaft/valve diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CAM SHAFT/VALVE GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CAM SHAFT/VALVE GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CAM SHAFT/VALVE GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1271118D00
ref: 1
CAMSHAFT,INTAKE
€ 340.00
2
1272118D00
ref: 2
CAMSHAFT,EXHAUST
1272118D00
€ 311.00
3
1274127A00
ref: 3
SPROCKET,CAMSHAFT
1274127A00
€ 41.00
4
0910307001
ref: 4
BOLT(7X11)
0910307001
€ 2.00
5
1284133C01
ref: 5
ARM,VALVE ROCKER
€ 48.50
6
1286141C00
ref: 6
SHAFT,VALVE ROCKER
1286141C00
€ 36.50
7
0944014019
ref: 7
SPRING
€ 3.00
8
0712006255
ref: 8
BOLT
€ 2.50
9
1291118D00
ref: 9
VALVE,INTAKE
1291118D00
€ 33.00
10
1291218D00
ref: 10
VALVE,EXHAUST
1291218D00
€ 44.00
11
1292041C00
ref: 11
SPRING SET,VALVE
1292041C00
€ 12.50
12
1293141C00
ref: 12
RETAINER,VALVE SPRING
1293141C00
€ 8.50
13
1293381400
ref: 13
SEAT,VALVE SPRING
1293381400
€ 4.00
14
1293227A00
ref: 14
COTTER VALVE
1293227A00
€ 2.50
15
0928905011
ref: 15
SEAL,OIL(5X10X9.7)
0928905011
€ 6.00
16
1113727A01
ref: 16
PLATE
€ 7.50
17-1
1289241C00250
ref: 17-1
SHIM,TAPPET(T:2.5)
1289241C00250
€ 7.00
17-2
1289241C00255
ref: 17-2
SHIM,TAPPET(T:2.55)
1289241C00255
€ 7.50
17-3
1289241C00260
ref: 17-3
SHIM,TAPPET(T:2.6)
1289241C00260
€ 8.00
17-4
1289241C00265
ref: 17-4
SHIM,TAPPET(T:2.65)
1289241C00265
€ 7.00
17-5
1289241C00270
ref: 17-5
SHIM,TAPPET(T:2.7)
1289241C00270
€ 8.00
17-6
1289241C00275
ref: 17-6
SHIM,TAPPET(T:2.75)
1289241C00275
€ 7.50
17-7
1289241C00280
ref: 17-7
SHIM,TAPPET(T:2.8)
1289241C00280
€ 7.50
17-8
1289241C00285
ref: 17-8
SHIM,TAPPET(T:2.85)
1289241C00285
€ 7.50
17-9
1289241C00290
ref: 17-9
SHIM,TAPPET(T:2.9)
1289241C00290
€ 7.50
17-10
1289241C00295
ref: 17-10
SHIM,TAPPET(T:2.95)
1289241C00295
€ 7.00
17-11
1289241C00300
ref: 17-11
SHIM,TAPPET(T:3.0)
1289241C00300
€ 7.00
17-12
1289241C00305
ref: 17-12
SHIM,TAPPET(T:3.05)
1289241C00305
€ 7.50
17-13
1289241C00310
ref: 17-13
SHIM,TAPPET(T:3.1)
1289241C00310
€ 7.50
17-14
1289241C00315
ref: 17-14
SHIM,TAPPET(T:3.15)
1289241C00315
€ 7.50
17-15
1289241C00320
ref: 17-15
SHIM,TAPPET(T:3.2)
1289241C00320
€ 7.50
17-16
1289241C00325
ref: 17-16
SHIM,TAPPET(T:3.25)
1289241C00325
€ 7.00
17-17
1289241C00330
ref: 17-17
SHIM,TAPPET(T:3.3)
1289241C00330
€ 7.00
17-18
1289241C00335
ref: 17-18
SHIM,TAPPET(T:3.35)
1289241C00335
€ 7.00
17-19
1289241C00340
ref: 17-19
SHIM,TAPPET(T:3.4)
1289241C00340
€ 7.00
17-20
1289241C00345
ref: 17-20
SHIM,TAPPET(T:3.45)
€ 7.00
17-21
1289241C00350
ref: 17-21
SHIM,TAPPET(T:3.5)
1289241C00350
€ 7.00
18
1280041810
ref: 18
OPT,NOT SHOWN
SHIM SET,TAPPET
€ 793.00
19
9900069471
ref: 19
OPT
CASE,TAPPET SHIM
9900069471
€ 103.50
