ELECTRICAL

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

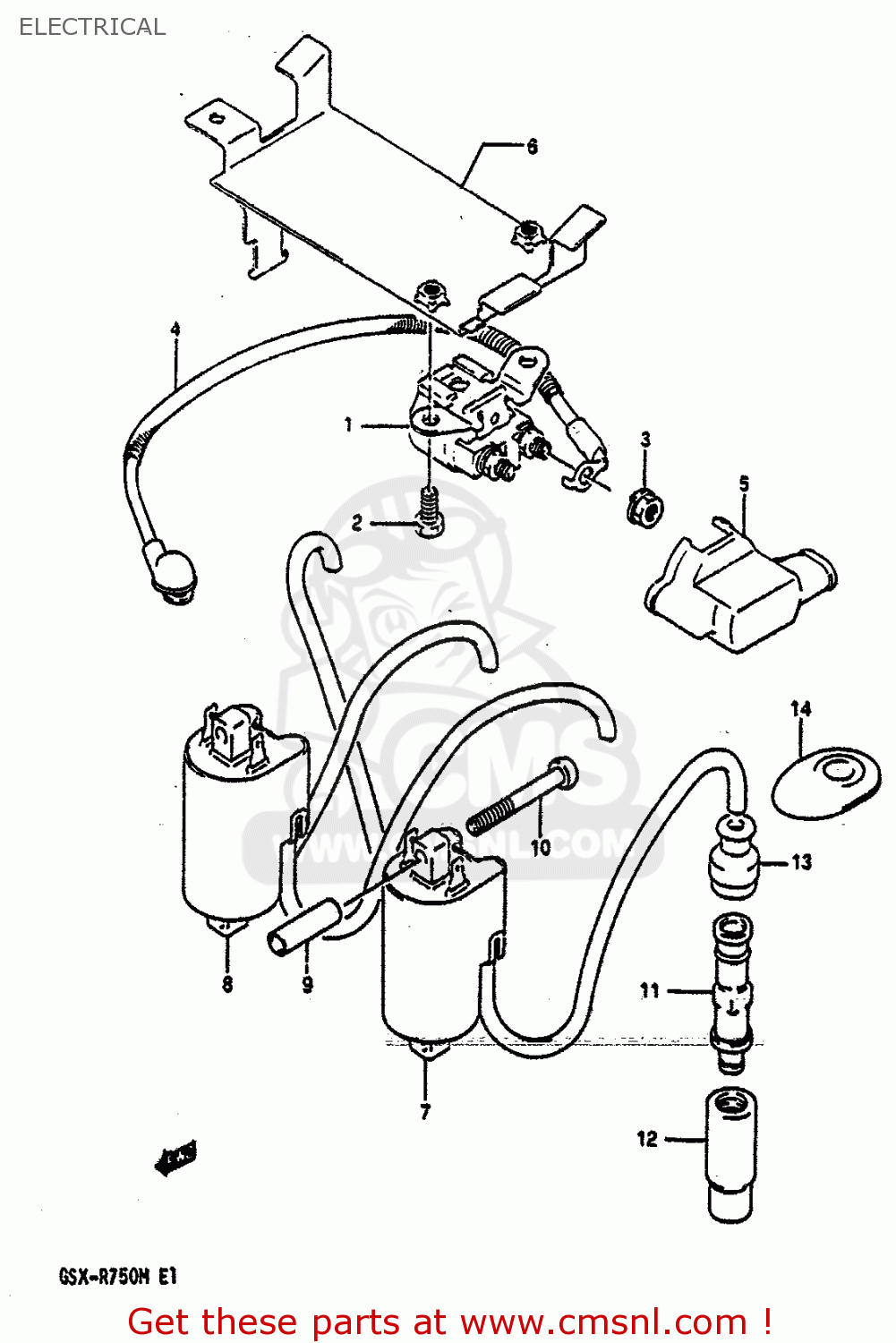

Electrical diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

0836135066
ref: 3

NUT

€ 2.00

3381018D00
ref: 4

WIRE,STARTER MOTOR

€ 29.00

3186110D10
ref: 5

CAP,STARTER RELAY

€ 6.50

4741018D00
ref: 6

HOLDER COMP,ELECTRONIC PARTS

€ 13.00

3341017C00
ref: 7

COIL ASSEMBLY,IGNITION (1-4)

€ 199.00

8-1

3342017C00
ref: 8-1

COIL ASSEMBLY,IGNITION (2-3)

€ 199.00

8-2

3342017C10
ref: 8-2
E18,E39

COIL ASSEMBLY,IGNITION

€ 199.00

0918006146
ref: 9

SPACER (6.5X10.5X31.7)

€ 3.50

0211206556
ref: 10

SCREW

€ 2.00

3351007D00
ref: 11

CAP,SPARK PLUG

€ 42.00

3354120C00
ref: 12

SEAL,SPARK PLUG

€ 19.50

3354238B00
ref: 13

SEAL,HIGH TENSION CORD

€ 4.50

3354348B00
ref: 14

COVER,SPARK PLUG CAP

€ 12.50
