CYLINDER HEAD

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

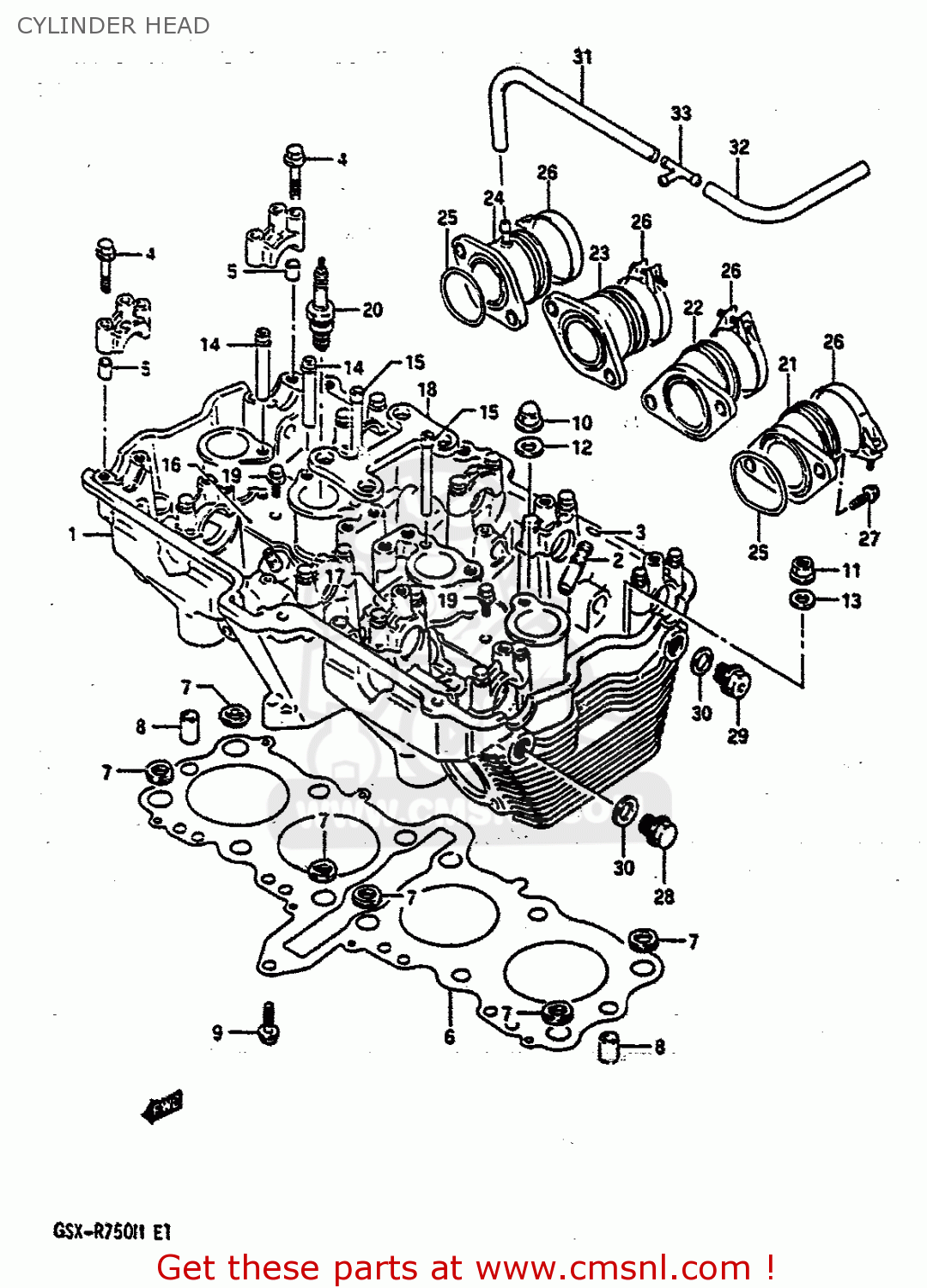

Cylinder head diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CYLINDER HEAD GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CYLINDER HEAD GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1110018D00
ref: 1-1
HEAD ASSY,CYLINDER
€ 1,173.00
1-2
1110018D10
ref: 1-2
E18,E39
HEAD ASSEMBLY,CYLINDER
€ 779.00
2
1111618D70
ref: 2
GUIDE,VALVE
1111618D70
€ 19.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6-1
1114107D01
ref: 6-1
GASKET,CYLINDER HEAD
€ 99.50
6-2
1114117D10
ref: 6-2
E18,E39
GASKET,CYLINDER HEAD (NAS)
1114117D10
€ 99.50
7
1114306B00
ref: 7
O RING,HEAD GASKET
1114306B00
€ 8.00
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706305
ref: 9
BOLT 6X30
€ 2.50
10
0915910069
ref: 10
NUT
0915910069
€ 5.00
11
0831616106
ref: 11
NUT
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
0916010060
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
1113527A02
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
1113627A02
€ 4.00
18
1113840C00
ref: 18
PLATE,HEAD REINF
1113840C00
€ 34.50
19
0151706128
ref: 19
BOLT
€ 2.50
20-1
0948200462
ref: 20-1
PLUG,SPARK(CR10EK)
0948200462
€ 10.50
20-2
0948200463
ref: 20-2
PLUG,SPARK(U31ETR)
0948200463
€ 10.50
20-3
0948200410
ref: 20-3
OPT
PLUG,SPARK(CR9EK)
0948200410
€ 10.50
20-4
0948200411
ref: 20-4
OPT
PLUG,SPARK(U27ETR)
€ 8.50
21
1310117D00
ref: 21
PIPE,INTAKE NO.1
1310117D00
€ 41.00
22
1310217D00
ref: 22
PIPE,INTAKE NO.2
1310217D00
€ 41.00
23
1310317D00
ref: 23
PIPE,INTAKE NO.3
1310317D00
€ 41.00
24
1310417D00
ref: 24
PIPE,INTAKE NO.4
1310417D00
€ 50.00
25
0928042003
ref: 25
O RING(D:2.4,ID:41.7)
0928042003
€ 8.50
26
0940256208
ref: 26
CLAMP
0940256208
€ 3.50
27
0215206165
ref: 27
SCREW
€ 2.00
28-1
0924714034
ref: 28-1
PLUG
0924714034
€ 3.50
28-2
0924714032
ref: 28-2
E18,E39
PLUG
0924714032
€ 5.00
29
0924714032
ref: 29
PLUG
0924714032
€ 5.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
31-1
0935250823300
ref: 31-1
HOSE
0935250823300
€ 13.00
31-2
0935250823300
ref: 31-2
E18,E39
HOSE
0935250823300
€ 13.00
32
0935250823300
ref: 32
E18,E39
HOSE
0935250823300
€ 13.00
33
0936706002
ref: 33
E18,E39
JOINT,3 WAY
0936706002
€ 3.00
