OIL PAN

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

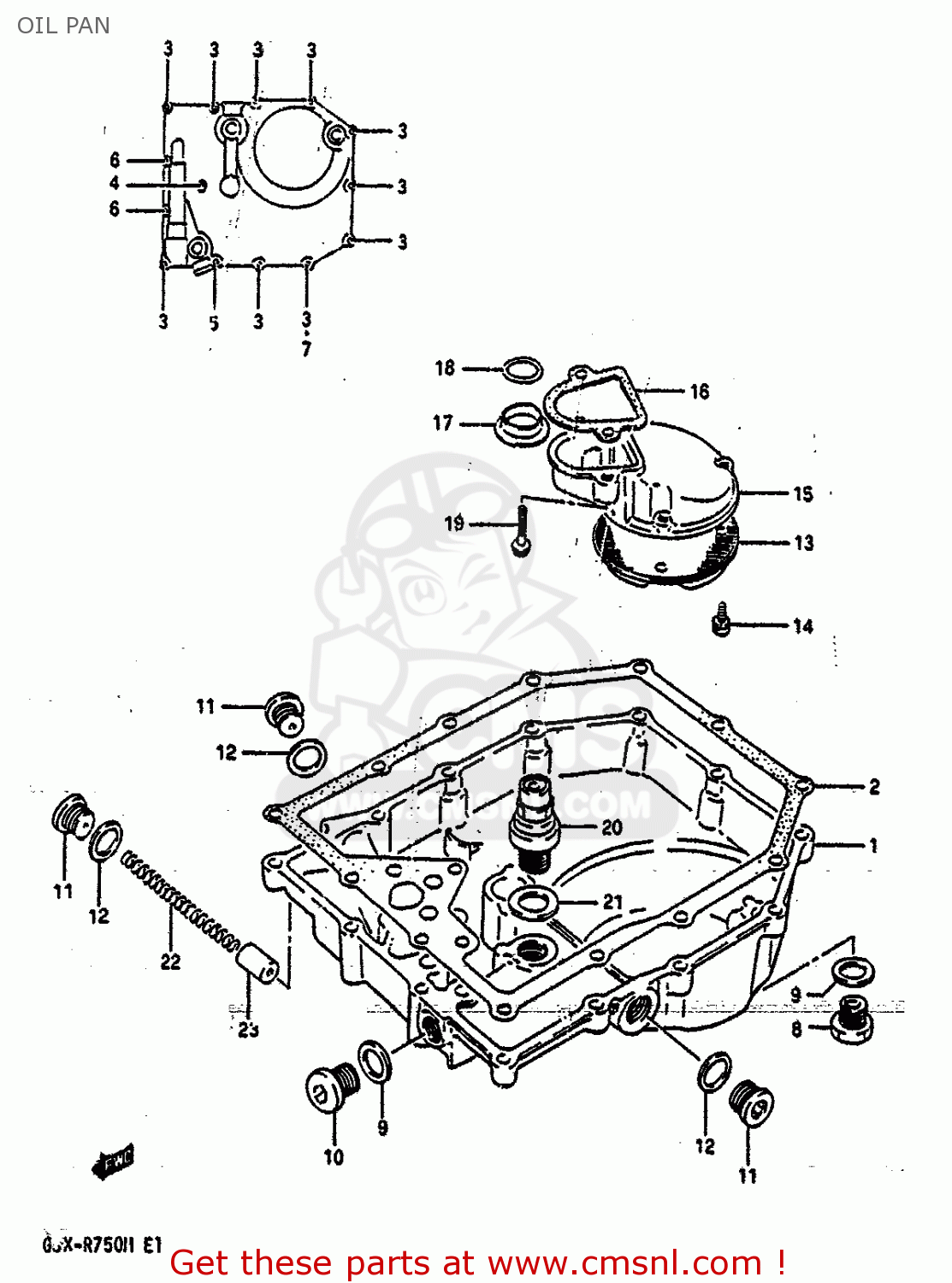

Oil pan diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

OIL PAN GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
OIL PAN GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1151117D01
ref: 1
PAN,OIL
1151117D01
€ 156.00
2
1148927A10
ref: 2
GASKET,OIL PAN (NAS)
1148927A10
€ 23.00
3
0711006257
ref: 3
BOLT
€ 2.50
4
0711006357
ref: 4
BOLT
€ 3.50
5
0711006408
ref: 5
BOLT
€ 2.50
6
0711006458
ref: 6
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
8
0924714001
ref: 8
PLUG
0924714001
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
10
0924814005
ref: 10
PLUG,14X12
0924814005
€ 5.00
11
0924816010
ref: 11
PLUG
0924816010
€ 4.50
12
0916816002
ref: 12
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
13
1652009301
ref: 13
STRAINER,ENGINE OIL
1652009301
€ 14.00
14
0113706128
ref: 14
BOLT
€ 2.50
15
1652506B00
ref: 15
PROTECTOR,OIL STRAINER
1652506B00
€ 33.50
16
1652827A10
ref: 16
O-RING
€ 9.00
17
1652927A01
ref: 17
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
18
0928018009
ref: 18
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
19
0151706257
ref: 19
BOLT 6X25
€ 2.50
20
1644017C00
ref: 20
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
22
0944009027
ref: 22
SPRING
0944009027
€ 4.50
23
1644234301
ref: 23
PLUNGER,OIL CONTROLL
1644234301
€ 16.00
