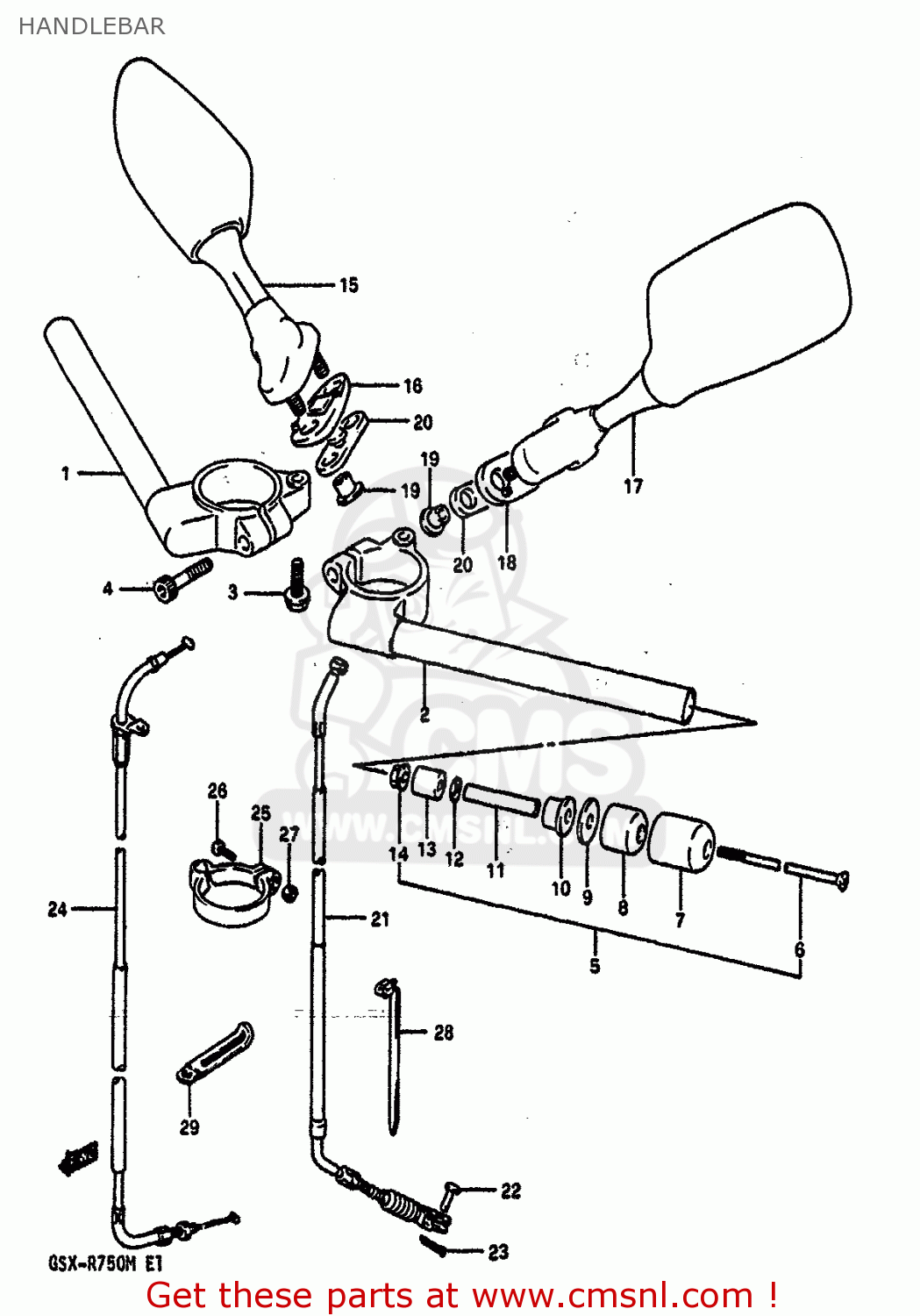

HANDLEBAR

ref

part #

description

quantity

1

5611117D00
ref: 1

HANDLEBAR,R

€ 184.50

2

5615117D00
ref: 2

HANDLEBAR,L

€ 159.00

3

0151706204
ref: 3

BOLT 6X20

€ 2.50

4

0711008355
ref: 4

BOLT 8X35

€ 4.00

5

5620017810
ref: 5

BALANCER SET,HANDLEBAR

€ 148.50

6

0912706017
ref: 6

SCREW(6X127)

€ 2.50

7

5627412C00
ref: 7

CAP,BALANCER

€ 83.00

8

5627117D00
ref: 8

BALANCER,HANDLEBAR

€ 12.00

9

5627534400
ref: 9

SPACER,BALANCER

€ 2.50

10

5627217D00
ref: 10

EXPANDER,HANDLE BALANCER

€ 5.50

11

5627617D00
ref: 11

SPACER,EXPANDER

€ 2.50

12

0832221067
ref: 12

WASHER

€ 2.00

13

5627244500
ref: 13

EXPANDER,HANDLE BALANCER

€ 3.00

14

0915906024
ref: 14

NUT

€ 2.00

15-1

5650018D000NE
ref: 15-1
FOR 3SL

MIRROR ASSEMBLY,REAR VIEW

€ 115.50

15-2

5650018D0084N
ref: 15-2
FOR 3RZ,3CG

MIRROR ASSEMBLY,REAR VIEW

€ 114.50

16

5652818D00
ref: 16

GASKET,RR VIEW MIRROR,R (NAS)

€ 11.00

17-1

5660018D000NE
ref: 17-1
FOR 3SL

MIRROR ASSEMBLY,REAR VIEW

€ 121.00

17-2

5660018D0084N
ref: 17-2
FOR 3RZ,3CG

MIRROR ASSEMBLY,REAR VIEW

€ 105.50

18

5662818D00
ref: 18

GASKET,RR VIEW MIRROR,L (NAS)

€ 10.00

19

5661912C00
ref: 19

NUT,RR VIEW MIRROR

€ 8.00

20

9457641C00
ref: 20

CUSHION,RR VIEW MIRRORR

€ 12.00

21

5820018D00
ref: 21

CABLE ASSY,CLUTCH

€ 45.50

22

0920006011
ref: 22

PIN(L:15)

€ 2.50

23

0411120158
ref: 23

PIN

€ 1.50

24-1

5830018D00
ref: 24-1

CABLE ASSEMBLY,THROTTLE

€ 51.50

24-2

5830018D10
ref: 24-2
E18

CABLE ASSY,THROTTLE

€ 34.00

25

5828517D02
ref: 25

CLAMP,CLUTCH CABLE

€ 7.00

26

0214205204
ref: 26

SCREW

€ 2.00

27

0831012055
ref: 27

NUT ,5MM

€ 2.50

28

0940725401
ref: 28

CLAMP(L:235)

€ 4.00

29

0940406402
ref: 29

CLAMP

€ 2.50
