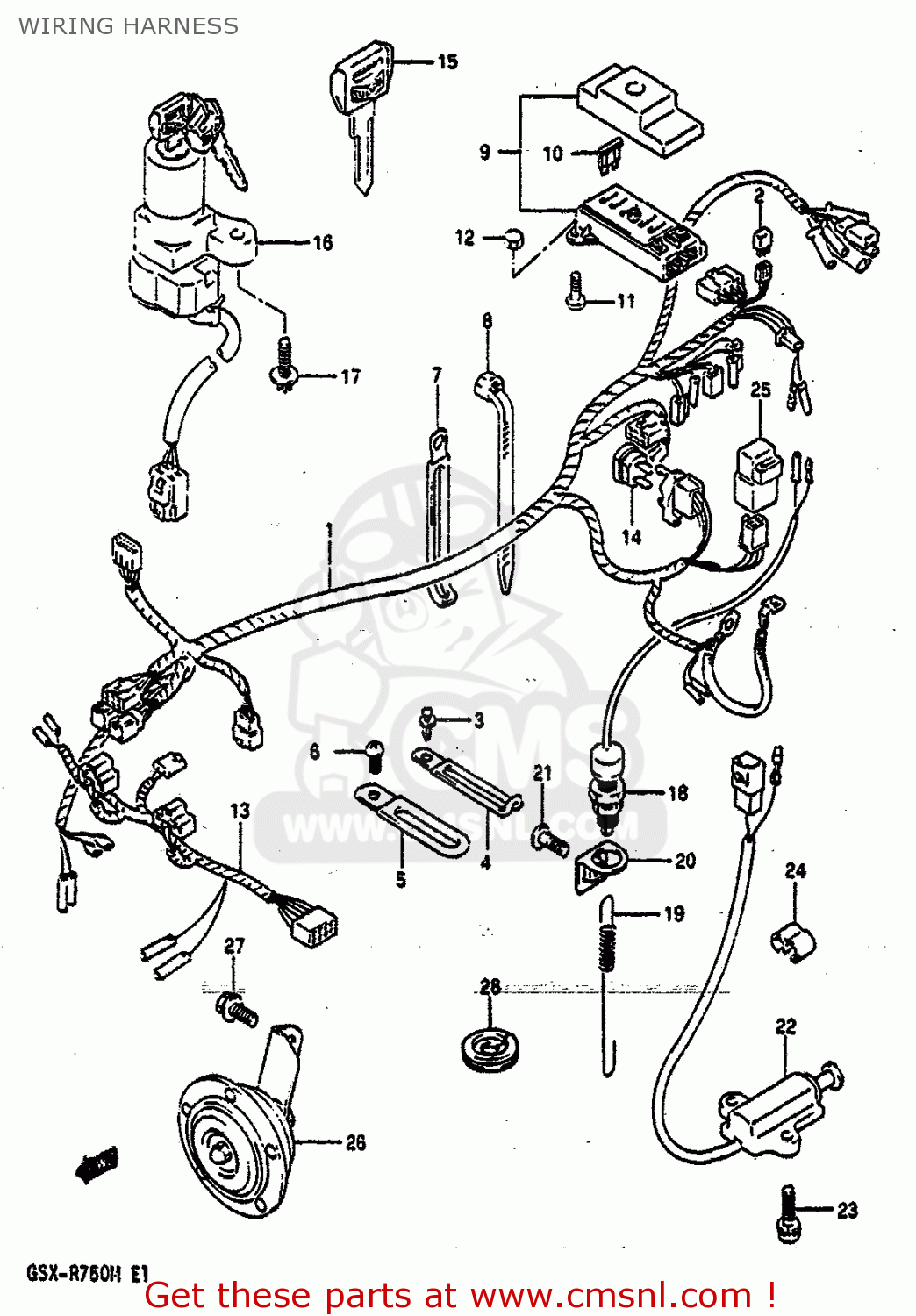

WIRING HARNESS

ref

part #

description

quantity

1-1

3661018D10
ref: 1-1

HARNESS,WIRING

€ 344.50

1-2

3661018D50
ref: 1-2
E22

HARNESS,WIRING

€ 344.50

1-3

3661018D40
ref: 1-3
E34

HARNESS,WIRING

€ 344.50

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0940907305
ref: 3

CLIP

€ 1.50

4-1

0940406403
ref: 4-1

CLAMP

€ 2.50

4-2

0940406404
ref: 4-2

CLAMP

€ 3.00

5

0940405403
ref: 5

CLAMP

€ 2.00

6

0214205128
ref: 6

SCREW

€ 1.50

7

0940406415
ref: 7

CLAMP

€ 3.00

8-1

0940710404
ref: 8-1

CLAMP(L:100)

€ 4.00

8-2

0940714403
ref: 8-2

CLAMP(L:125)

€ 2.50

8-3

0940718402
ref: 8-3

CLAMP(L:165)

€ 2.50

8-4

0940725401
ref: 8-4

CLAMP(L:235)

€ 4.00

9-1

3674017D00
ref: 9-1

BOX ASSY,FUSE

€ 72.00

9-2

3674005A01
ref: 9-2
E34

BOX ASSEMBLY,FUSE

€ 77.50

10-1

0948110101
ref: 10-1

FUSE(10A)

€ 2.50

10-2

0948120101
ref: 10-2

FUSE(20A)

€ 2.00

11

0912506009
ref: 11

SCREW (6X15)

€ 3.00

12

0831321064
ref: 12

NUT 6MM

€ 2.00

13-1

3685641C00
ref: 13-1

WIRE,HEADLAMP LEAD

€ 97.00

13-2

3685618D20
ref: 13-2
E4,E15,E16,E17,E18,E

WIRE,HEADLAMP LEAD

€ 85.50

13-3

3685618D40
ref: 13-3
E34

WIRE,HEADLAMP LEAD

€ 57.00

14

3675005A00
ref: 14

BREAKER ASSY,CIRCUT

€ 36.50

15

3714603A80
ref: 15
OPT

KEY,BLANK

€ 41.50

16

3710017C02
ref: 16

LOCK ASSEMBLY,STEERING

€ 134.00

17

0913906026
ref: 17

SCREW(6X18)

€ 2.50

18

3774004A10
ref: 18

SWITCH ASSY,STOP LAMP

€ 22.00

19

0944306012
ref: 19

SPRING

€ 3.00

20

4325117C01
ref: 20

BRACKET,STOP LAMP SWITCH

€ 9.50

21

0913906027
ref: 21

SCREW(6X12)

€ 3.00

22

3784017C01
ref: 22

SWITCH ASSEMBLY,SIDE STAND

€ 67.50

23

0211236165
ref: 23

SCREW

€ 2.50

24

0940800002
ref: 24

CLIP

€ 2.00

25

3874024B10
ref: 25

RELAY ASSEMBLY

€ 37.50

26-1

3850018D00
ref: 26-1

HORN ASSEMBLY

€ 43.50

26-2

3850041C30
ref: 26-2
E34

HORN ASSEMBLY

€ 77.00

27

0151706105
ref: 27

BOLT

€ 2.50

28

0930807013
ref: 28

GROMMET

€ 3.50

all assemblies
