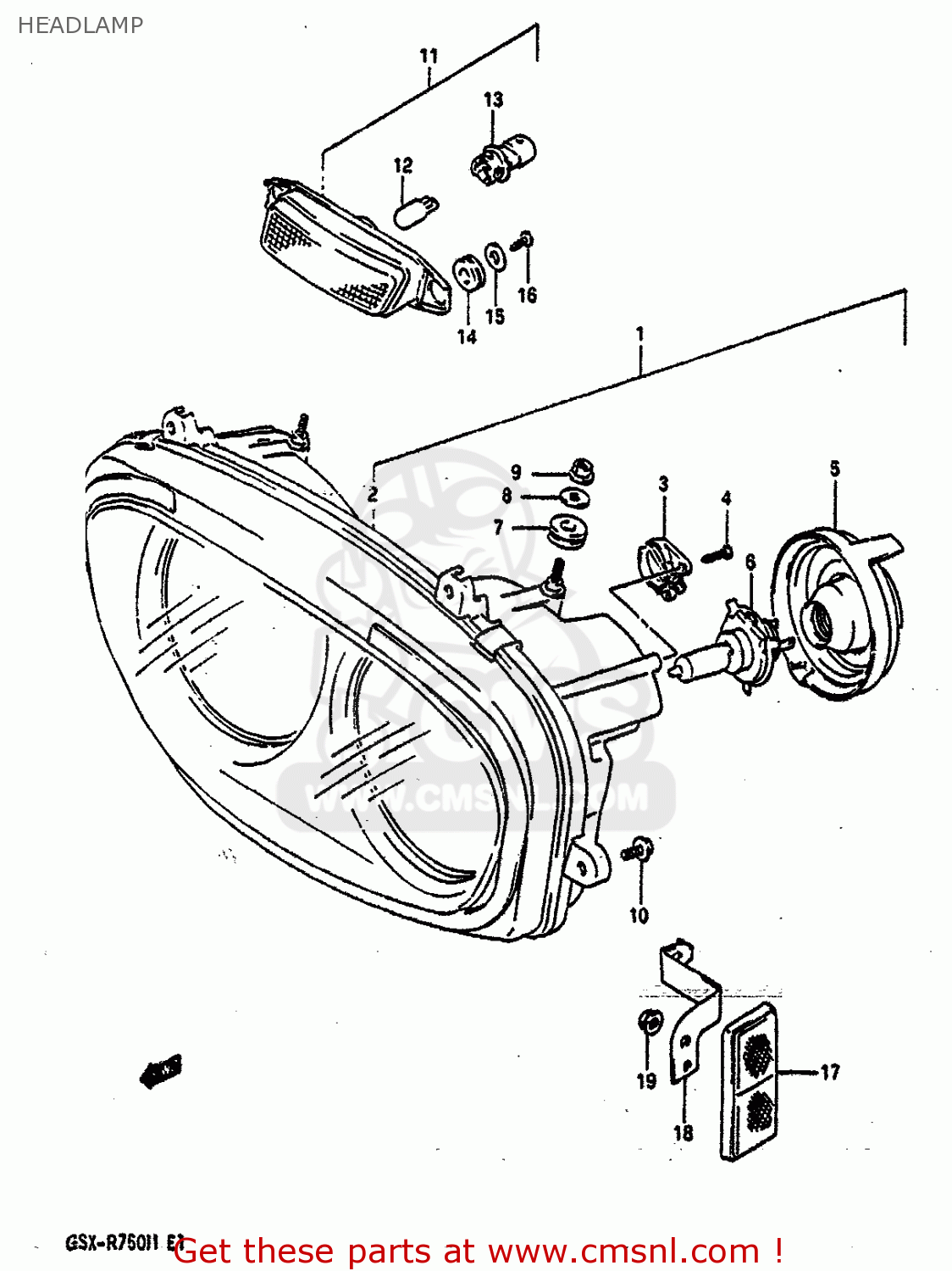

HEADLAMP

ref

part #

description

quantity

1-1

3510018D00
ref: 1-1

HEADLAMP ASSEMBLY

€ 491.00

1-2

3510018D40
ref: 1-2
E4

HEADLAMP ASSY

€ 653.00

1-3

3510018D10
ref: 1-3
E15

HEADLAMP ASSY

€ 0.00

1-4

3510018D50
ref: 1-4
E16,E17,E18,E21,E22,

HEADLAMP ASSY

€ 636.00

1-5

3510018D20
ref: 1-5
E25

HEADLAMP ASSY

€ 591.50

1-6

3510018D30
ref: 1-6
E34

HEADLAMP ASSY

€ 0.00

2-1

3512118D00
ref: 2-1

LAMP UNIT

€ 491.00

2-2

3512118D40
ref: 2-2
E4

UNIT,HEADLAMP

€ 0.00

2-3

3512118D10
ref: 2-3
E15

UNIT,HEADLAMP

€ 0.00

2-4

3512118D50
ref: 2-4
E16,E17,E18,E21,E22,

UNIT,HEADLAMP

€ 636.00

2-5

3512118D20
ref: 2-5
E25

UNIT,HEADLAMP

€ 0.00

2-6

3512118D30
ref: 2-6
E34

UNIT,HEADLAMP

€ 0.00

3

3525033C10
ref: 3

GEAR UNIT ASSY,LWR

€ 7.50

4

0351104165
ref: 4

SCREW

€ 1.50

5-1

3517341C00
ref: 5-1

COVER,SOCKET

€ 14.00

5-2

3517341C00
ref: 5-2
E25

COVER,SOCKET

€ 14.00

5-3

3517341C50
ref: 5-3
E25

COVER, SOCKET RH

€ 12.50

6-1

0947112060
ref: 6-1

BULB(12V60/55W,H4)

€ 8.00

6-2

0947112060
ref: 6-2
E16,E17,E18,E22,E25,

BULB(12V60/55W,H4)

€ 8.00

6-3

0947112122
ref: 6-3
E4,E16,E17,E18,E22,E

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

6-4

0947112020
ref: 6-4
E34

BULB(12V35/35W)

€ 108.50

6-5

0947112061
ref: 6-5
E4

BULB (12V, 60/55W, H4)

€ 0.00

7

0932009034
ref: 7

GROMMET

€ 4.50

8

0916006092
ref: 8

WASHER

€ 2.50

9

0831616064
ref: 9

NUT 6MM

€ 2.50

10

0211275165
ref: 10

SCREW

€ 2.50

11

3611018D00
ref: 11

LAMP ASSEMBLY,FRONT POSITION

€ 45.50

12

0947112081
ref: 12

BULB(12V5W)

€ 1.50

13

3611841C00
ref: 13

SOCKET ASSY

€ 10.50

14

0932008051
ref: 14

CUSHION

€ 7.50

15

0916006014
ref: 15

WASHER

€ 0.00

16

0354104105
ref: 16

SCREW

€ 1.50

17

3595014A00
ref: 17
E39

REFLECTOR,REFLEX FR

€ 15.00

18-1

3595617D00
ref: 18-1
E39

BRACKET,FR SIDE RR,R

€ 6.50

18-2

3595717D00
ref: 18-2
E39

BRACKET,FR SIDE RR,L

€ 6.50

19

0836115055
ref: 19
E39

NUT

€ 2.50
