STAND

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

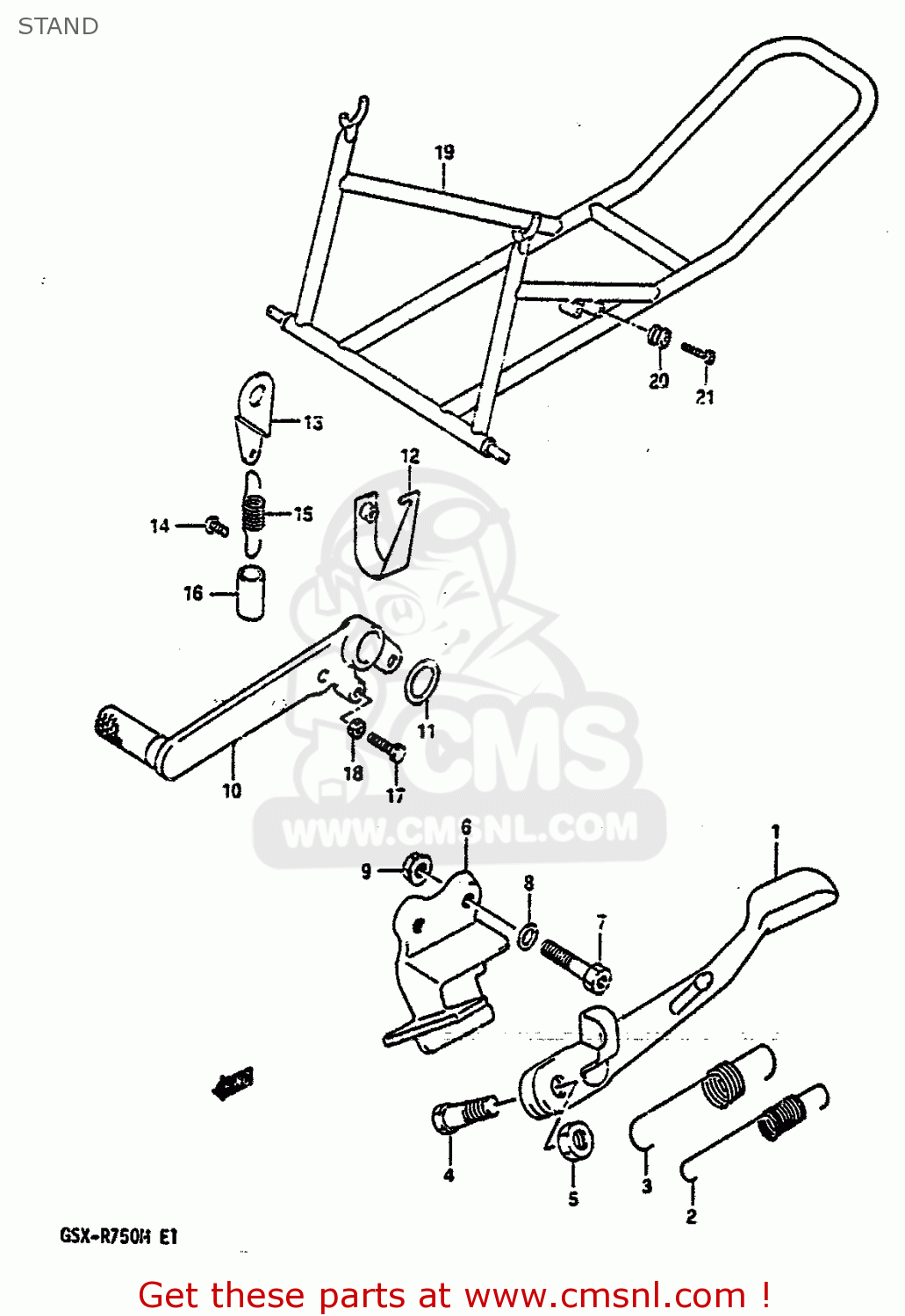

Stand diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

4231007D02
ref: 1

STAND,PROP

€ 98.50

0944314058
ref: 2

SPRING

€ 5.50

0944319011
ref: 3

SPRING

€ 5.50

0911110036
ref: 4

BOLT(10X38)

€ 5.50

0831022107
ref: 5

NUT

€ 2.50

4233007D00
ref: 6

BRACKET COMP,PROP STAND

€ 71.50

0711008358
ref: 7

BOLT, FRONT RH

€ 4.50

0916408015
ref: 8

WASHER

€ 3.00

0831616088
ref: 9

NUT

€ 2.50

4311017C03
ref: 10

PEDAL,BRAKE

€ 96.50

0916018022
ref: 11

WASHER(18X24X1)

€ 3.00

4356117C01
ref: 12

PLATE,BRAKE SPRING,FRONT

€ 4.50

4356317C01
ref: 13

BRACKET,STOP SWITCH SPRING

€ 8.00

0913906027
ref: 14

SCREW(6X12)

€ 3.00

0944313018
ref: 15

SPRING

€ 4.00

4326117C00
ref: 16

TUBE,BRAKE SPRING GUIDE

€ 5.50

0110405206
ref: 17

BOLT

€ 2.50

0831011057
ref: 18

NUT 5MM

€ 2.50

4210017C00
ref: 19
OPT

STAND ASSEMBLY,REAR

€ 471.00

6116527A30
ref: 20
OPT

HOLDER,STAND

€ 26.50

0711008305
ref: 21
OPT

BOLT, REAR (8X30)

€ 3.00
