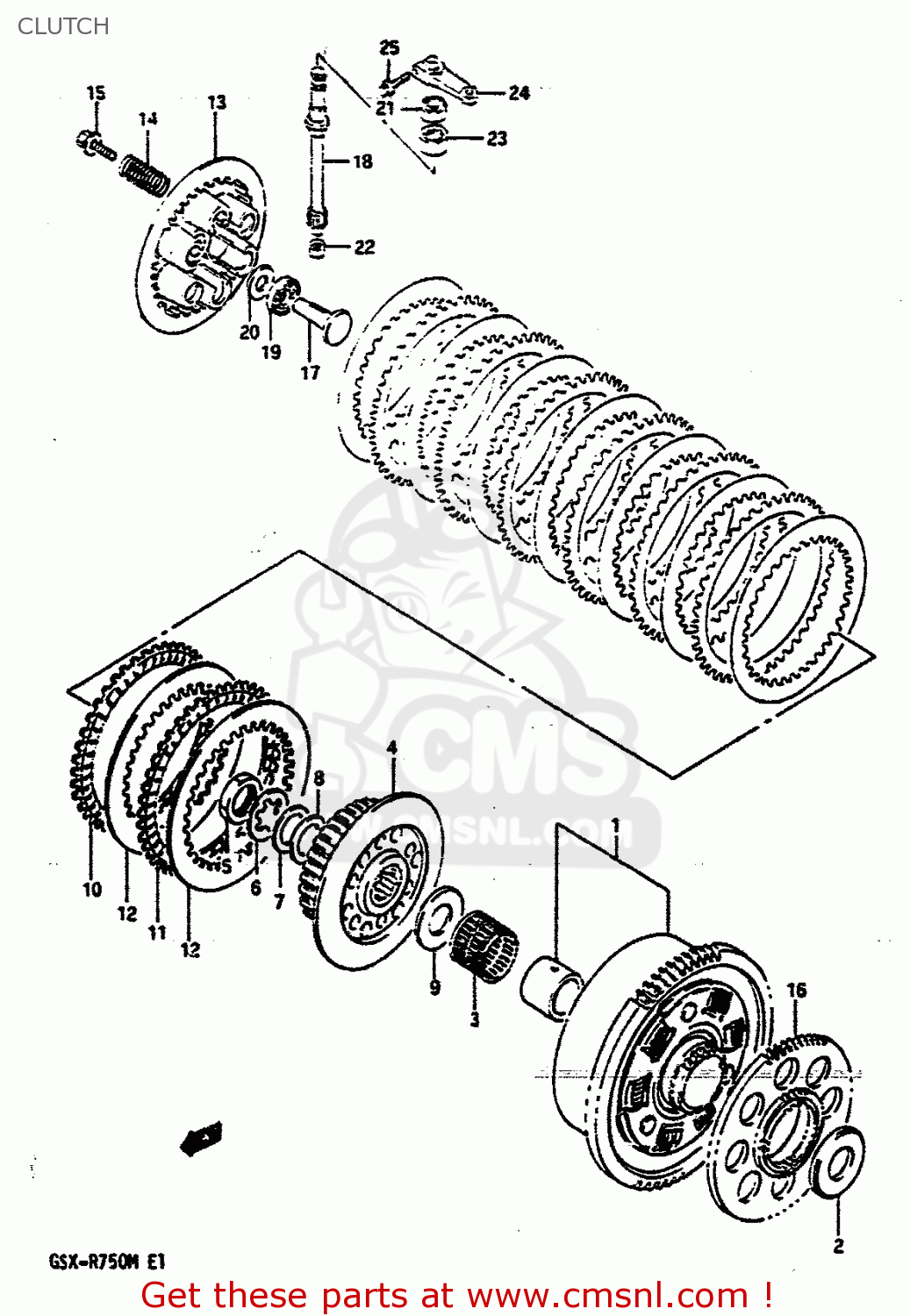

CLUTCH

ref

part #

description

quantity

1

2120007864
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 235.50

2

0916025067
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141017D00
ref: 4

HUB,CLUTCH SLEEVE

€ 101.50

5

0914024012
ref: 5

NUT

€ 6.00

6

0916725007
ref: 6

WASHER,LOCK

€ 7.50

7

0916424006
ref: 7

WASHER

€ 4.00

8

0822125365
ref: 8

SHIM

€ 4.50

9

0916025056
ref: 9

WASHER(25X50X2.5)

€ 9.50

10

2144120C00
ref: 10

PLATE,CLUTCH DRIVE (NAS)

€ 23.50

11

2144217C00
ref: 11

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 19.00

12

2145117C00
ref: 12

PLATE,CLUTCH DRIVEN (NAS)

€ 9.50

13

2146217D00
ref: 13

DISC,CLUTCH PRESSURE

€ 76.00

14

0944020020
ref: 14

SPRING

€ 8.50

15

0911606150
ref: 15

BOLT(6X25)

€ 2.50

16

2272117D00
ref: 16

GEAR,GENERATOR DRIVE

€ 140.00

17

2316507D00
ref: 17

RACK,CLUTCH RELEASE

€ 82.00

18

2326117C00
ref: 18

PINION,CLUTCH RELEASE

€ 38.00

19

0926315003
ref: 19

BEARING(15X28X2)

€ 7.00

20

0916015015
ref: 20

WASHER

€ 4.00

21

0928512002
ref: 21

OIL SEAL

€ 7.00

22

0926310013
ref: 22

BEARING 10X14X10

€ 12.00

23

0926315012
ref: 23

BEARING(15X22X12)

€ 11.50

24

2327117C00
ref: 24

ARM,CLUTCH RELEASE

€ 45.50

25

0154706207
ref: 25

BOLT

€ 2.50
