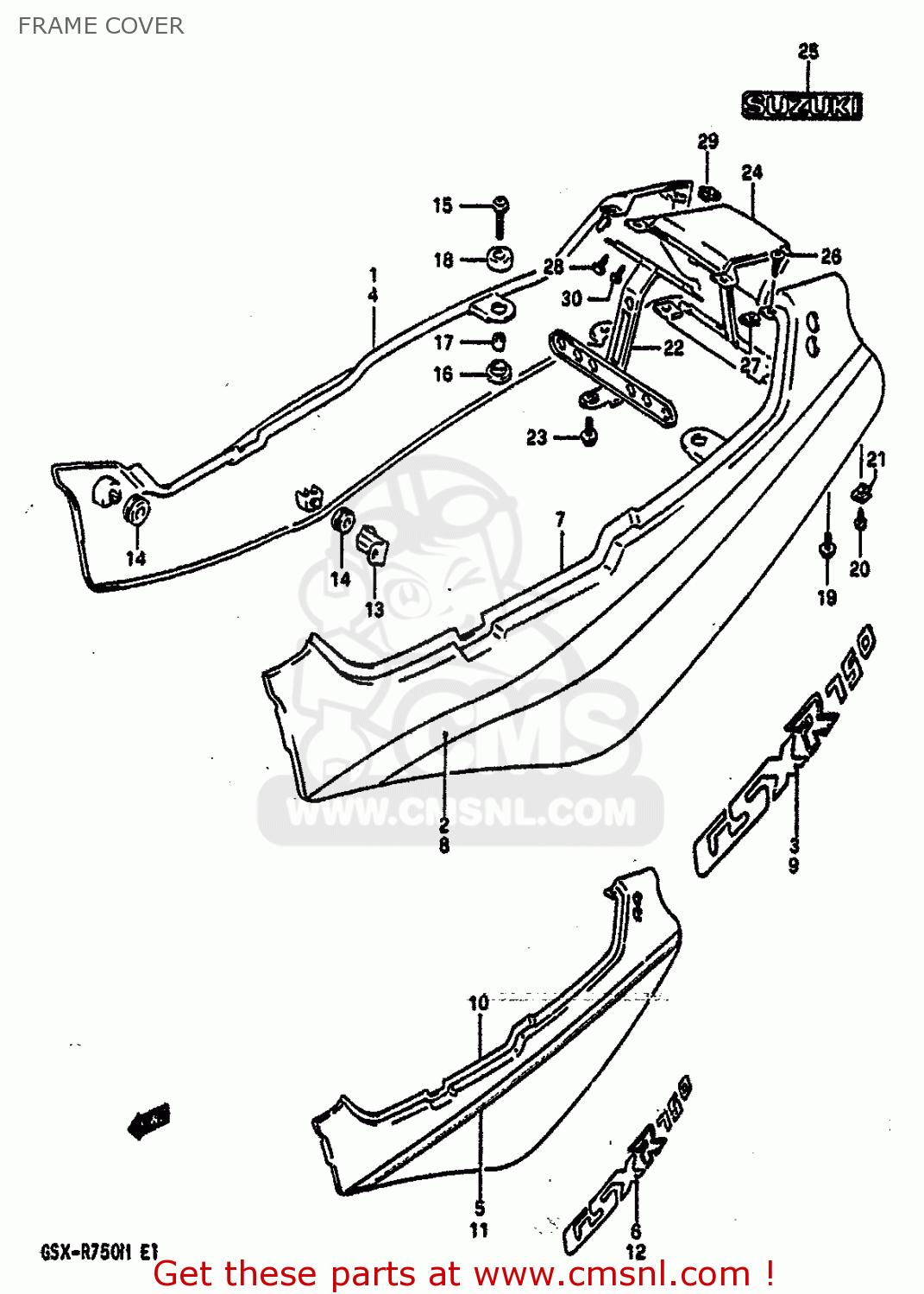

FRAME COVER

ref

part #

description

quantity

1-1

4711018D003SL
ref: 1-1

COVER COMP,FRAME,RIGHT

€ 374.50

1-2

4711018D003RZ
ref: 1-2

COVER,FRAME RH

€ 367.00

1-3

4711018D303SL
ref: 1-3
E15,E16,E17,E18,E21,

COVER,FRAME RH

€ 418.50

1-4

4711018D303RZ
ref: 1-4
E15,E16,E17,E18,E21,

COVER,FRAME RH

€ 418.50

2-1

6813518D010NE
ref: 2-1
FOR 3SL

TAPE,FRAME COVER,RIGHT (BLUE)

€ 36.50

2-2

6813518D01019
ref: 2-2
FOR 3RZ

TAPE,RH

€ 36.50

3-1

6813118D00H04
ref: 3-1
FOR 3SL

EMBLEM,FRAME COVER

€ 23.50

3-2

6813118D003SS
ref: 3-2
FOR 3RZ

EMBLEM,FRAME COVER

€ 23.50

4-1

4711018D103CH
ref: 4-1

COVER,FRAME RH

€ 459.50

4-2

4711018D403CH
ref: 4-2
E15,E16,E17,E18,E21,

4711018D403CH

5

6813518D11H13
ref: 5
FOR 3CH

TAPE,FRAME COVER,R

€ 40.00

6

6813118D00H08
ref: 6
FOR 3CH

EMBLEM

€ 18.00

7-1

4721018D003SL
ref: 7-1

COVER COMP,FRAME,LEFT

€ 364.50

7-2

4721018D003RZ
ref: 7-2

COVER,FRAME LH

€ 418.50

7-3

4721018D303SL
ref: 7-3
E15,E16,E17,E18,E21,

COVER,FRAME,L

€ 424.50

7-4

4721018D303RZ
ref: 7-4
E15,E16,E17,E18,E21,

COVER,FRAME LH

€ 418.50

8-1

6814518D010NE
ref: 8-1
FOR 3SL

TAPE,FRAME COVER,LEFT (BLUE)

€ 36.50

8-2

6814518D01019
ref: 8-2
FOR 3RZ

TAPE,LH

€ 43.00

9-1

6813118D00H04
ref: 9-1
FOR 3SL

EMBLEM,FRAME COVER

€ 23.50

9-2

6813118D003SS
ref: 9-2
FOR 3RZ

EMBLEM,FRAME COVER

€ 23.50

10-1

4721018D103CH
ref: 10-1

COVER,FRAME LH

€ 503.00

10-2

4721018D403CH
ref: 10-2
E15,E16,E17,E18,E21,

COVER,FRAME LH

€ 488.50

11

6814518D11H13
ref: 11
FOR 3CH

TAPE, LH

€ 41.50

12

6813118D00H08
ref: 12
FOR 3CH

EMBLEM

€ 18.00

13

4381541C00
ref: 13

BRACKET,FRAME COVER

€ 8.00

14

0932008018
ref: 14

CUSHION

€ 4.00

15

0913606062
ref: 15

SCREW (6X16)

€ 2.50

16

4532617C00
ref: 16

CUSHION,FRAME COVER LWR

€ 7.00

17

0918006143
ref: 17

SPACER

€ 2.50

18

4514904A00
ref: 18

CUSHION,TAIL COVER UPR

€ 2.00

19

0913606083
ref: 19

SCREW(6X30)

€ 3.00

20

0314114125
ref: 20

SCREW

€ 2.00

21

0914804024
ref: 21

NUT

€ 2.00

22

4741041C00
ref: 22

BRACKET,TAIL LAMP

€ 35.50

23

0911606064
ref: 23

BOLT

€ 1.50

24-1

4731041C000JW
ref: 24-1
FOR 3SL

COVER,FRAME CTR

€ 69.00

24-2

4731041C000LX
ref: 24-2
FOR 3RZ

COVER,FRAME,CT

€ 69.00

24-3

4731041C0033J
ref: 24-3
FOR 3CH

COVER,FRAME COVER,CENTER (

€ 62.50

25-1

68166313000NE
ref: 25-1
FOR 0JW

EMBLEM

€ 7.00

25-2

6816631300019
ref: 25-2
FOR 0LX

EMBLEM

€ 4.00

25-3

681663130013L
ref: 25-3
FOR 33J

EMBLEM

€ 5.00

26

0324115125
ref: 26

SCREW, BRACKET

€ 2.50

27

0914805019
ref: 27

NUT

€ 2.00

28

0324115125
ref: 28

SCREW, BRACKET

€ 2.50

29

0914805038
ref: 29

NUT

€ 2.50

30

0354104125
ref: 30

SCREW

€ 1.50
