GEAR SHIFTING

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

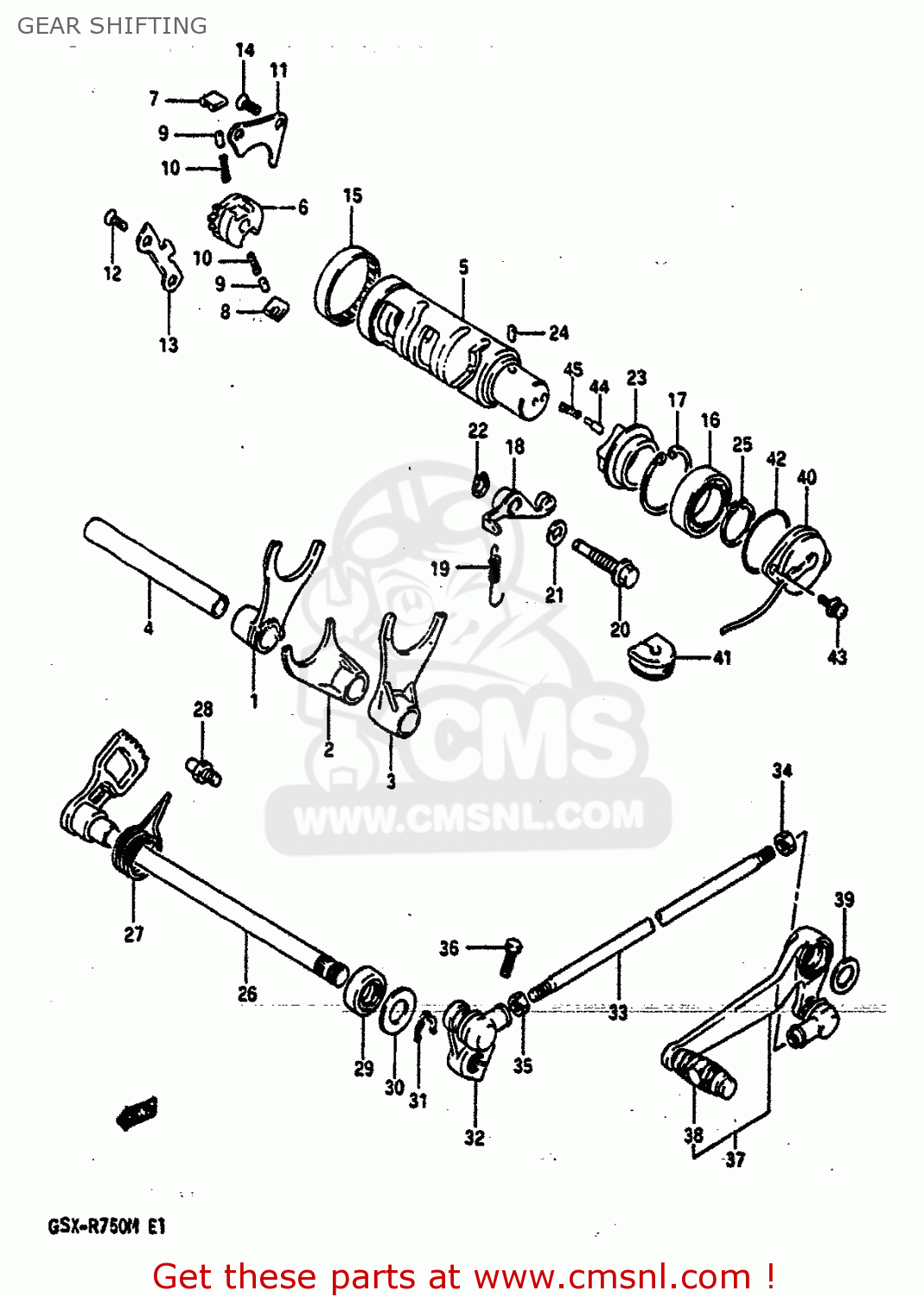

Gear shifting diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

GEAR SHIFTING GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
GEAR SHIFTING GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
GEAR SHIFTING GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
2522127A01
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
2523127A00
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 23.50
5
2531027A02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
2533131301
€ 7.00
12
0212206128
ref: 12
SCREW
0212206128
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
2534127A00
€ 8.50
14
0212206128
ref: 14
SCREW
0212206128
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
0926343001
€ 30.00
16
0811069050
ref: 16
BALL BEARING
0811069050
€ 36.00
17
0833141428
ref: 17
CIRCLIP,42MM
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
2535027A00
€ 13.00
19
0944309033
ref: 19
SPRING
0944309033
€ 7.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
2535327A00
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
22
0833131086
ref: 22
CIRCLIP
0833131086
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
2538138400
€ 22.00
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0833131258
ref: 25
CIRCLIP,25MM
€ 2.00
26
2551019C00
ref: 26
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
0944426017
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
0916012020
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
0938412001
€ 2.00
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
2552019C02
€ 53.50
33
2552517C02
ref: 33
ROD,GEAR SHIFT LINK
2552517C02
€ 14.50
34
0914006011
ref: 34
NUT
0914006011
€ 1.50
35
0831011067
ref: 35
NUT 6MM
€ 2.50
36
0110706257
ref: 36
BOLT
€ 2.00
37
2560017C03
ref: 37
LEVER ASSEMBLY,GEAR SHIFTING
2560017C03
€ 106.00
38
2565216500
ref: 38
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
39
0916018022
ref: 39
WASHER(18X24X1)
0916018022
€ 3.00
40
3772048B00
ref: 40
TERMINAL BASE ASSY,NEUTRAL
3772048B00
€ 57.00
41
3388527A01
ref: 41
GROMMET,LEADWIRE
3388527A01
€ 20.50
42
0928036001
ref: 42
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
43
0913805003
ref: 43
SCREW
€ 1.50
44
0920905011
ref: 44
PIN(5X15.5)
0920905011
€ 2.00
45
0944004010
ref: 45
SPRING
0944004010
€ 1.50
