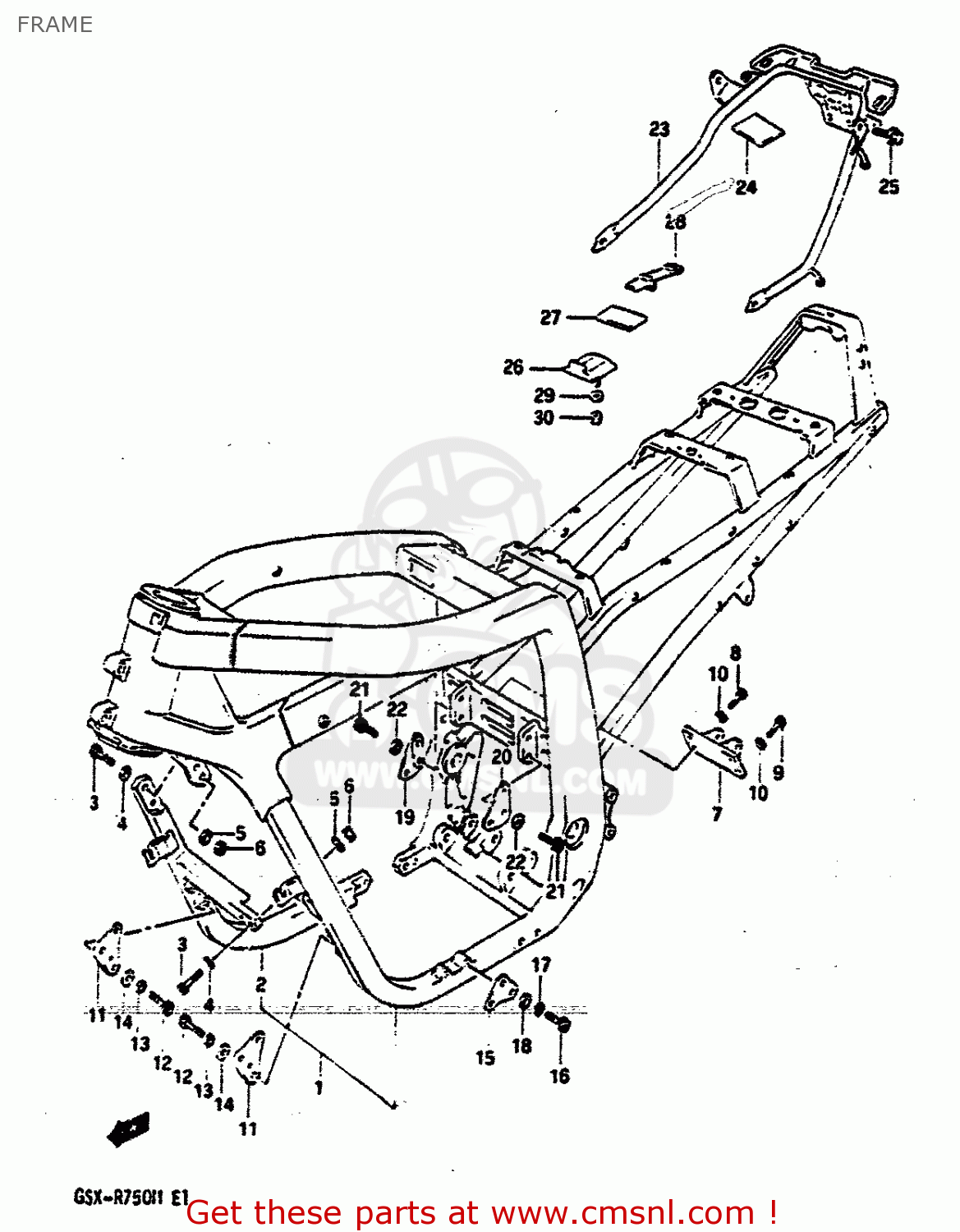

FRAME

ref

part #

description

quantity

1-1

4110018840
ref: 1-1

4110018840

1-2

4110018860
ref: 1-2
E18,E39

4110018860

2

4114017D00
ref: 2

TUBE,FRAME

€ 0.00

3

0711010357
ref: 3

BOLT, LH

€ 3.50

4

0916010013
ref: 4

WASHER (10.1X21X2.3)

€ 2.00

5

0916410005
ref: 5

WASHER

€ 6.50

6

0915910027
ref: 6

NUT

€ 3.00

7

4138417C60
ref: 7

BRACKET,RCU

€ 106.50

8

0910610017
ref: 8

BOLT 10X27

€ 2.50

9

0711010357
ref: 9

BOLT, LH

€ 3.50

10

0916410005
ref: 10

WASHER

€ 6.50

11

4191140C00
ref: 11

PLATE,ENGINE MOUNTING

€ 25.00

12

0711008257
ref: 12

BOLT, FRONT LH

€ 3.50

13

0832131087
ref: 13

WASHER,LOCK

€ 2.00

14

0916008010
ref: 14

WASHER (8.2X20X1.6)

€ 1.50

15

4192117C02
ref: 15

PLATE,ENGINE MOUNT NO.2

€ 17.00

16

0711008257
ref: 16

BOLT, FRONT LH

€ 3.50

17

0832131087
ref: 17

WASHER,LOCK

€ 2.00

18

0916008010
ref: 18

WASHER (8.2X20X1.6)

€ 1.50

19

4194040C01
ref: 19

PLATE,ENGINE MOUNT NO.3,R

€ 15.50

20

4195040C01
ref: 20

PLATE,ENGINE MOUNTING NO

€ 14.00

21

0910608005
ref: 21

BOLT(8X22)

€ 2.00

22

0916008010
ref: 22

WASHER (8.2X20X1.6)

€ 1.50

23-1

4398018D20
ref: 23-1

GRIP COMP,REAR

€ 130.50

23-2

4398018D30
ref: 23-2
E39

GRIP,RR

€ 130.50

24

4188106C00
ref: 24

TAPE,FRAME PROTECTOR

€ 7.00

25

0151708207
ref: 25

BOLT

€ 3.00

26

4155049200
ref: 26

HOLDER,TOOL

€ 10.00

27

4488538A00
ref: 27

CUSHION

€ 3.00

28

0946200093
ref: 28

BAND

€ 8.50

29

0916006006
ref: 29

WASHER

€ 2.00

30

0831921068
ref: 30

NUT 6MM

€ 2.00
