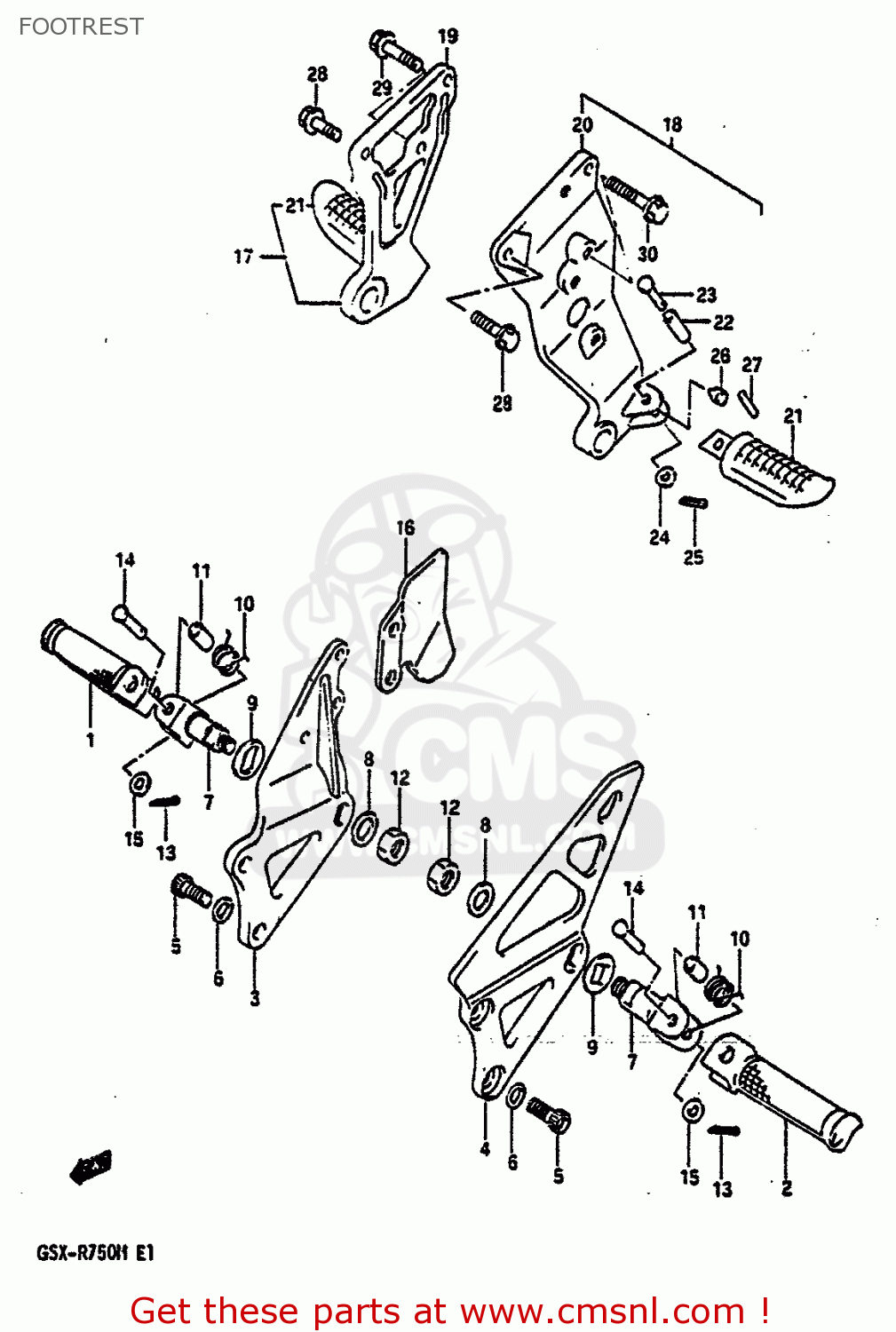

FOOTREST

ref

part #

description

quantity

1

4351117C02
ref: 1

BAR,FOOTREST,R

€ 48.50

2

4352117C02
ref: 2

BAR,FOOTREST,L

€ 48.50

3

4351117D01
ref: 3

BRACKET,FOOTREST,R

€ 133.50

4

4352217D01
ref: 4

BRACKET,FOOTREST,L

€ 131.00

5-1

4352917D00
ref: 5-1

BOLT,FOOTREST BRACKET

€ 5.50

5-2

4352917D10
ref: 5-2

BOLT,FOOTREST BRACKET

€ 3.50

6

0916410010
ref: 6

WASHER

€ 6.50

7

4353017C01
ref: 7

BOSS,FOOTREST

€ 43.00

8

4321317C01
ref: 8

PLATE,FOOTREST INNER

€ 4.50

9

4321417C01
ref: 9

WASHER,FR FOOTREST

€ 52.50

10

0944819020
ref: 10

SPRING

€ 3.50

11

0918008149
ref: 11

SPACER(8.1X12X22)

€ 7.00

12

0831022127
ref: 12

NUT 12MM

€ 3.00

13

0411125158
ref: 13

PIN 20X15

€ 1.50

14

0920008057
ref: 14

PIN

€ 3.00

15

0832211088
ref: 15

WASHER

€ 2.00

16

4358640C01
ref: 16

GUARD,FRONT FOOTREST,RIGHT

€ 50.00

17

4360018D00
ref: 17

FOOTREST ASSY,PILLION,R

€ 200.00

18

4370018D00
ref: 18

FOOTREST ASSY,PILLION,L

€ 190.50

19

4381018D00
ref: 19

BRACKET,PILLION FOOTREST

€ 200.00

20

4382118D00
ref: 20

BRACKET

€ 190.50

21-1

4361132C00
ref: 21-1

BAR,PILLION FOOTREST R

€ 31.00

21-2

4362132C00
ref: 21-2

BAR,PILLION FOOTREST L

€ 31.00

22

0918008149
ref: 22

SPACER(8.1X12X22)

€ 7.00

23

0920008035
ref: 23

PIN

€ 6.50

24

0832211088
ref: 24

WASHER

€ 2.00

25

0411120208
ref: 25

PIN 20X20

€ 1.50

26

4369117C00
ref: 26

CUSHION,FOOTREST HOLDER

€ 6.00

27

4361217D00
ref: 27

ROLLER,FOOTREST HOLDER

€ 2.50

28

0151708254
ref: 28

BOLT

€ 2.50

29

0151708304
ref: 29

BOLT

€ 3.00

30

0151708405
ref: 30

BOLT 8X40

€ 3.50

all assemblies
