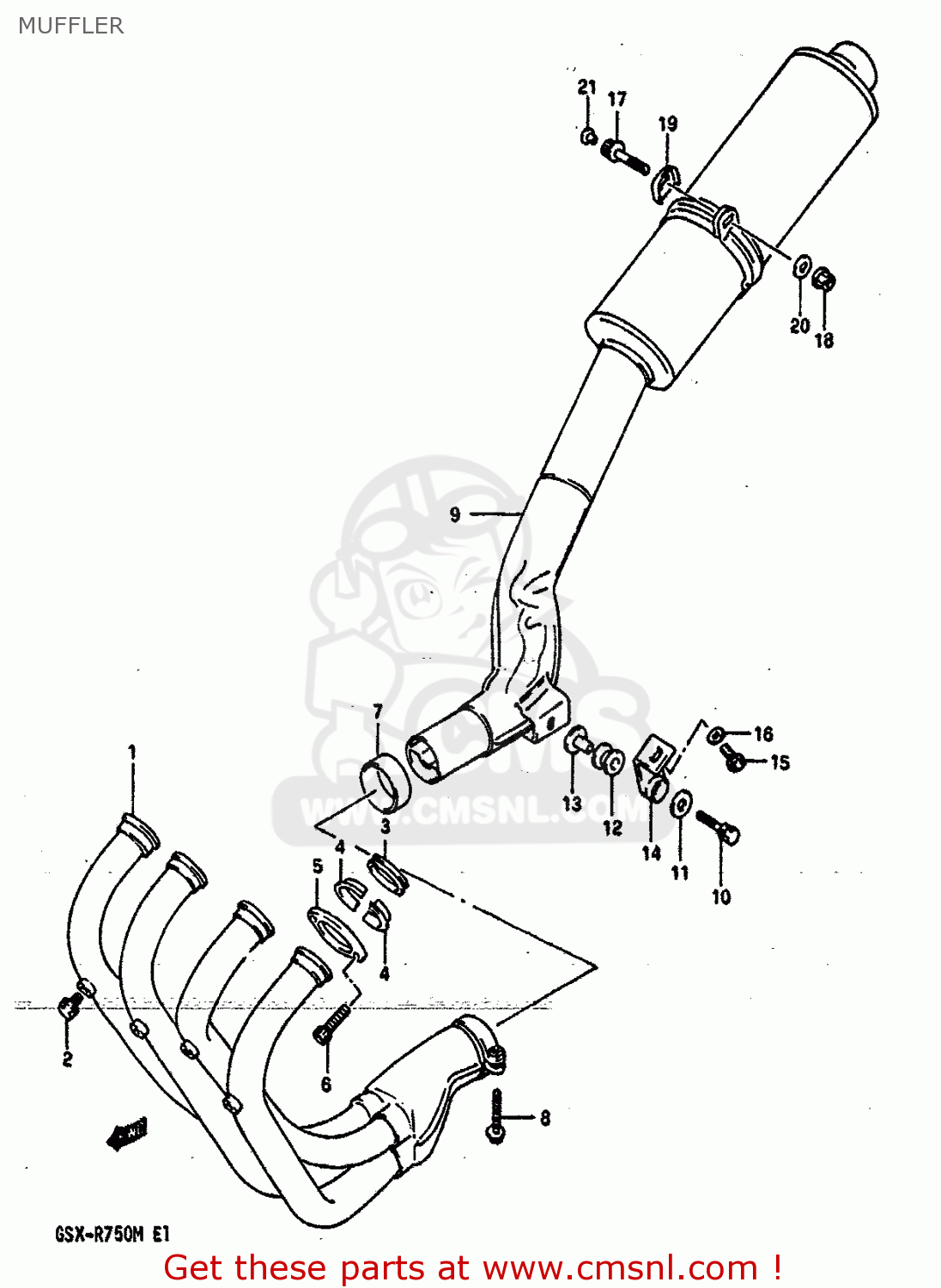

MUFFLER

ref

part #

description

quantity

1-1

1410017D50H01
ref: 1-1

EXHAUST ASSY

€ 611.50

1-2

1410017D60
ref: 1-2
E17

EXHAUST ASSY

€ 0.00

2

0111706105
ref: 2
E17

BOLT, EXHAUST DRAIN

€ 2.50

3

1418118C00
ref: 3

GASKET,EXHAUST (NAS)

€ 6.50

4

1415527A00
ref: 4

PLATE,EXHAUST PIPE

€ 3.50

5

1418227A00
ref: 5

CLAMP,EXHAUST PIPE

€ 35.50

6

0711008255
ref: 6

BOLT

€ 3.50

7

1477107D00
ref: 7

CONNECTOR,MUFFLER

€ 33.50

8

0151708457
ref: 8

BOLT 8X45

€ 4.00

9-1

1430517D00
ref: 9-1

BODY,MUFFLER

€ 933.50

9-2

1430517D10
ref: 9-2
E2,E4,E15,E16,E18,E2

BODY,MUFFLER

€ 933.50

9-3

1430517D21
ref: 9-3
E17

BODY,MUFFLER

€ 843.50

10

0911708026
ref: 10

BOLT 8X35

€ 6.50

11

0916008069
ref: 11

WASHER

€ 3.50

12

0932012038
ref: 12

CUSHION

€ 52.00

13

0918008157
ref: 13

SPACER(8.6X12X18.5)

€ 5.50

14

1477007D01
ref: 14

DAMPER COMP,MUFFLER SUPPORT F

€ 24.00

15

0910008240
ref: 15

BOLT(8X20)

€ 3.50

16

0832211084
ref: 16

WASHER

€ 1.50

17

0712010407
ref: 17

BOLT

€ 4.50

18

0831616105
ref: 18

NUT

€ 2.00

19

1441217D00
ref: 19

WASHER,MUFFLER SUPPORT

€ 7.00

20

0916010066
ref: 20

WASHER (10.5X24X2.3)

€ 2.00

21

0925008012
ref: 21

CAP(OD:12)

€ 2.00
