Buy Suzuki GSXR Parts Online


TURNSIGNAL LAMP

GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

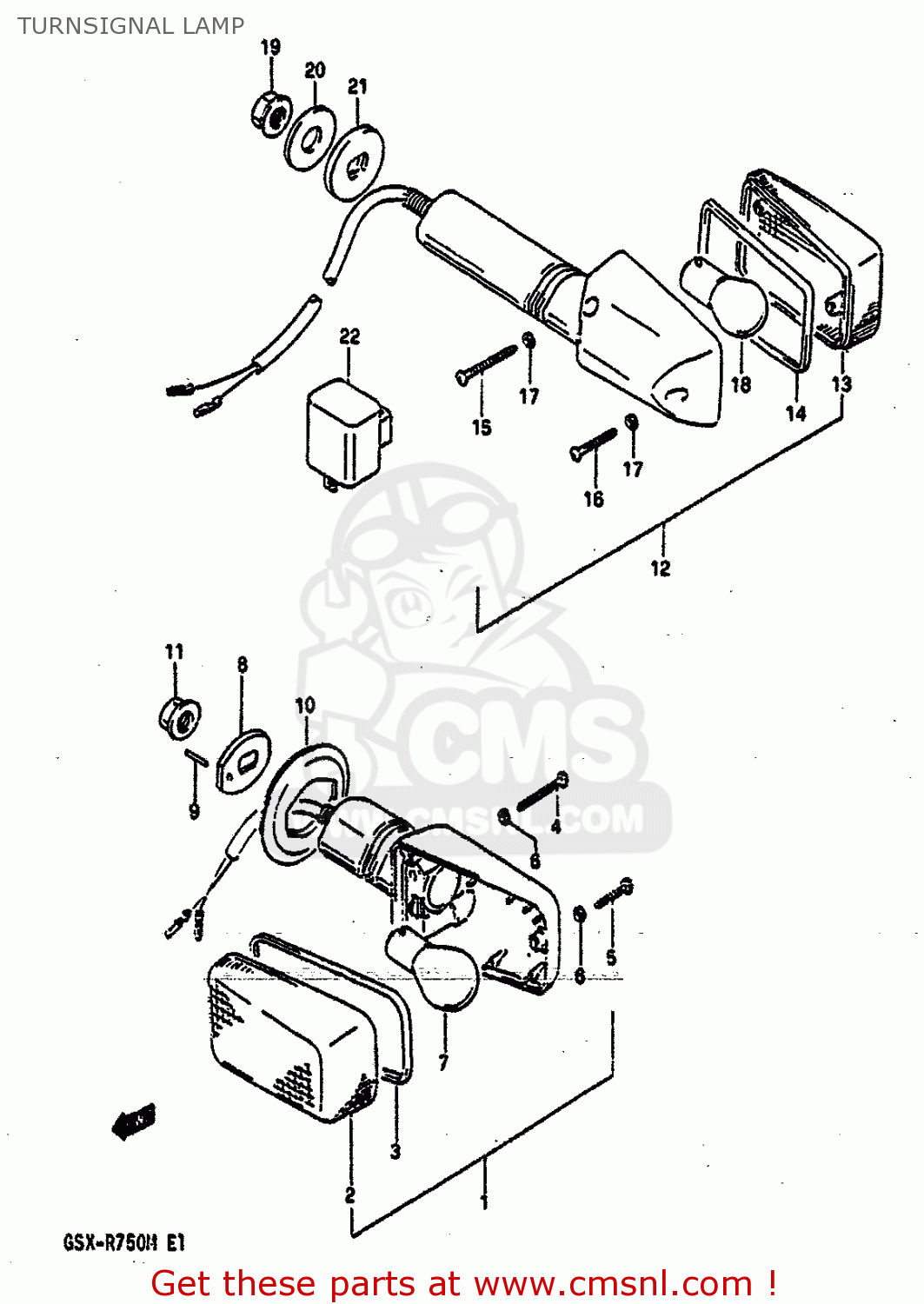

Turnsignal lamp diagram GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

TURNSIGNAL LAMP GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
TURNSIGNAL LAMP GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
TURNSIGNAL LAMP GSXR750 1991 (M) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3560112C11
ref: 1-1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 81.00
1-2
3560117C31
ref: 1-2
E16,E18
LAMP ASSY,FRONT TURNSIGNAL
€ 112.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3569518D00
ref: 8
E16,E18
SPACER,FRONT TURN
€ 0.00
9
0920204008
ref: 9
E16,E18
PIN(4X9)
0920204008
€ 2.00
10
3567427A01
ref: 10
GROMMET
3567427A01
€ 13.50
11
0831626105
ref: 11
NUT
0831626105
€ 3.50
12-1
3560317C41999
ref: 12-1
LAMP ASSY,RR TURNSIGNAL
3560317C41999
€ 76.00
12-2
3560317C51999
ref: 12-2
E15
LAMP ASSY,RR TURNSIGNAL
3560317C51999
€ 68.00
13
3561217C20
ref: 13
LENS
3561217C20
€ 6.50
14
3561327A00
ref: 14
GASKET (NAS)
3561327A00
€ 3.00
15
3562327A00
ref: 15
SCREW(3X30)
3562327A00
€ 1.50
16
3572540511
ref: 16
SCREW
3572540511
€ 1.50
17
3562727A02
ref: 17
GASKET (NAS)
3562727A02
€ 1.50
18
0947112045
ref: 18
BULB(12V21W)
0947112045
€ 5.00
19
0831626105
ref: 19
NUT
0831626105
€ 3.50
20
0916010094
ref: 20
WASHER(10.5X30X3.2)
0916010094
€ 3.50
21
3569517C00
ref: 21
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
22-1
3861031310
ref: 22-1
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22-2
3861045091
ref: 22-2
E22
RELAY ASSY,TUR
€ 67.50
